Description

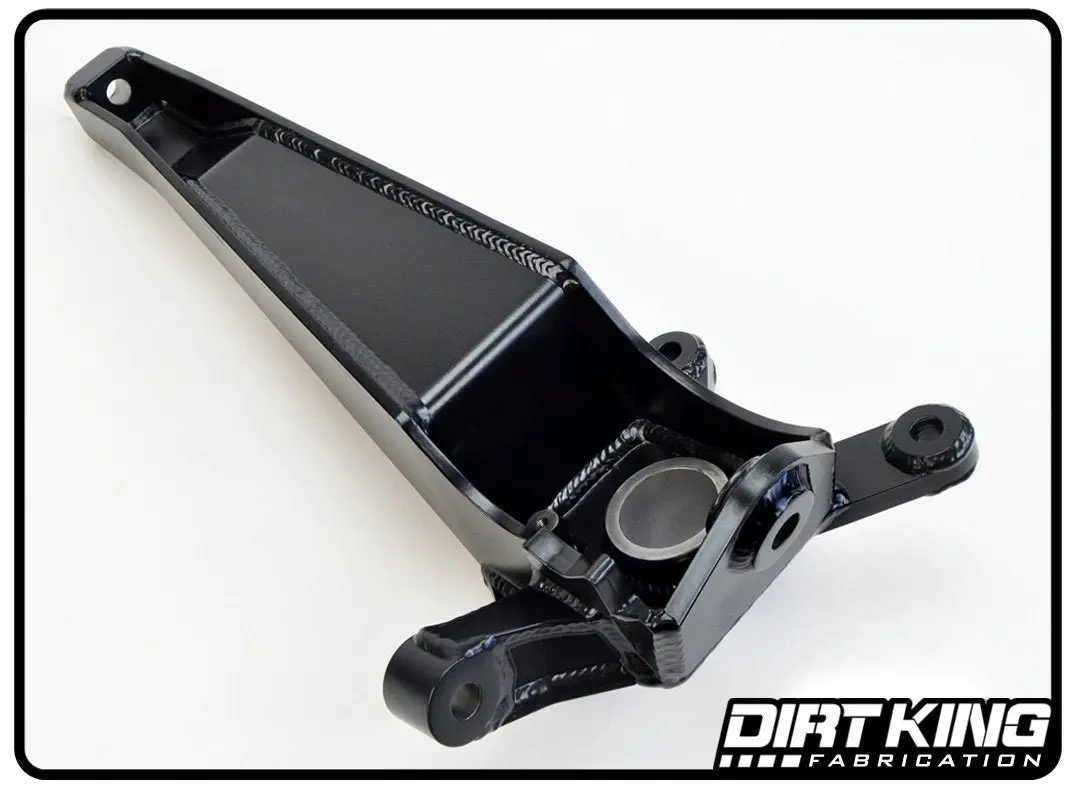

DK-922906-The Dirt King Fabrication for the 2004-2008 2WD Ford F150 fabricated lift spindles raise the front end a true 3.5″ without compromising the ride quality. These spindles are currently the only lift spindles available for the 2004-2008 F-150’s that accept both factory or aftermarket upper and lower control arms. The spindles are the CAD designed and constructed from 1/4″ thick steel plate.
KEY FEATURES:
- Direct bolt on application
- CAD designed
- Professionally MIG welded
- Proudly made in the USA
WHAT’S INCLUDED:
- Fabricated lift spindles
- Extended DOT approved brake lines
- Brake line mounting brackets
- Grade 10.9 caliper mounting bolts
- Upper control arm washers
SPECS:
- Amount of Lift: 3.5”
- Track Width: 1.75″ wider per side
- Maximum Tire Size: 35”
- Maximum Backspacing: 5.25”
- Minimum Rim Size: 17”
Track Width: The Dirt King lift spindles increase the track width 1.75” per side. Due to the increased width wider fiberglass fenders may need to be installed.
Tire Info: If installing 35” tires modifications to the wheel wells and bumper may need to be made for proper tire clearance.
