Description

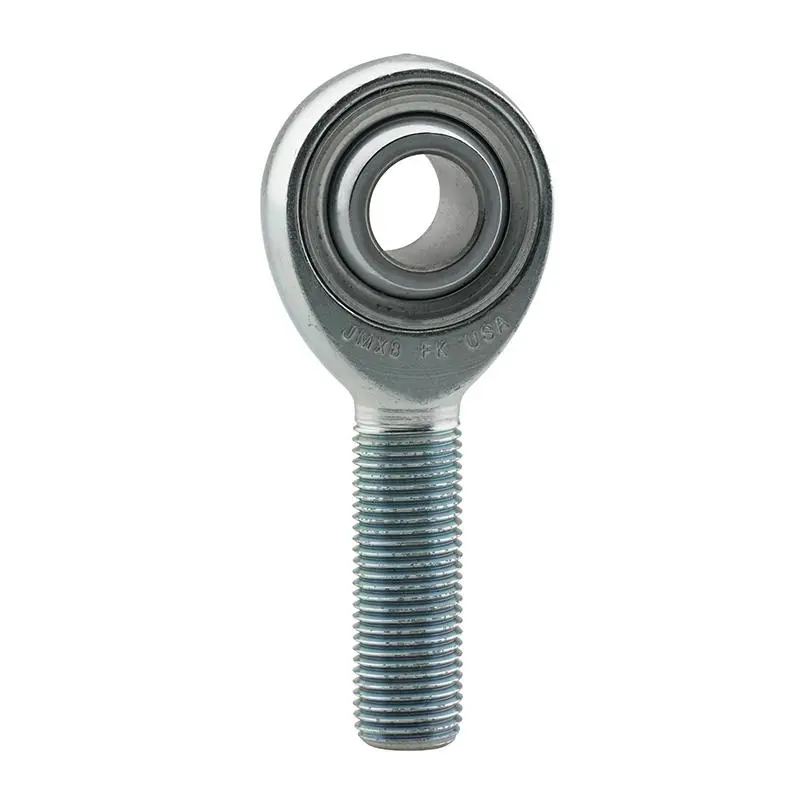

FK JMX/JMXL Series 3-piece rod ends are precision-built for high strength. The bodies and races are heat-treated steel alloy that is zinc plated and chromate treated for corrosion resistance. The ball is hard chrome plated 52100 steel offering excellent wear and durability. These rod ends are available in several choices with right (JMX) or left (JMXL) hand threads.
KEY FEATURES:
- Rod End Thread Size: 3/8-24 RH in.
- Rod End Attachment: Male threads
- Rod End Construction: 3-piece
- Rod End Style: Metal to metal
- Jam Nut Included: No
- Thread Length: 1.250 in.
- Rod End Head Bore Size: 0.375 in.
- Rod End Head Diameter: 1.000 in.
- Rod End Head Width: 0.406 in.
- Grease Fitting: No
- Rod End Centerline Length: 1.938 in.
- Heat-Treated: Yes
- Rod End Ball Width: 0.500 in.
- Rod End Misalign Angle (degrees): 12 degrees
- Rod End Static Load Capacity: 4,012 lbs.
- Rod End Material: Low carbon steel
- Rod End Finish: Natural
- Quantity: Sold individually.
