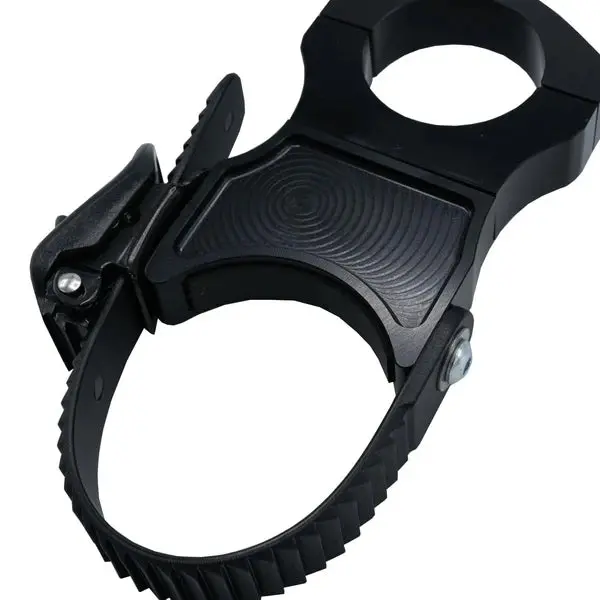

AGM Quick-Release Chassis Tube Mounting Bracket

Description

Description:

Looking for a simple and quick way to mount your AGM Jack (or other components 1 inch to 2.5 inches in diameter) to a chassis tube. The Quick Clamps are the answer. Install in minutes with Allen wrenches. No welding required.

NOTE: YOU NEED 2 IF YOU ARE PURCHASING TO MOUNT AN AGM JACK.

Factory UTV roll cage reference

Can-Am:

X3- 1.875 inch Quick Clamp (Main roll cage running tubes front to rear and b-pillar cross bar – 1.860 inch actual.)

Maverick-R- 1.875 inch Quick Clamp (Main roll cage running tubes front to rear and b-pillar cross bar – 1.860 inch actual.) or  2.0 inch Quick Clamps if you would like to clamp on the cross bar at the rear roof.

Honda:

Talon- 2.0 inch Quick Clamp (Main roll cage tubes running front to rear – 2.01 inch actual.)

Kawasaki:

Teryx KRX- 1.750 inch Quick Clamp. (Main roll cage tubes running front to rear – 1.760 inch actual.)

Mule (most models)- 1.750 inch Quick Clamps, but may require sanding to clamps to fit as main roll cage measures slightly oversized at 1.765-1788 inches.

Polaris:

XP1000-  1.750 inch Quick Clamp. (Main roll cage tubes running front to rear and c-pillar cross bar – 1.760 inch actual.)

Turbo S- 1.750 inch Quick Clamp (Main roll cage tubes running front to rear and c-pillar cross bar – 1.760 inch actual.)

Pro XP- 2.0 inch Quick Clamp. (Main roll cage tubes running front to rear – 2.01 inch actual.) 1.750 inch Quick Clamp. (for b-pillar cross tube mounting on 4 seat cars)

Pro R- 2.0 inch Quick Clamp. (Main roll cage tubes running front to rear – 2.01 inch actual.)
