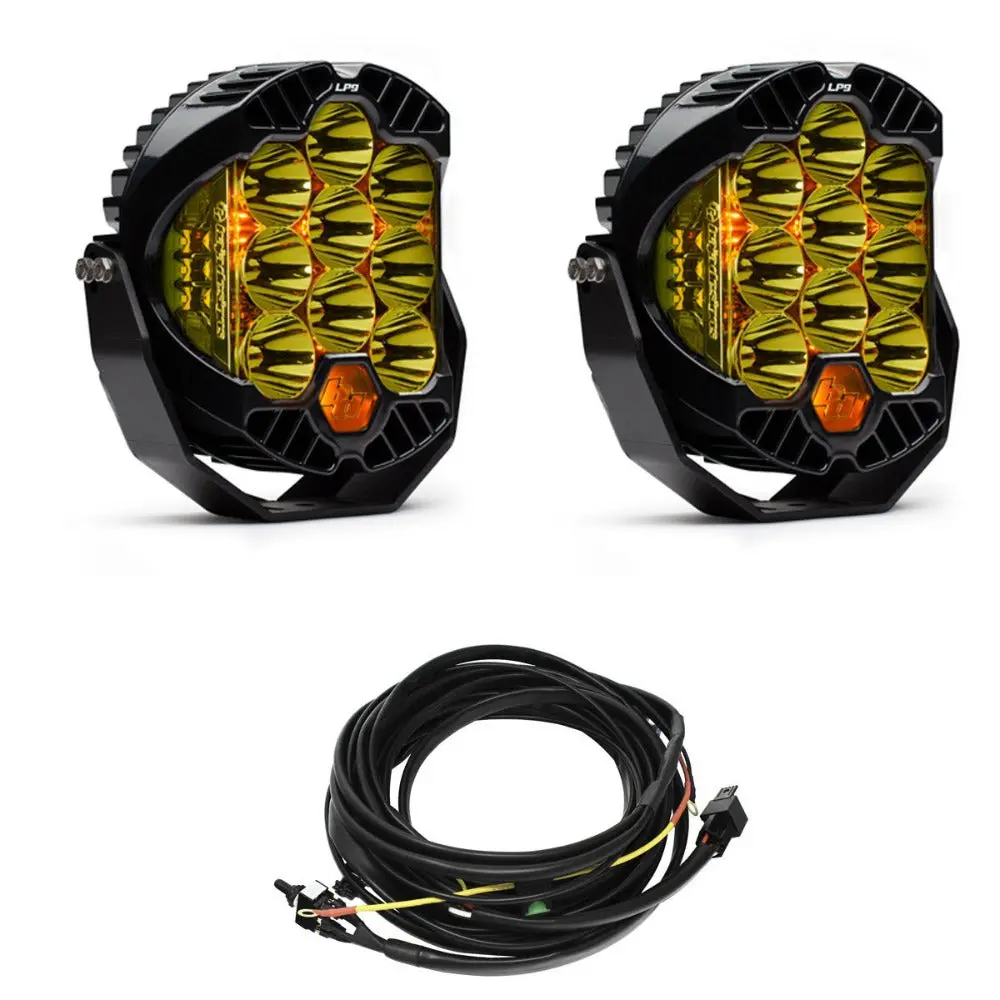

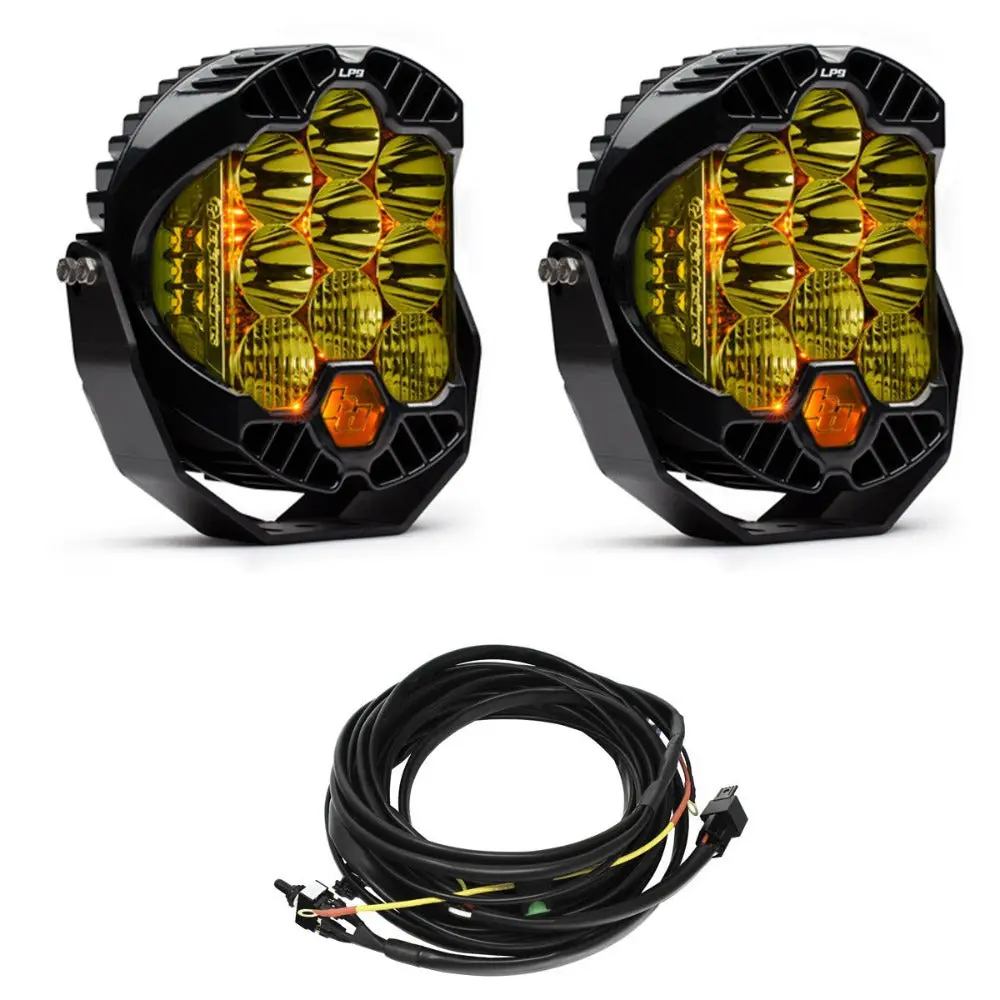

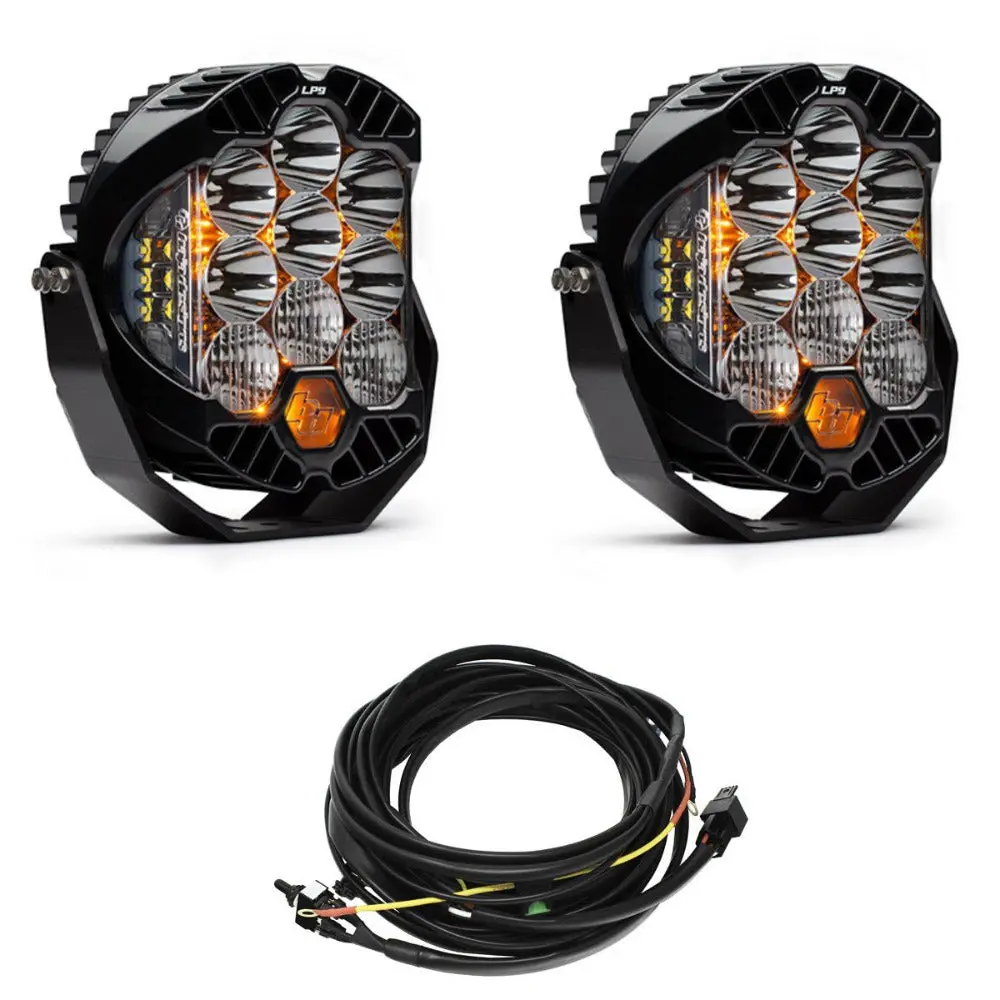

Baja Designs LP9 Pro LED Light Kit – Dual Setup

Description

a top choice for various lighting needs

Inspired by the iconic 8″ La Paz HID, Baja Designs introduces the LP9 Pro, blending modern aesthetics with cutting-edge LED technology. This light boasts a powerful output and wide-angle visibility, making it a top choice for various lighting needs.

What’s Included:

• 2 x Baja Designs LP9 Pro Lights
• Wiring Harness (640172)

Specifications:

• Forward Projecting Lumens: 11,025 (using 9 LEDs)
• Forward Projecting Wattage/Amps: 105W / 7.6A
• IPT Lumens: 2,280 (using 6 LEDs)
• IPT Wattage/Amps: 21W / 1.52A
• Backlight Wattage/Amps: 2.8W / 0.2A

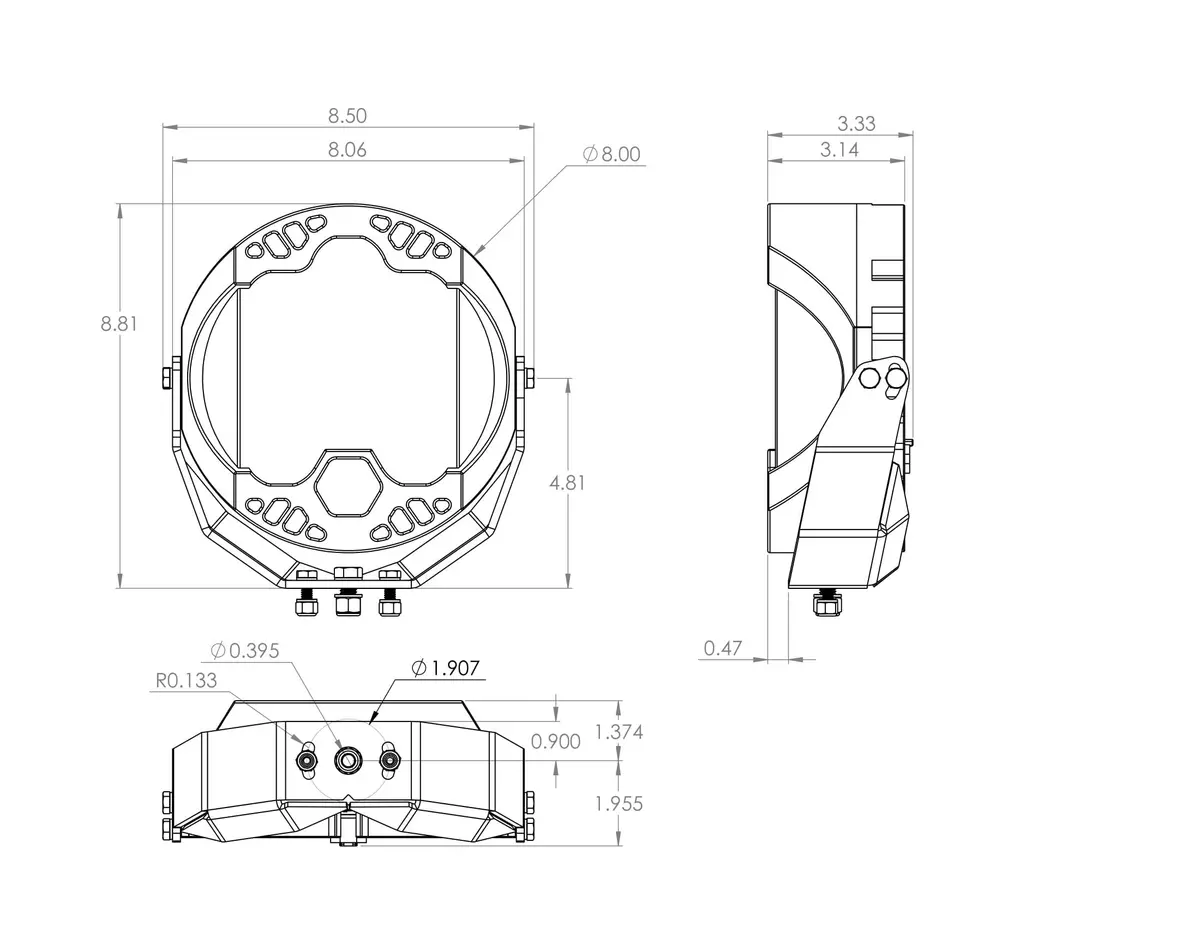

• Dimensions: 8″ Diameter x 3.25″ Depth
• LED Life Expectancy: Approximately 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Aluminum
• Bezel: Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K Rating: Waterproof up to 9ft & Pressure Washable
• IK10 Compliant: Mechanical Impact Testing

Beam Pattern:

• Driving/Combo: Offers maximum trail coverage with both Wide Driving (42°) and Spot (6°) optics, ensuring a balanced light spread for near and distant illumination.
• High Speed Spot: Features a focused, narrow 6° beam for long-range visibility, best used in conjunction with additional Wide Driving and/or Driving/Combo lights.

Product Options:

• Part Number: 320001, Clear Lens, Spot
• Part Number: 320003, Clear Lens, Driving/Combo
• Part Number: 320011, Amber Lens, Spot
• Part Number: 320013, Amber Lens, Driving/Combo

The LP9/LP6 Pro Harness (640172) Includes:

• Wiring harness with plug-and-play Deutsch connectors
• Built-in splitter for two LP9 or LP6 lights
• Large automotive-style ring terminals
• 3-position, 30amp DC rated, DPDT switch for independent high/low beam operation
• Extra wire lead with splice connector for amber DRL
• 20A/40A relay & 30 amp inline fuse
• 12-foot length from battery to instrument cluster
• 15-foot length from instrument cluster to light mounting location
