Description
long travel kit for the 2000-2006 Toyota Tundra

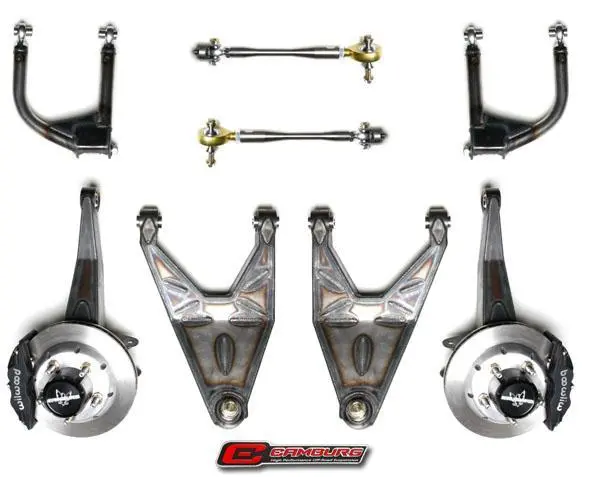

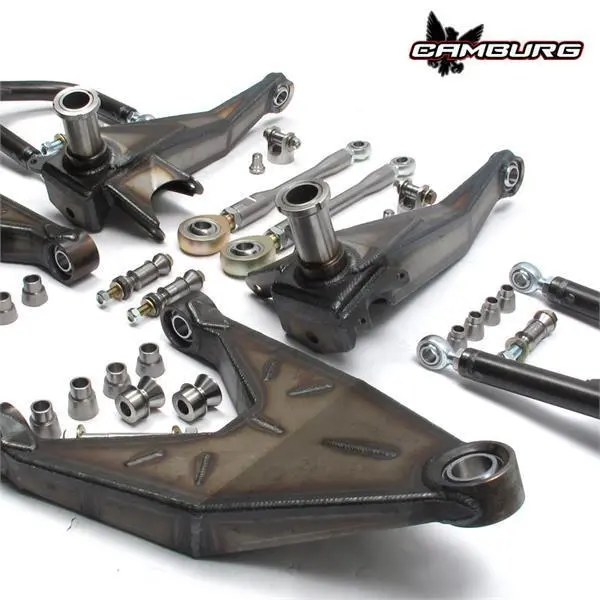

The Camburg Engineering race long travel kit for the 2000-2006 Toyota Tundra is capable of 18-20″ of wheel travel. With billet 2.0 race hubs, Wilwood disk brakes, custom fabricated spindles, and lower A-arms with 1″ uni-ball frame pivots and 1.5″ lower uni-ball for the ball joint, and full heim steering kit.
SPECS:
- LIFT: 3-5 in (front)
- WHEEL TRAVEL: 16-20 in
- TRACK WIDTH: +5 in per side
- WHEEL SIZE: 15-17 in
- MAX BACKSPACING: 15 in = 3.50 in | 17 in = 4.75 in
- TIRE SIZE: 35 in
WHAT’S INCLUDED:
- Heim tubular 4130 upper arms
- Fabricated spindles w/ Camburg 2.0 spindle snouts
- Camburg 2.00 billet hub kit
- Boxed lower arms
- Full heim steering
- Wilwood forged superlite 4 piston calipers w/ BP-20 pads
- Wilwood 12″ x 1.25″ vented rotors
- All heims, Uniballs and hardware
TECH INFO:
- Single Rate Coilover in stock bucket = 16 of wheel travel
- Dual Rate Coilover with custom engine cage = 17-20 of wheel travel
- Trackwidth = 91 (outside of tire to outside of tire with KMC
- Enduro Bead-Locks 35 tires on 17 x 8.5 wheels with 4.75 of backspacing)
