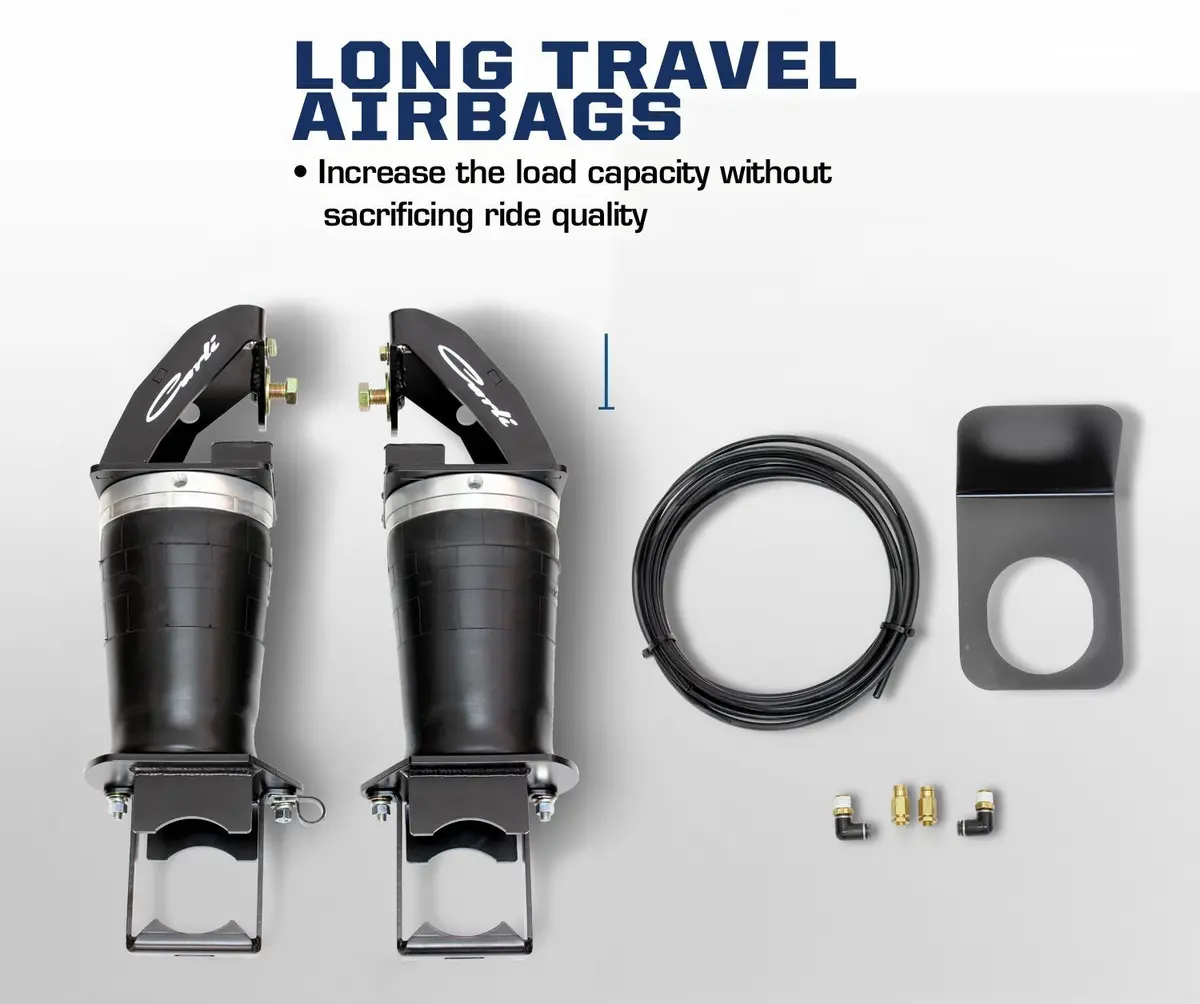

Carli Suspension Long-Travel Air Bag Kit for 2005–2016 Ford F-250 and F-350

Description

Carli Suspension’s Long Travel Air Bags for the 2005-2016 Ford F250 and F350 equipped with a 4.5″ Lift are designed to increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort.

Double Bellow Airbags are restrictive to ride quality and travel of the rear suspension; Enter Carli Long Travel Airbags. Carli combined tapered billet pistons and rolling sleeve design to maximize the travel and ride quality by minimizing the exponential spring rate increase associated with aftermarket airbags. The airbags are rated to 2,000lbs. each at 100psi with a normal operating range of 5-75psi while supporting up to 12 inches of suspension travel.

KIT FEATURES:

Carli’s Long Travel Air Bag Kits are vehicle specific by year.

• 2005-2007 FORD F250/F350 LONG TRAVEL AIR BAG KIT-4.5″ LIFTS-CS-FLTB-05
• Supports up to 12 inches of travel
• Compatible with rear lifts that level to a 4.5″ Front Suspension System ONLY
• Restore Factory Payload to Full Progressive Springs
• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
• Use Manually (included) or with onboard air System (1/4″ airline compatible)
• Fitment: 2005-2007 F250/F350 4×4 with 3.5″ Axle Tube

• 2008-2016 FORD F250/F350 LONG TRAVEL AIR BAG KIT-4.5″ LIFTS-CS-FLTB-08
• Supports up to 12 inches of travel
• Compatible with rear lifts that level to a 4.5″ Front Suspension System ONLY
• Restore Factory Payload to Full Progressive Springs
• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
• Use Manually (included) or with onboard air System (1/4″ airline compatible)
• Fitment: 2008-2016 F250/F350 4×4 with 3.5″ Axle Tube

TECH INFO:

• Ford Long travel airbags will ONLY work with 2″ of rear lift on an F350 or 3″ on an F250! These cannot be used on a stock height truck!
• Carli Ford Super Duty Airbag Kits will only fit 2005-2016 F250/F350 with the 3.5″ axle tube.

KIT DETAILS:

The extended and collapsed dimension combined with ride height piston-depth makes these airbags compatible ONLY with our 4.5″ Lifts, unfortunately. Everything is included to set these up for manual fill but we provide industry standard 1/4″ airline to plumb these into your existing air system if desired.

Increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort. Our airbags work with up to 12″ of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated up to 4,000lbs of capacity at 100 psi (rated to 2,000lbs each) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.
