Description
Description:
CST is proud to announce our 8″ Suspension Systems for the 2020+ Chevy & GMC HD Trucks. This new kit will provide superior performance on or off road. 1-Piece Sub frames are designed to give you the most ground clearance while protecting vital front suspension components. The front spindles welded and fabricated from laser cut and precision materials. All of CST products are precision fabricated in house to provide strength and durability. CST Performance Suspension products are designed & manufactured in the USA!
KIT FEATURES:
- MINIMAL TRACK-WIDTH CHANGES
- NO NEED TO CUT/MODIFY THE FACTORY TORSION X-MEMBER
- SUPERIOR CONTROL ARM, CV & TIE ROD ANGLES
- HIGH CLEARANCE, FULLY REINFORCED ONE-PIECE SUB-FRAME
- FULLY BOXED X-MEMBER TO DROP THE DIFFERENTIAL (see photos)
- CST CENTER-LINK w/ HEIM SUPPORTS INCLUDED FOR ADDITIONAL STEERING SUPPORT & STRENGTH
- HAND FABRICATED KNUCKLES
- KIT INCLUDES STEEL LOWER SKID PLATE TO PROTECT FRONT DIFF
- INCREASED SUSPENSION TRAVEL, TIRE & GROUND CLEARANCE
- GM STAILITRAK APPROVED
- PARTS COVERED IN A HIGH-QUALITY GLOSS BLACK POWDER COAT FINISH
- NO WELDING REQUIRED
- REDUCED INSTALL TIME WHEN COMPARED TO OTHER MANUFACTURERS KITS
- CST SUPERIOR QUALITY FIT, FUNCTION AND FINISH
- KIT INCLUDES SOFT-RIDE REAR LEAF SPRINGS
- ABILITY TO PUT BACK TO STOCK
- NO NEED FOR CV SPACERS
- LEVEL STANCE WITHOUT SACRIFICING RIDE QUALITY
- CLEARS UP TO 40″ TIRES
- MADE IN THE U.S.A.
- SHOCKS ARE DESIGNED & BUILT IN HOUSE BY CST FOR BEST OVER-ALL RIDE
- CST 2.5 SHOCKS
- HAND-FABRICATED FRONT SHOCK MOUNTING KIT
WHEEL AND TIRE FITMENT:
- 5″ MAX BACK SPACING
- WHITE TRUCK SHOWN WITH 38-13.5 24×12 W/ 4.75BS

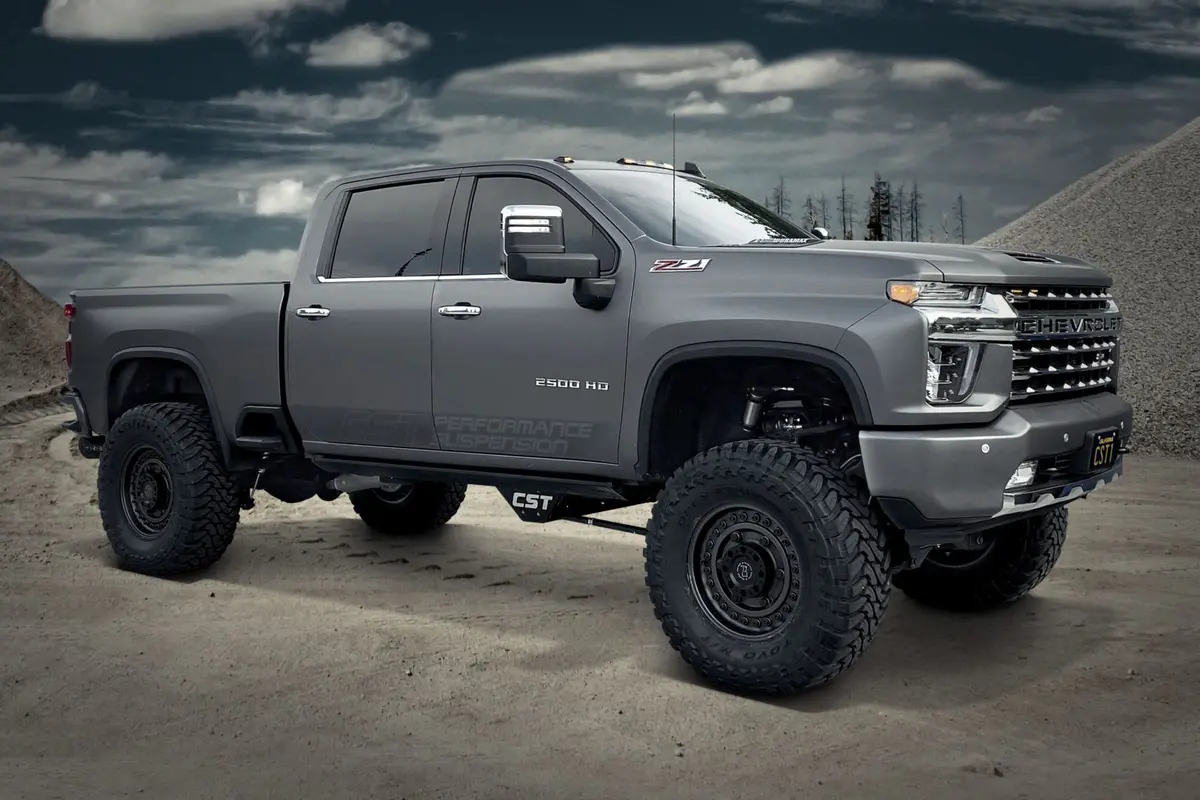

- GRAY TRUCK SHOWN WITH 40-15.5 20×9 W/ 5″ BS
- BOTH REQUIRED MINOR TRIMMING
NOTES:
- CSL-C19-5 ARE SOFT RIDE REAR LEAF SPRINGS, NOT DESIGNED FOR TOWING. AIR BAGS RECOMMENDED
- CSP-C28-8 NEEDED FOR 4WD TO WORK
