Fox’s bolt-on Factory Race Series Coil-over Reservoir shocks for the 2007-2018 Chevy/GMC 1500 provide improved damping in any terrain.Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.
KEY FEATURES:
- Body: 2.5” smooth bore zinc plated seamless steel body
- Body Plating: Zinc-plated and double-clear coated for long lasting finish
- Reservoir: 2.5″ Smooth bore and honed seamless alloy reservoir
- Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Spring: Application specific, adjustable 3.0 Eibach® racing springs
- Shaft: 7/8″ hard chrome plated steel shafts
- Piston: 6061-T6 hard-anodized, high flow aluminum piston
- Valving: Application specific valving to maximize performance
- Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
- Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Bearing: PTFE-lined, heat-treated, alloy steel spherical
- Adjustments: Ride height preload ring
- Top Mount: OEM
- Bottom Mount: Eyelet

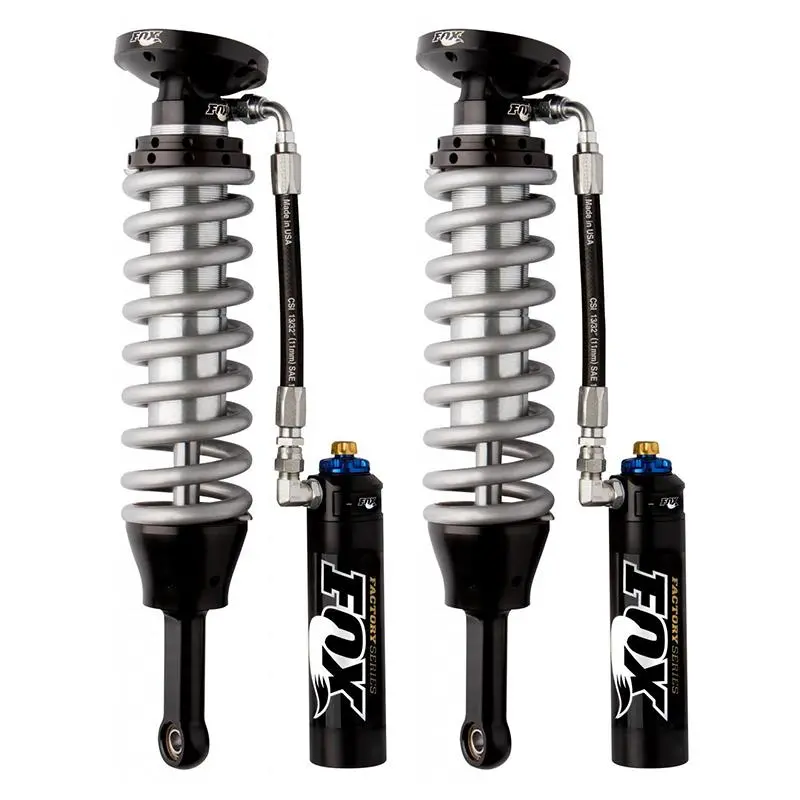

DSC (DUAL SPEED COMPRESSION) ADJUSTER FEATURES:
Add remarkable versatility and precise tuning with new DSC. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.
SPECS:
| Lift Height (in.) | Travel (in.) | Compressed (in.) | Extended (in.) |
| 0-2″ | 4.440″ | 14.900″ | 19.340″ |
| 0-3″ | 5.355″ | 14.980″ | 20.335″ |
