High-performance long-travel suspension kit designed for 2010–2014 Toyota FJ Cruisers, featuring a 3.5-inch lift and race-tuned components for enhanced off-road capability and durability.

Description

PRODUCT OVERVIEW:

This Long Travel Kit for the 2010-2014 Toyota FJ Cruiser is 100% chromoly constructed and offers maximum ground clearance.

SPECS:

KEY FEATURES:

• 3.5″ extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
• Upper and lower ball joints are replaced with 1″ uniballs for maximum wheel travel and component strength. TOTAL CHAOS includes 1″ I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball’s also features a military grade PTFE woven fabric liner that helps prevent noise.

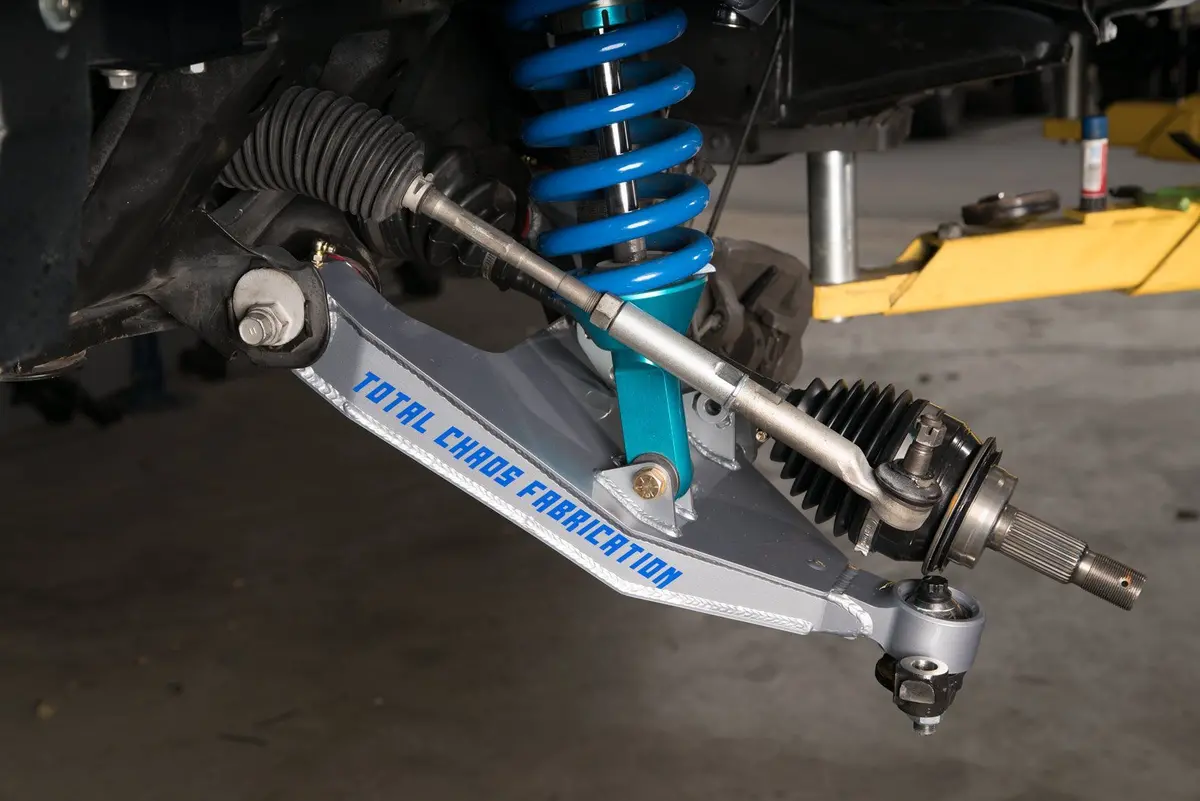

• 4130 chromoly boxed and internally gusseted 3.5″ extended lower control arms bolt to factory control arm mounting locations and are pre tabbed for dual shock capability.
• Lower control arms feature an integrated uniball cup that provides 2.5″ additional ground clearance when compared to the standard mild steel +3.5″ LT kit.
• Lower arms are 5 pounds lighter each side than the standard +3.5″ LT kit.
• A secondary external bypass shock can be installed to increase dampening and tune-ability.
• Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
• Adjustable limit strap clevis’ are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
• DOT approved stainless steel braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and grade 8 mounting hardware is included.
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Hand crafted in the U.S.A.

OPTIONAL HEIM PIVOT UPGRADE:

• TC includes 3/4″ chromoly lined heim joints for the pivots.
• 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
• Zero bushing deflection.

TECH NOTES:

• Fiberglass fenders are required
• TC 4340 custom extended axles reuse factory inner and outer CV’s to retain 4wd. (axles are sold separately and not included with the kit)

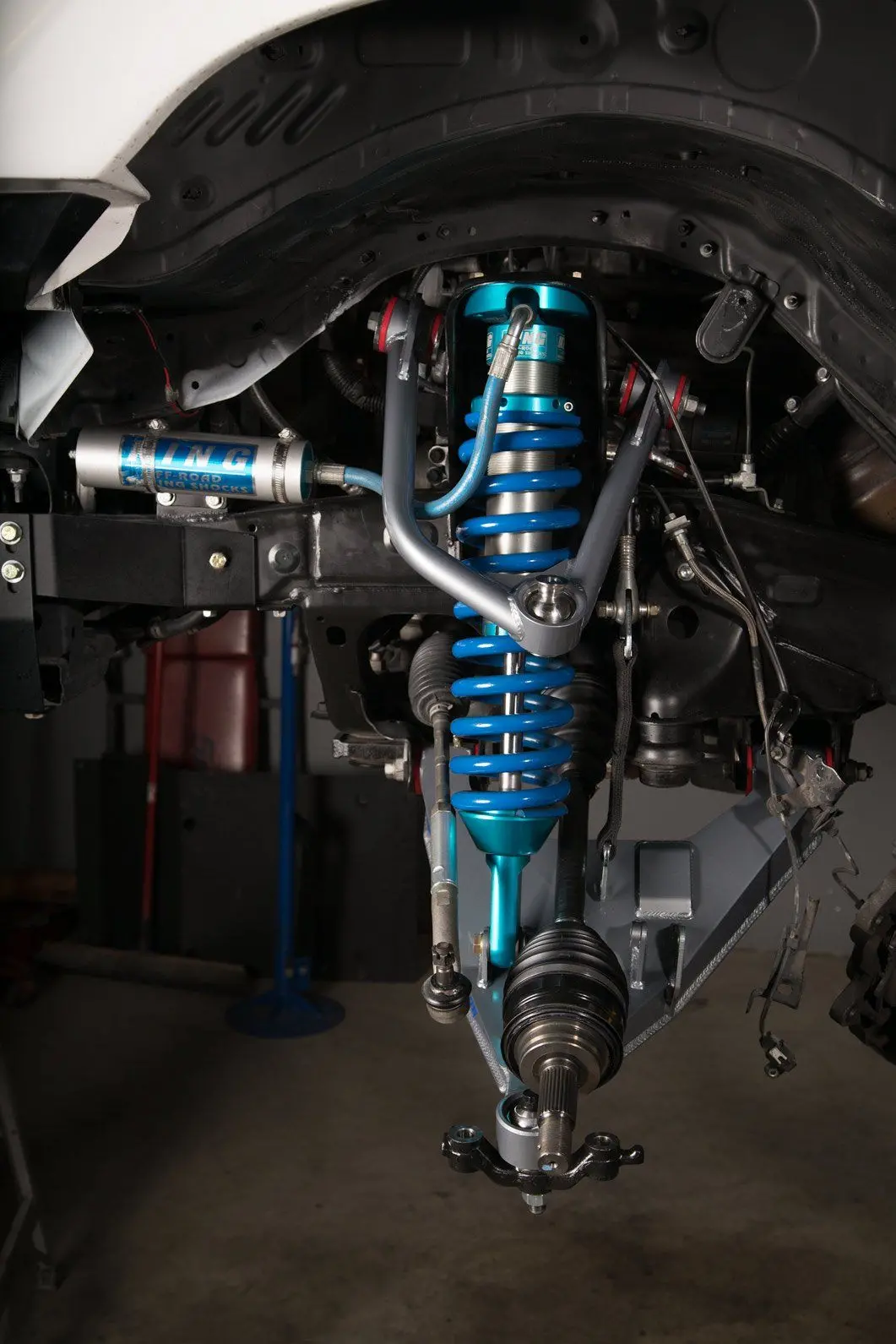

• 2.5″ long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.


  BRAND	COILOVER PART#	BYPASS PART#
  FOX	880-02-953	982-02-954
  KING	TC5119-03	TC1119-34
