Description
Overview:

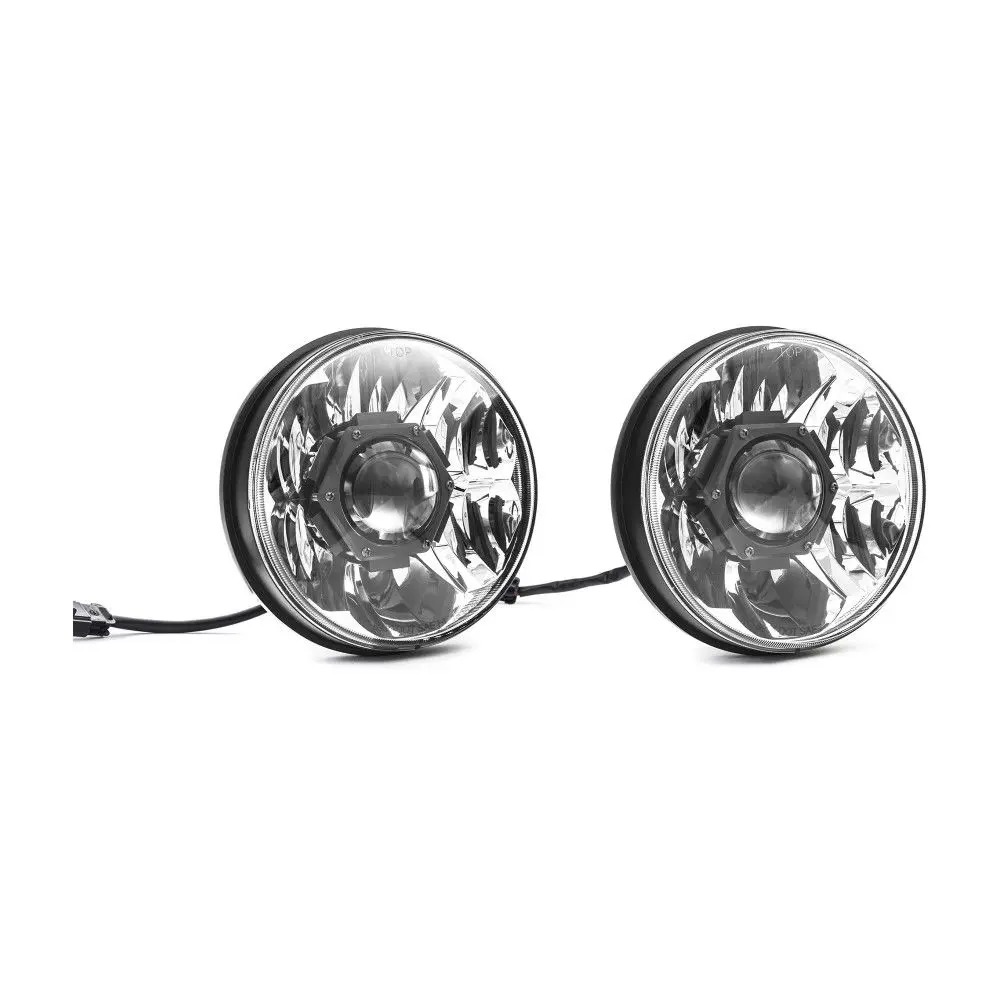

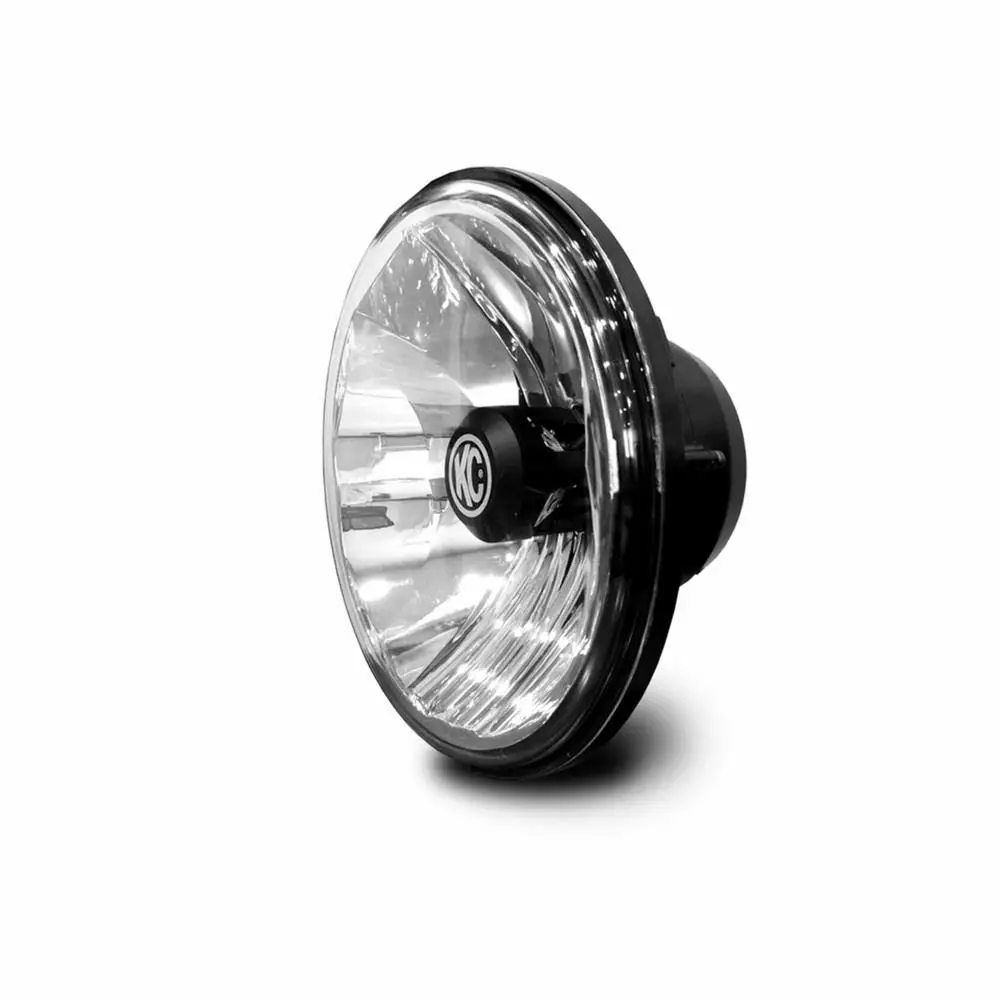

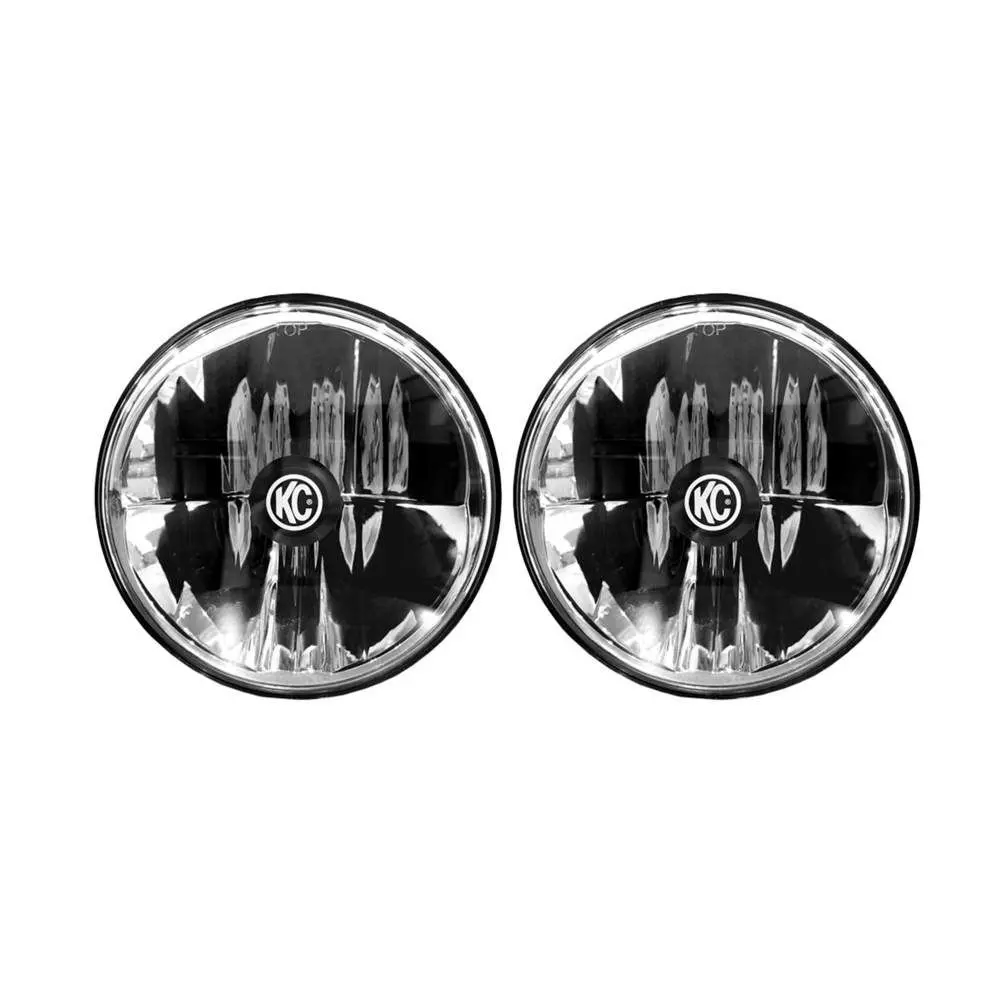

KC HiLiTES Gravity LED 7″ Jeep DOT Headlight features CREE LEDs for DOT compliant Low/High beam for 97-06 Jeep TJs. Diecast aluminum housing and polycarbonate lens for optimal performance. Pair includes H4 connectors, harness, and switch.
Features:
- 2 x 40W Gravity® LED 7″ Headlights
- Hard Coated Polycarbonate Lens
- Full Plug-n-Play for 97-06 Jeep TJ Wrangler/7″ Universal H4
- Precision Die-Cast Aluminum Housing
- KC Engineered Polished Reflector Optics
- DOT Compliant Low Beam, High Beam and Day Running Lamp (Transport Canada (TC) Compliant for 97-06 Jeep TJ with DRL equipped and enabled)
Light Performance (Per Light):
- Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
- Compliance: SAE J851 & ECE-R112
- Lux @ 10 Meters: Low- 415 lx, High- 775 lx
- Candela: Low- 41,500 cd, High- 77,500 cd
- Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT):
- Wattage: Low- 18W, High- 22W
- LED Bulb: CREE XHP35 HI and Nichia
- Color Temperature: 5000K
- Amp Draw: 1.88A
- Voltage: 9V-18V
- IP Rating: IP68
- Product Dimensions: W – 6.96″ x D – 3.72″
Parts Included in Pair Pack:
- (2) Gravity® LED 7″ Headlights
- Capacitor Harness
- Plug and Play Connectors, Jeep TJ/7″ Universal H4
- 30 Amp LED Switch w/ Panel
- Mounting Hardware
GRAVITY® EXTREME OUTPUT AND EFFICIENCY:
Gravity® LED 7″ Headlights feature KC’s patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
HIGH/LOW/DRL FUNCTIONS BUILT IN:
KC’s Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality. Greatly improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights, as well retrofit 7″ round headlight openings on classic domestic, European and JDM vehicles.
DESIGNED FOR DURABILITY:
Surrounding our Gravity® LED 7″ Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
Specs:
- Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
- Light Technology: LED
- Location on Vehicle: Headlight
- Lumens: 1260 lm
- Beam Distance: 557 m
- Total Wattage: 40W
- Voltage: 9V-18V
- Amp Draw: 3.3 a
- Beam Pattern: Driving
- DOT Compliant: Yes
- SAE/ECE: Yes
- Lens Color: Clear
- Light Color: White
- Product Dimensions: W – 6.96″ x D – 3.72″
- Material: Aluminum Alloy
- Finish: Black
- In The Box: 2 x Gravity® LED 7″ DOT Jeep TJ 97-06/Universal H4 Headlight
- Prop 65: No
- Size: 7″
