Description
Overview:
KC’s Fog Light Bracket/LED upgrade allows mounting of KC Gravity® G4 LED fog lights to Tacoma’s OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper.
Features:
- 2 x 10W 4″ Gravity® LED Fog Lights
- Lightweight Magnesium Housing for Maximum Heat Dissipation
- UV Treated Shatter Resistant Polycarbonate Lens
- Street Legal Fog Beam Pattern
LIGHT PERFORMANCE (PER LIGHT):
- Raw Lumens: 866 lm
- Compliance: SAE J583 & ECE-R19
- Lux @ 10 Meters: 150 lx
- Candela: 150,000 cd
- Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT):
- -Wattage: 10W
- -LED Source: CREE XP-G R4
- -Color: 5000K
- -Amp Draw: .74A
- -Voltage: 9V-32V
- -IP Rating: IP68
- -Dimensions: W – 3.94″ x H – 3.94″ x D – 2.97″
Parts Included:
- (2) 10W 4″ Gravity® G4 LED Fog lights and Brackets for 12-23 Toyota Tacoma
- H11 Wiring Harness w/ 2-Pin weather-proof connectors

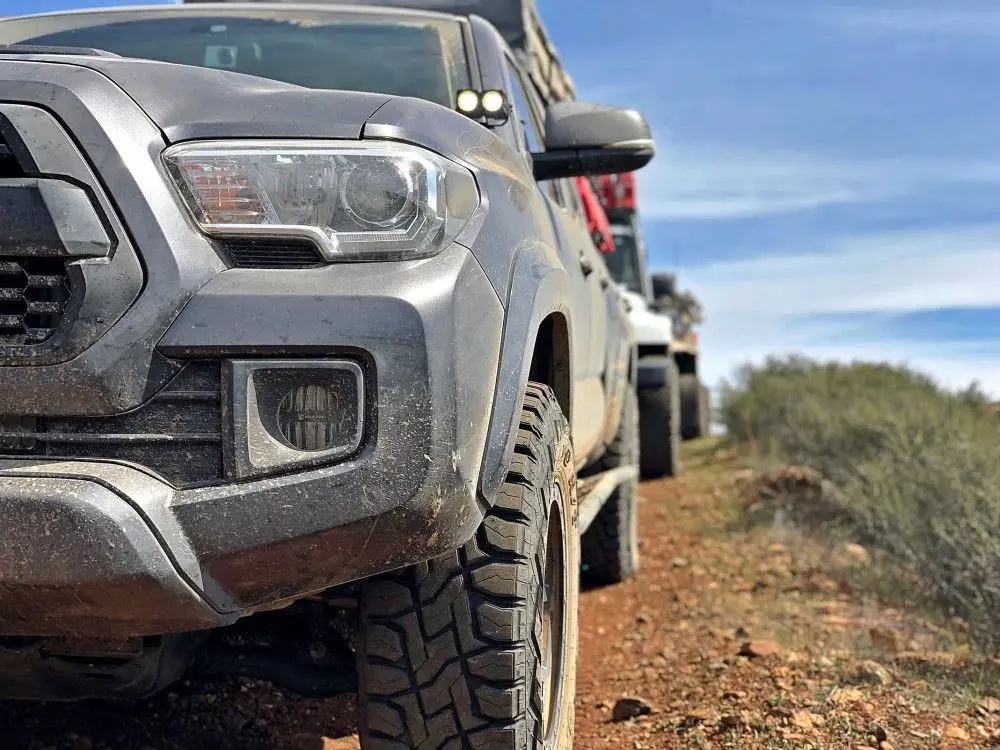

TOYOTA AND LEXUS OE FOG LIGHT MOUNTING:
KC’s G4 LEDs fits various 06-22 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.
KC’s Gravity G4 Toyota LED Fog Light Fits:
- 12-23 Toyota Tacoma
- 14-21 Toyota Tundra
- 10-24 Toyota 4Runner
- 06-12 Toyota Rav4
- 13-15 Lexus: IS,ES,GS,RX,LX
GRAVITY® EXTREME OUTPUT AND EFFICIENCY:
The 4″ Gravity® LED Fog Lights are powered by KC’s patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward.
STREET LEGAL FOG BEAM PATTERN:
Fog Beam- Provides a low, wide-angle light pattern that increases visibility in conditions like dust, fog, snow and rain.
STRENGTH & DURABILITY:
Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.
Specs:
- Compliance DOT/SAE/ECE: SAE J583, ECE R19 (Fog)
- Light Technology: LED
- Location on Vehicle: Bumper, Fog Pocket
- Lumens: 866 lm
- Beam Distance: 245 m
- Total Wattage: 20W
- Voltage: 9V-32V
- Amp Draw: 1.67 a
- Beam Pattern: Fog
- DOT Compliant: No
- SAE/ECE: Yes
- Lens Color: Clear
- Light Color: White
- Product Dimensions: W – 3.94″ x H – 3.94″ x D – 2.97″
- Material: Magnesium Alloy
- Finish: Black
- Color: Black
- In The Box: 2 x 4″ Gravity® LED Clear Fog Light (Toyota Specific Housing), H11 Wire Harness
- IP rating: IP68
- Prop 65: No
- Size: 4″
