KC HiLiTES Gravity LED G4 Universal Fog Light Kit

Description

Overview:

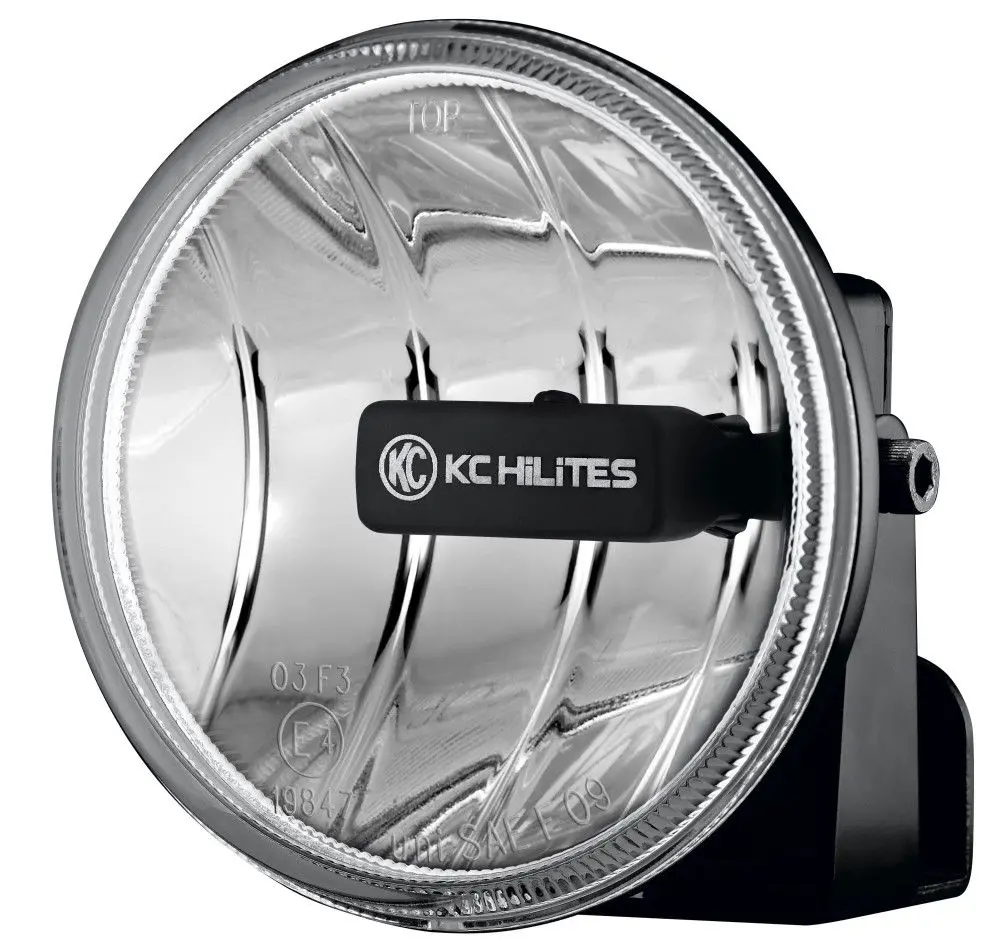

KC HiLiTES 4″ Gravity LED G4 Universal LED Fog Light feature powerful CREE LEDs in a street legal fog beam pattern sealed magnesium housing with polycarbonate lens. System includes (2) Lights with universal bracket for easy mounting.

Features:

• 2 x 10W 4″ Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• Shatter Resistant Polycarbonate Lens
• Fog Beam Pattern (SAE & ECE Street Legal)

LIGHT PERFORMANCE (PER LIGHT):

• Raw Lumens: 866 lm
• Compliance: SAE J583 & ECE-R19 Street Legal
• Lux @ 10 Meters: 150 lx
• Candela: 15,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT):

• Wattage: 10W
• LED Source: CREE LED
• Color Temperature: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP68
• Product Dimensions: W – 3.94″ x H – 3.94″ x D – 3.23″

PARTS INCLUDED:

•  -(2) 10W 4″ Gravity® G4 LED Fog lights
•  -Universal Adjustable Bracket
•  -Performance Wiring Harness w/ 2-Pin weatherproof connectors and Illuminated LED Light Switch

GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

 4″ Gravity® LED Fog Lights are powered by KC’s patented Gravity® Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC’s patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION:

KC’s Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle.

STRENGTH & DURABILITY:

Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

Specs:

• Compliance DOT/SAE/ECE: SAE J583, ECE R19 (Fog)
• Light Technology: LED
• Location on Vehicle: Bumper, Fog Pocket
• Lumens: 866 lm
• Beam Distance: 245 m
• Total Wattage: 20W
• Voltage: 9V-32V
• Amp Draw: 1.67 a
• Beam Pattern: Fog
• DOT Compliant: No
• SAE/ECE: Yes
• Lens Color: Clear
• Light Color: White
• Product Dimensions: W – 3.94″ x H – 3.94″ x D – 3.23″
• Material: Magnesium Alloy
• Finish: Black
• Color: Black
• In The Box: 2 x Gravity LED™ G4 SAE/ECE Fog Light, 2 x Universal Mounting Bracket, Wiring Harness with Weatherproof Connectors, Hardware
• Prop 65: No
• Size: 4″
