Description
King’s 2.5 Remote Reservoir extended travel coilovers and rear shocks for the 2005-2023 Toyota Tacoma is a great aftermarket suspenion upgrade. These adjustable coilovers and rear shocks will improve your Tacoma’s suspension performance.
These aftermarket extended travel coilovers and extended travel rear shocks have been factory-tuned by King for optimal ride quality and are 100% bolt-on.
VEHICLE FITMENT:
- 2005-2015 (2nd Gen) Toyota Tacoma
- 2016-Current (3rd Gen) Toyota Tacoma
- NOTE: Use of an aftermarket upper control arm is required to maintain OEM alignment specs
WHAT’S INCLUDED:
- QTY 2. 2005-Current Toyota Tacoma King 2.5 RR Extended Travel Coilover Kit w/ Adjusters-25001-119A-EXT
- QTY 2. 2005-Current Toyota Tacoma King 2.5 RR Rear Shocks w/ Adjusters-25001-121A
KEY FEATURES:
- 100% bolt-on performance
- These coilovers and rear shocks will increase overall wheel travel.
- Large 2.5” shock bodies increase fluid capacity for smoother, cooler running shocks.
- Factory tuned for optimal ride quality.
- Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
- Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
- Fully rebuildable, serviceable and tunable.

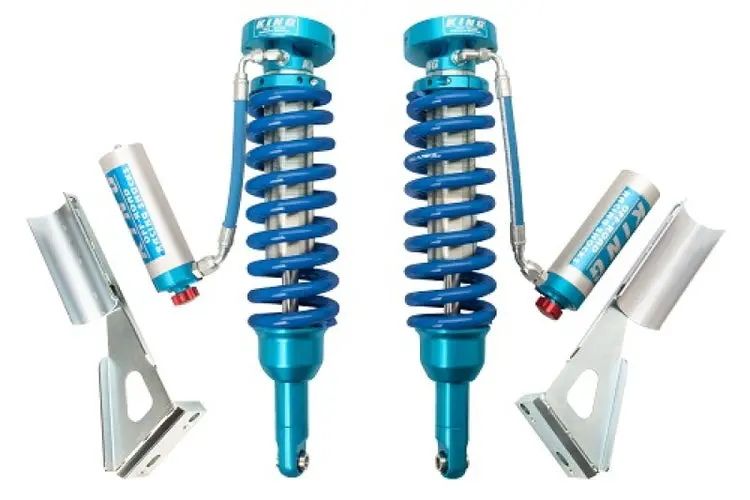

COILOVER SPECS AND FEATURES (25001-119A-EXT):
- Measurements: Extended – 21.687″, Collapsed – 16.75″
- 2.5″ ID honed CAD plated cylinders
- 7/8″ hard chrome micro polished shafts
- Aeroquip high pressure hoses
- PTFE lined rod ends
- Fully rebuildable and revalveable
- Made in the USA
REAR SHOCKS SPECS AND FEATURES (25001-121A):
- Lift Height: 0-1.5″ of lift over stock in the rear
- 2.5″ ID honed CAD plated cylinders
- 7/8″ hard chrome micro polished shafts
- PTFE lined rod ends
- Fully rebuidable and revavlable
- Extended – 24.29″, Collapsed – 15.83″
- Made in the USA
COMPRESSION ADJUSTER FEATURES:
- King’s Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.
- External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
- Reservoir Mounts that will securely hold your coilover’s reservoir.
- All new threaded end cap design with new Schrader valve protective cap.
- Made from extruded 6061-T6 aluminum.
’05-Current Toyota Tacoma Upper Control Arms
Aftermarket upper control arms for the 2005-2023 (2nd and 3rd Gen) Toyota Tacoma are designed to improve the Tacoma’s wheel travel, correct caster and camber.
Upper Control Arms
