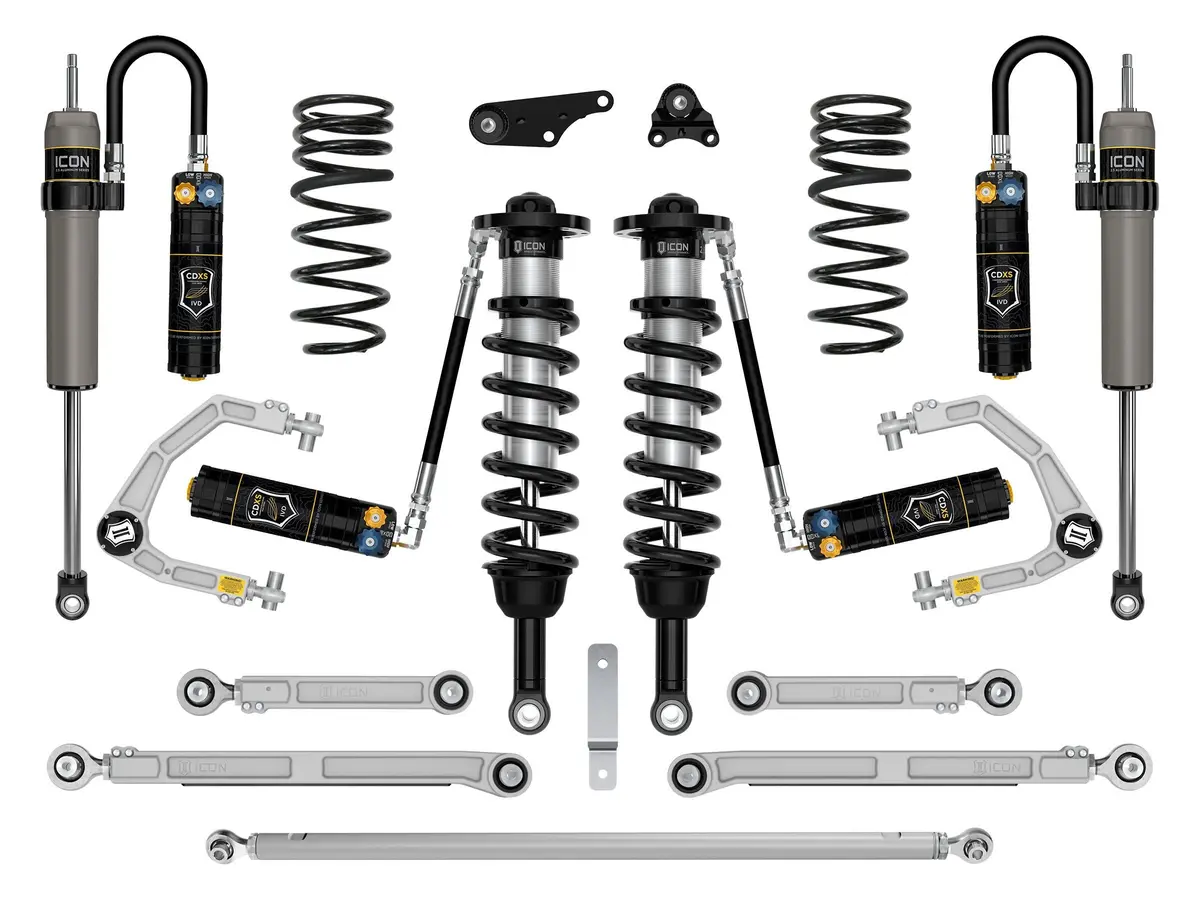

LC250 Stage 9 Suspension System — Adjustable 1.25–3 Inch Lift Kit (2024 CDXS Model)

Description

KEY FEATURES:

• Shocks & Coilovers equipped with CDXS for independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3″ front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2″ of rear lift
• Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular or Billet rear upper and lower links improve rear end articulation and allow for pinion angle adjustment. Billet links feature on-vehicle adjustability
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts provide increased performance and balanced tune with coilovers

SYSTEMS INCLUDE

• 58791X: 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDXS COILOVER KIT
• 58452DJ: 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
  or 58552DJ: 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160: 24 TACOMA/24 LC250 DIFF DROP KIT
• 57870XP: 24 LC250/24 GX550 0-3″ REAR 2.5 VS CDXS RR PAIR
• 52752: 24 LC250/24 GX550 2″ DUAL RATE REAR SPRING KIT
• 54202: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T: 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
  or 54003: 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
• 54102T: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
  or 54102: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• 55161: 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
