LP6 Pro LED Lighting Kit – Dual-Unit Set

Description

formidable lighting solution

The Baja Designs LP6 Pro is a formidable 6-inch lighting solution, delivering a staggering 10,300 lumens across a 200° spread of usable LED light. This powerhouse comprises 8,600 lumens of forward-projecting light and 1,700 lumens of peripheral illumination, thanks to Baja Designs’ exclusive Integrated Peripheral Technology (IPT).

To maintain peak performance, the LP6 Pro incorporates Baja Designs’ innovative Direct Ducted Cooling (DDC) technology, enabling air to flow through the front and over the rear heat sinks, significantly enhancing cooling efficiency. Equipped with an amber daytime running light, and both low and high power modes, the LP6 Pro is versatile enough to meet all your lighting requirements.

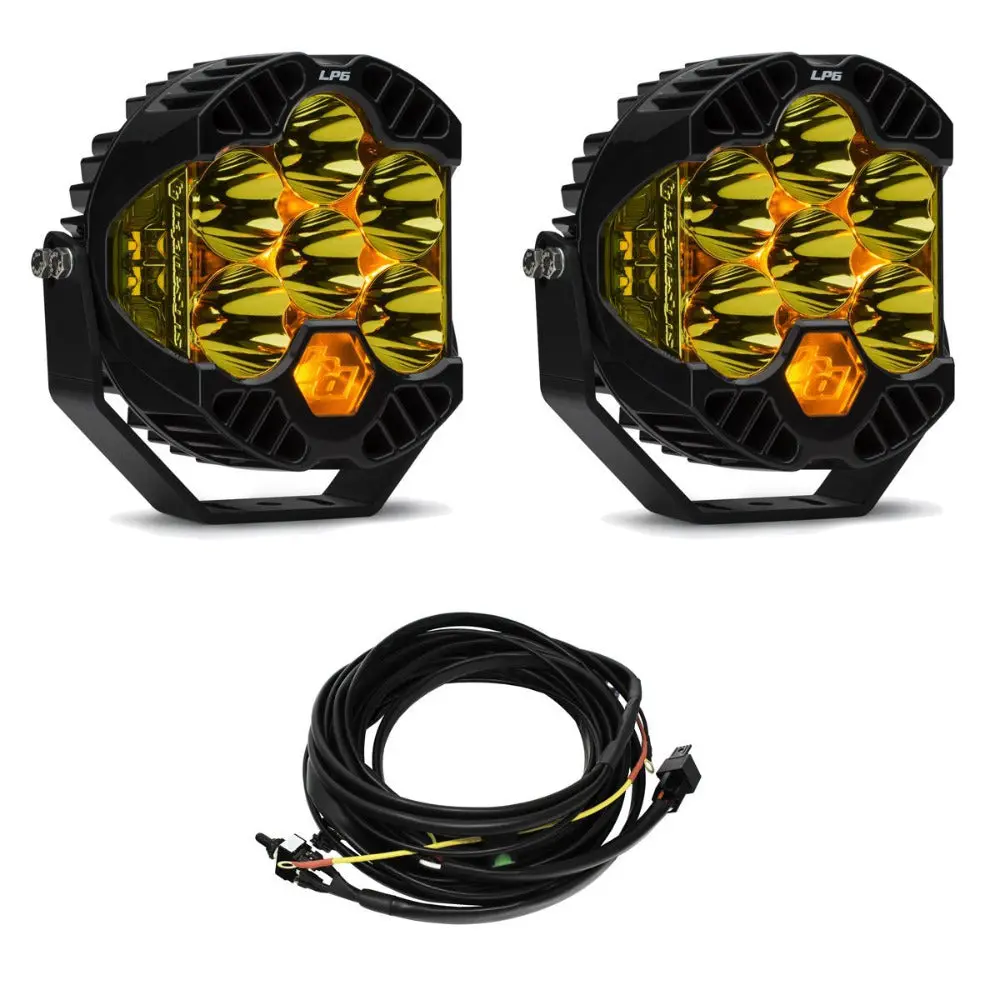

INCLUDED IN YOUR PACKAGE:

• 2 Baja Designs LP6 Pro Lights
• Wiring Harness (640172)

SPECIFICATIONS (PER LIGHT):

• Forward Projecting Lumens: 8,600 (6 LEDs)
• Forward Projecting Power: 90W / 6.5A
• Peripheral Lumens: 1,700 (4 LEDs)
• Peripheral Power: 15W / 1.0A
• Backlight Power: 4.14W / 0.3A
• Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth
• LED Lifespan: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Military-Spec Testing: Exceeds MIL-STD810G
• Overvoltage Protection: Built-In
• Waterproof Rating: IP69K (Submersible up to 9ft)
• Impact Resistance: IK10 Compliant

LP9 / LP6 Pro Harness Features:

• Easy-to-use wiring harness with Deutsch style connectors
• Splitter for powering two LP9 or LP6 Lights
• Automotive ring terminals
• 3-position, 30amp DC Rated, DPDT On-Off-On Switch
• Separate wire lead with splice connector for DRL
• 20A/40A Relay & 30 amp inline fuse
• Length: 12 feet (battery to cluster), 15 feet (cluster to lights)

Beam Patterns:

• Driving/Combo: A blend of Wide Driving (42°) and Spot (6°) optics for versatile lighting.
• High Speed Spot: A focused 6° beam for long-range illumination.
