Description

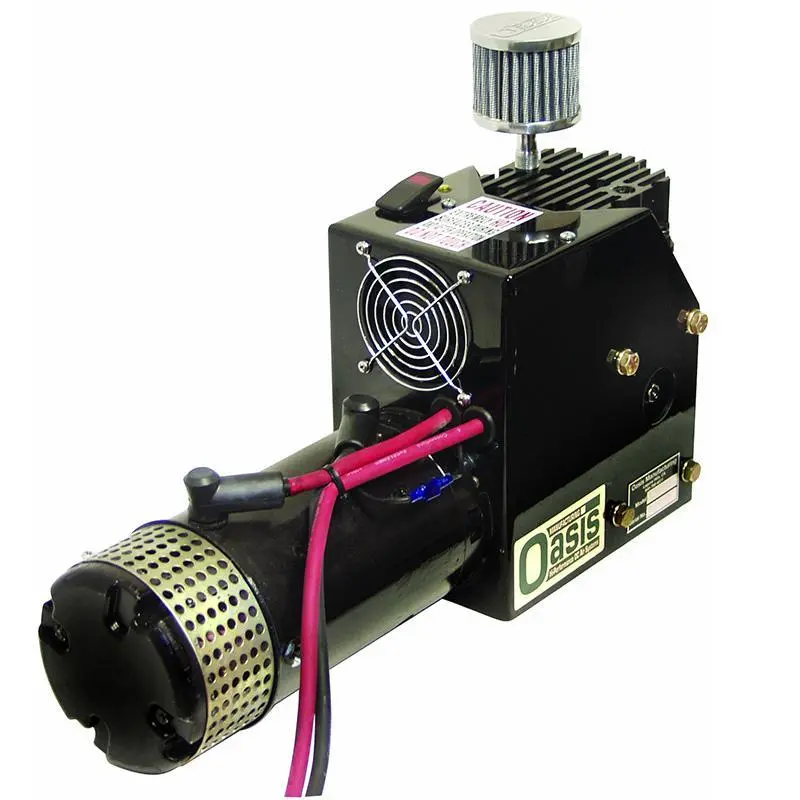

The XD4000 continuous-duty air compressor is the ultimate tool for extensive compressed air performance. GSA approved, the XD4000 continuous-duty DC air compressor is equipped with a specially designed deep-finned head and compressor body. In addition, this unit features an exclusive, forced air motor and compressor cooling system.
The XD4000 continuous-duty DC air compressor model possesses dual fans: a 100 cfm fan built into a housing shroud, which works to cool the body and motor of the machine, while providing added protection to the unit, and an internal fan which also cools the modified 2.2 hp electric motor. This unique cooling combination, found exclusively on our high-quality XD4000 continuous-duty DC air compressor, provides superior operating temperature reduction resulting in an unrivaled 100 percent duty-cycle at 200 psi.
Our XD4000 continuous-duty DC air compressors are built to handle the most rugged commercial service and tow truck project requirements, as well as military applications, off-road vehicles, and air suspension systems.
SPECS:
| PART# | Nominal Operating Voltage | Current at Max Load (Amps) | Power at Max Load (Watts) | Duty Cycle @ 100 psi @ 70 deg |
| XDM4000-12 | 12 Vdc | 180 | 2160 | 100% |
| XDM4000-24 | 24 Vdc | 90 | 2160 | 100% |
