Description:

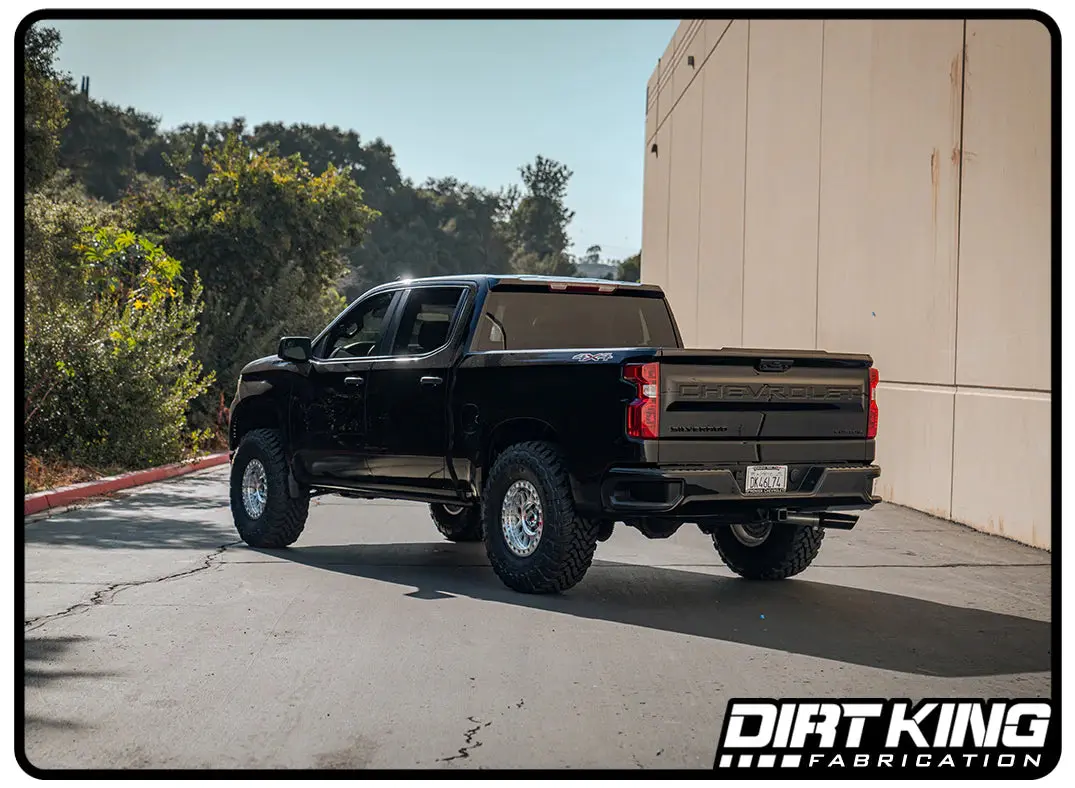

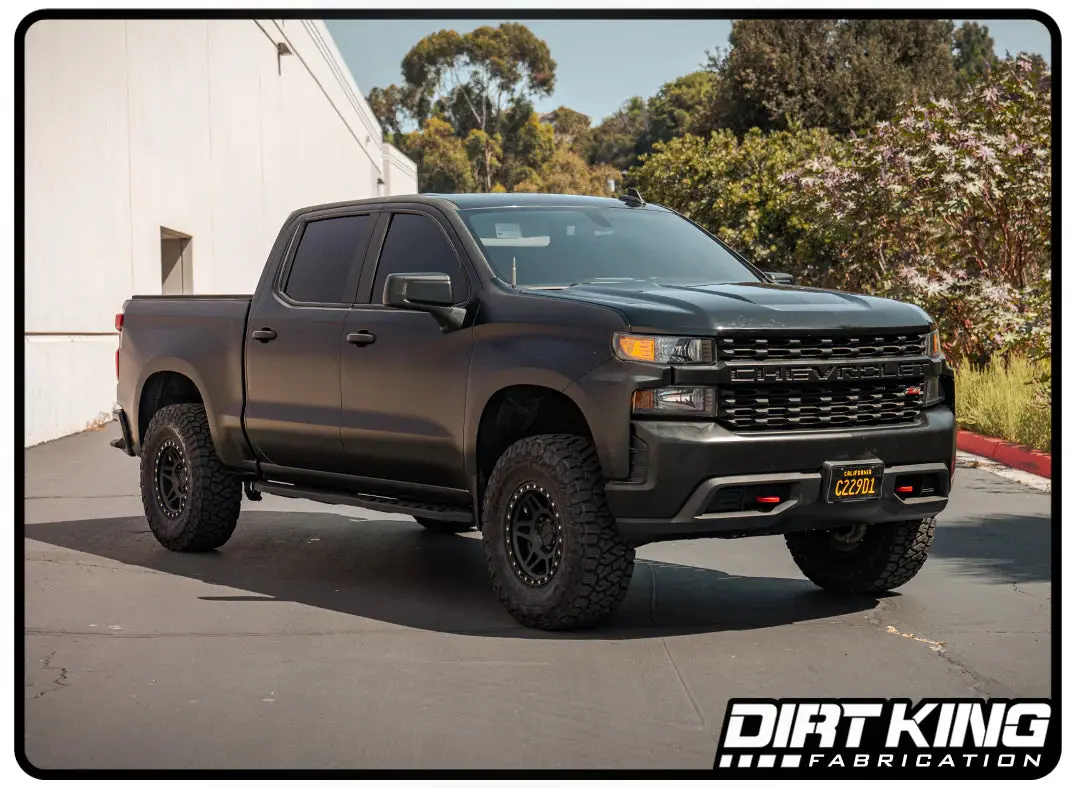

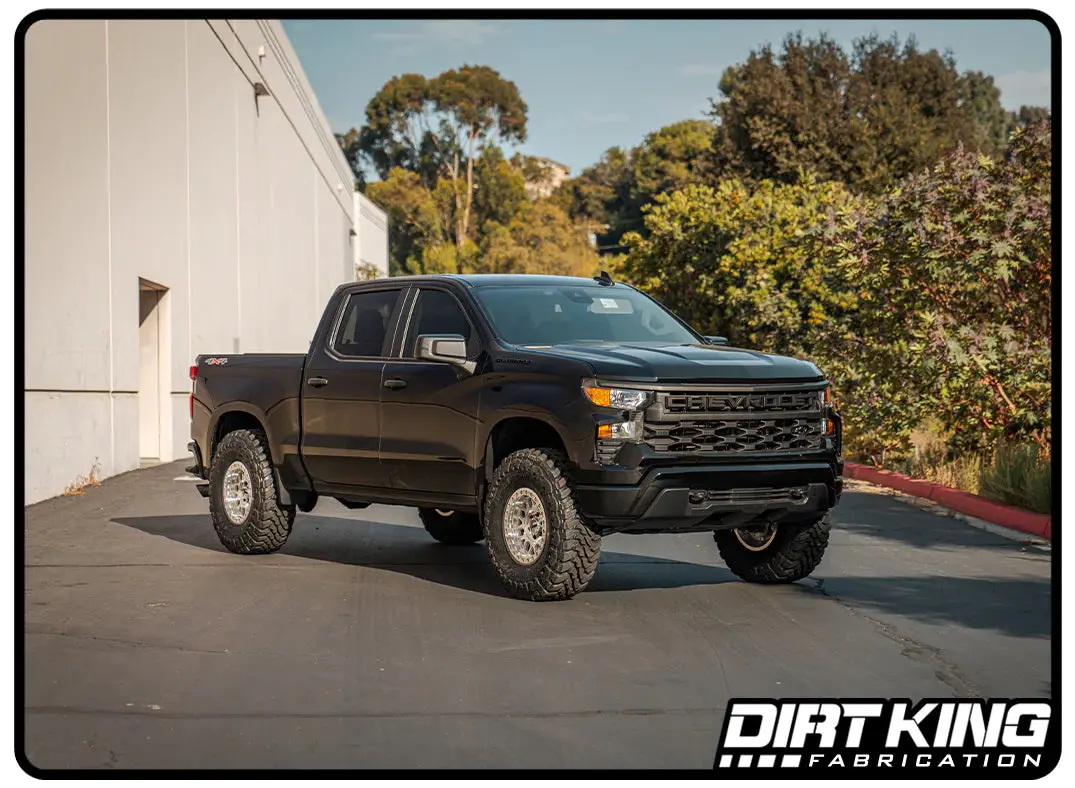

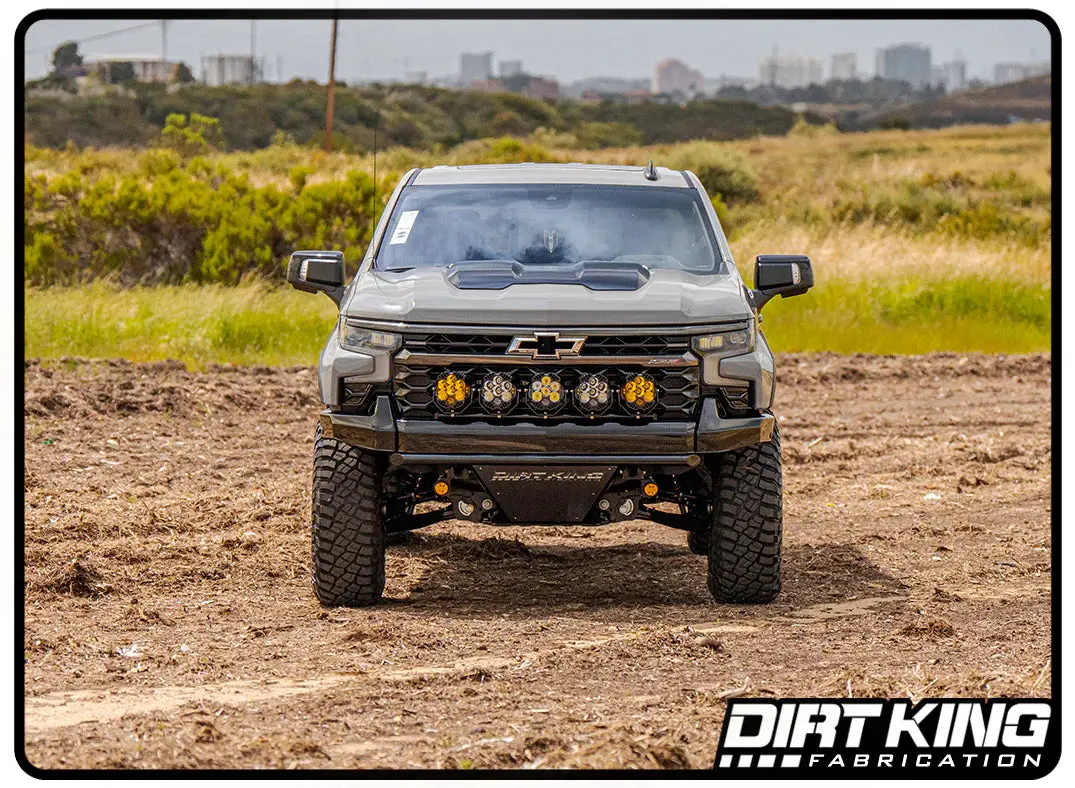

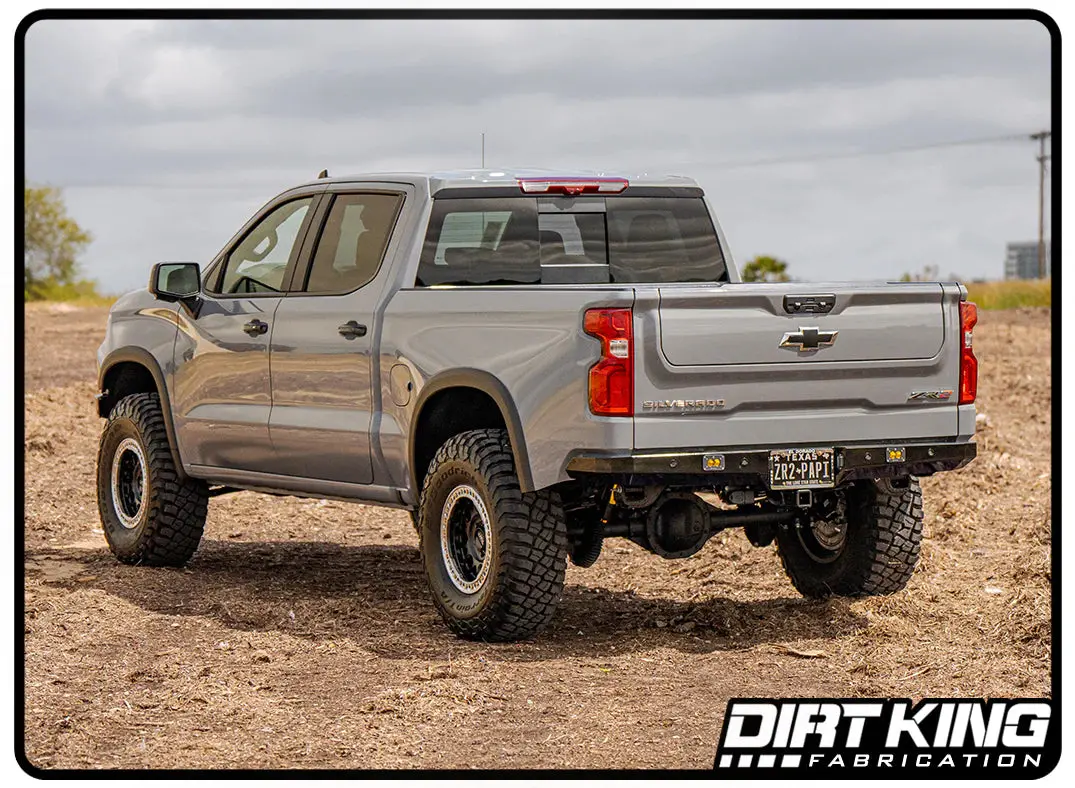

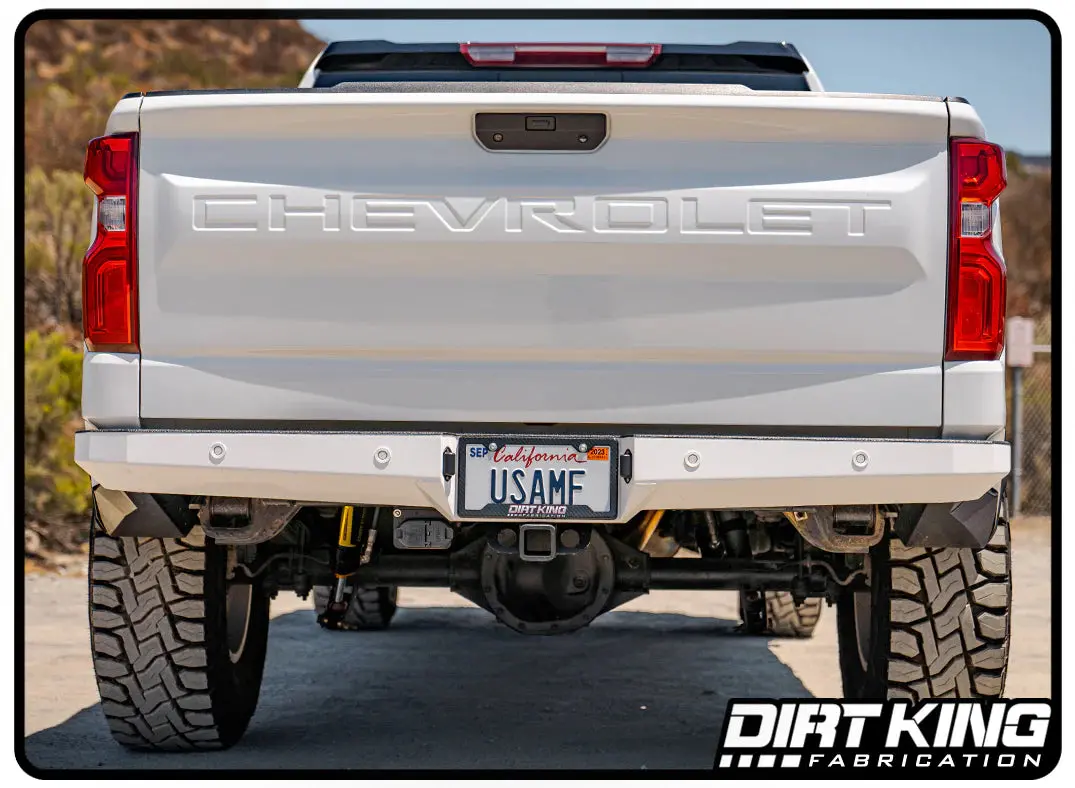

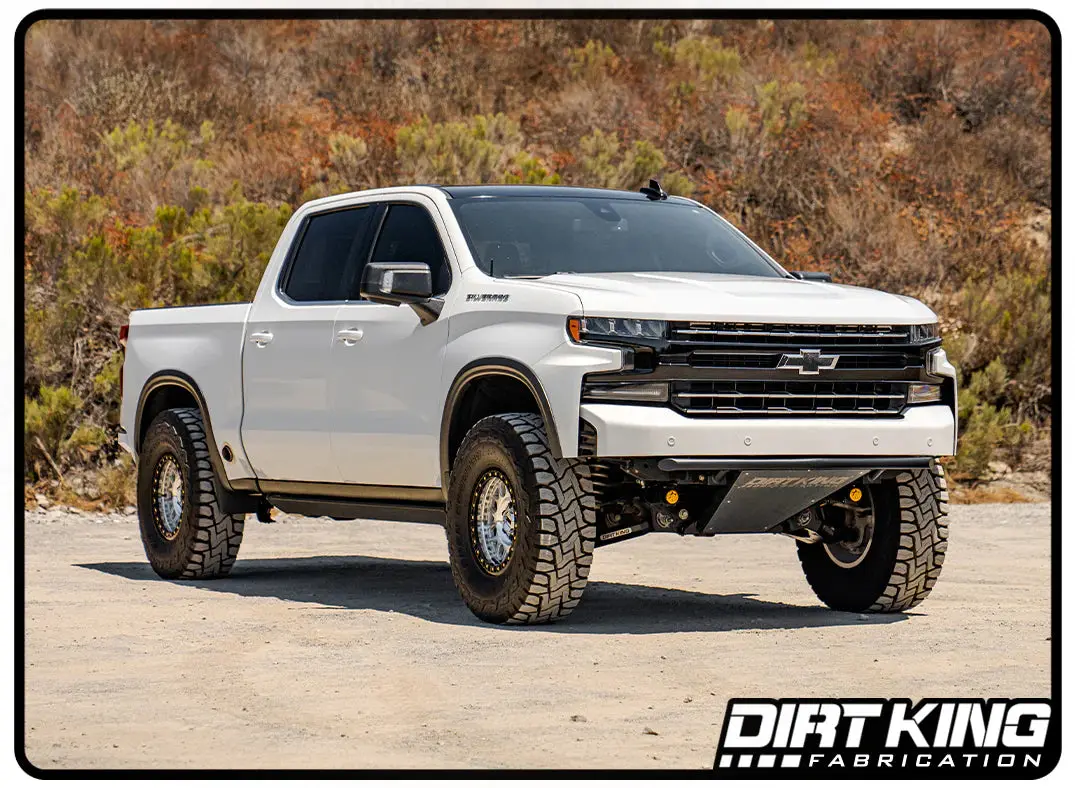

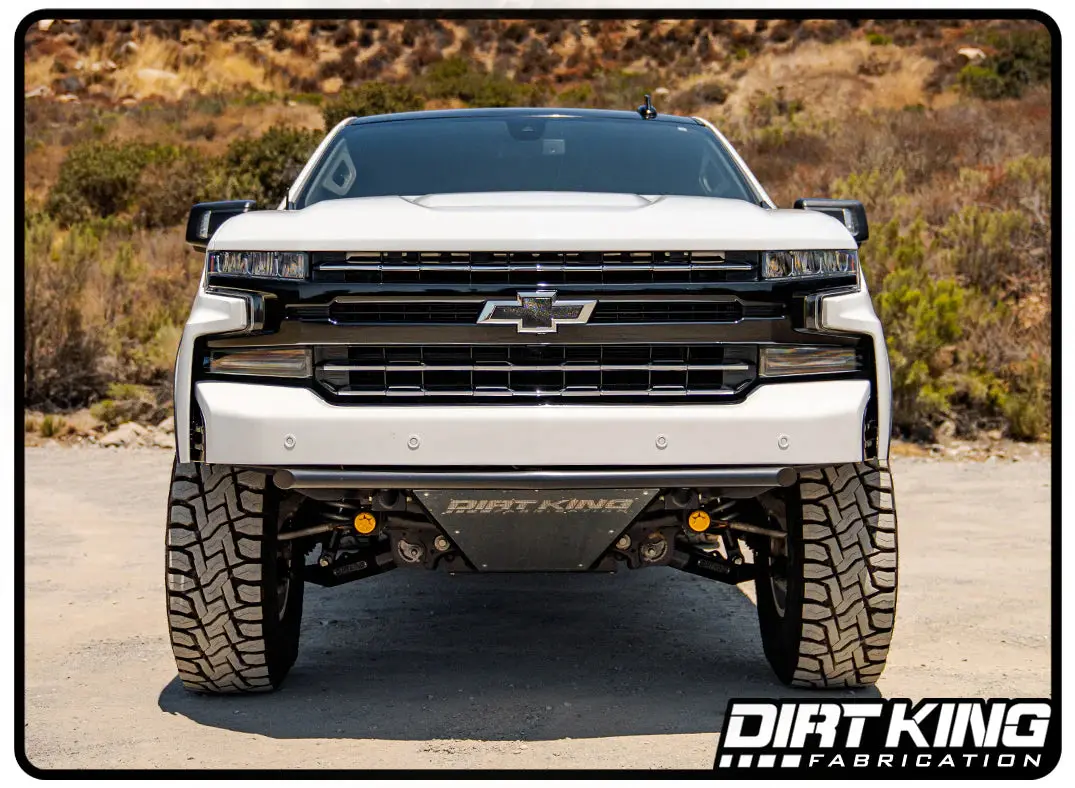

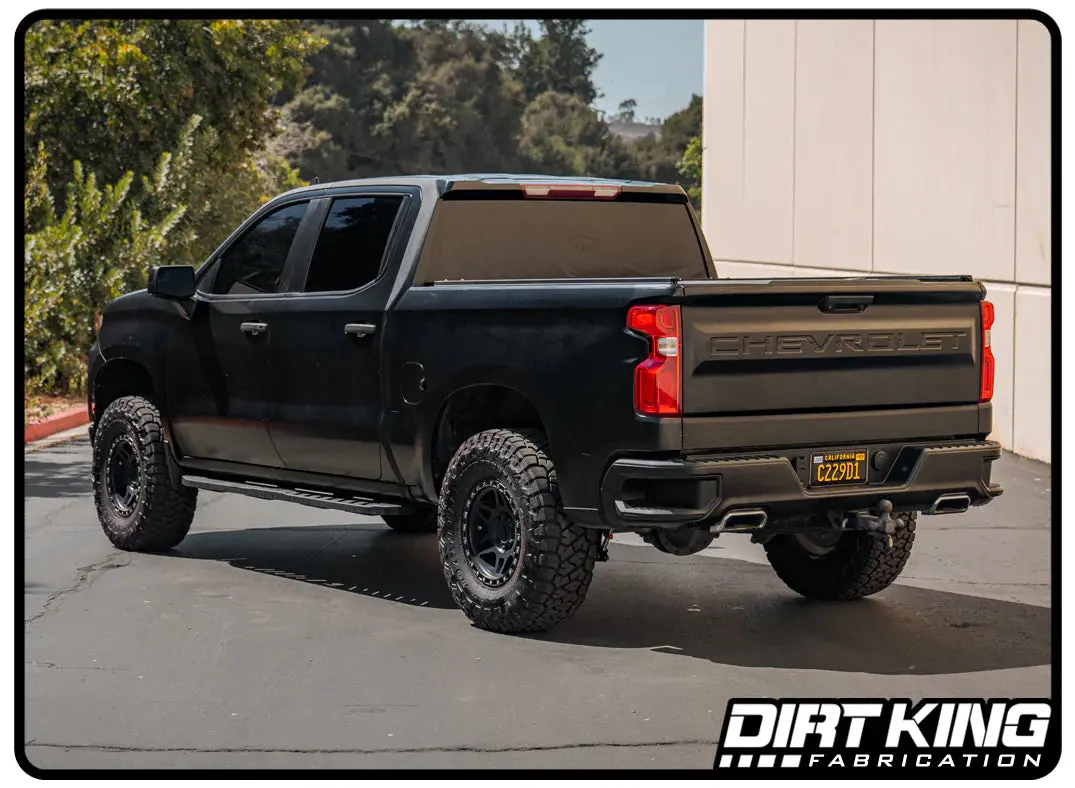

Transform your GM 1500 by eliminating front-end rake and achieving a leveled lift with the Dirt King Prerunner Kit. This package includes Dirt King’s Billet Upper Control Arms, 2.5 DCA Front Coilovers, and 2.5 DCA Rear Shocks—all expertly tuned for off-road capability while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. It’s the perfect choice for those looking to enhance their vehicle’s off-road performance and ride quality.
Specs:
Front Lift Height
- Standard Models:
- Out of the Box: Provides 3″ of lift (levels vehicle).
-
Max Recommended Setting: Up to 3.5″ of lift.
- Trail Boss / ZR2 / AT4 / AT4X Models:
- Out of the Box: Provides 1.5″ of lift.
-
Max Recommended Setting: 1.5″ of lift (Do not exceed to maintain ride quality)
Rear Lift Height
- Standard Models:
- Out of the Box: Factory height is retained.
-
Maximum Recommended Lift Block: 1.5″ (Lift blocks not included)
- Trail Boss / ZR2 / AT4 / AT4X Models:
- Included: Package includes 1.5″ rear lift blocks to replace the factory 2″ blocks.
-
Benefit: Levels the vehicle and optimizes ride quality.
Additional Specifications
- Track Width: Stock
- Maximum Backspacing: 4.75″
- Minimum Rim Size: 17″
- Shock Bodies: 2.5″ hard-anodized 6061 aluminum
-
Shock Shafts: Induction-hardened 7/8″
What’s Included:
- Billet Upper Control Arms

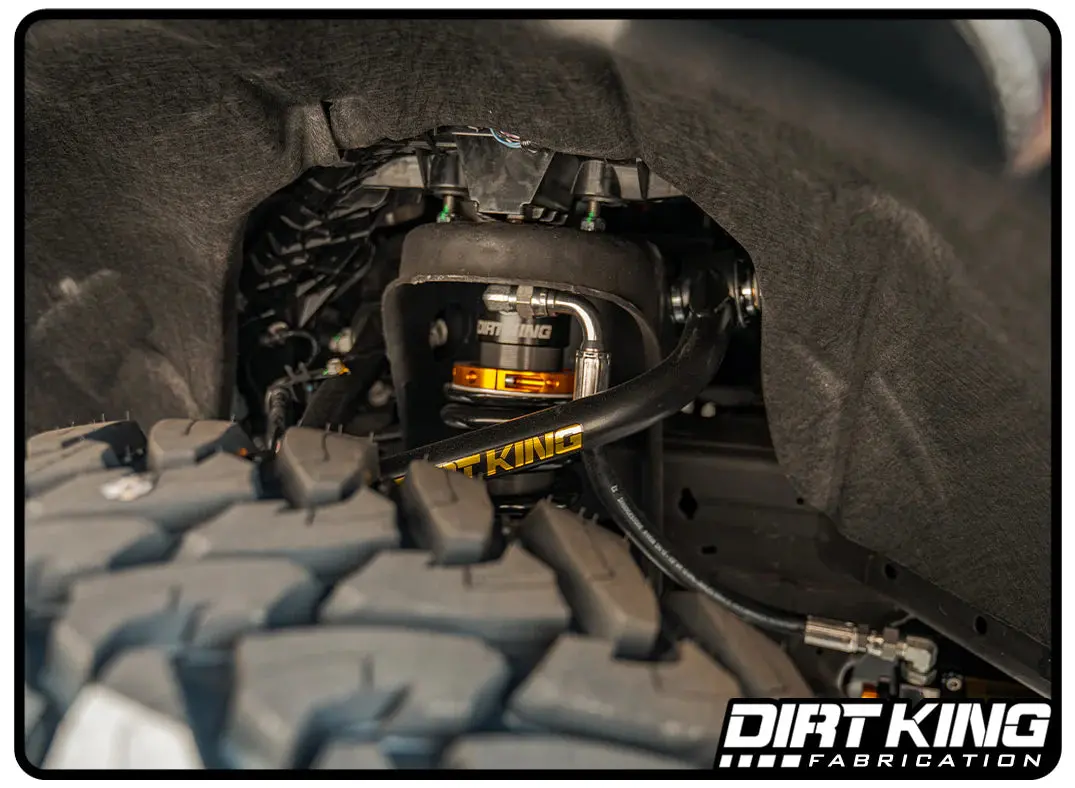

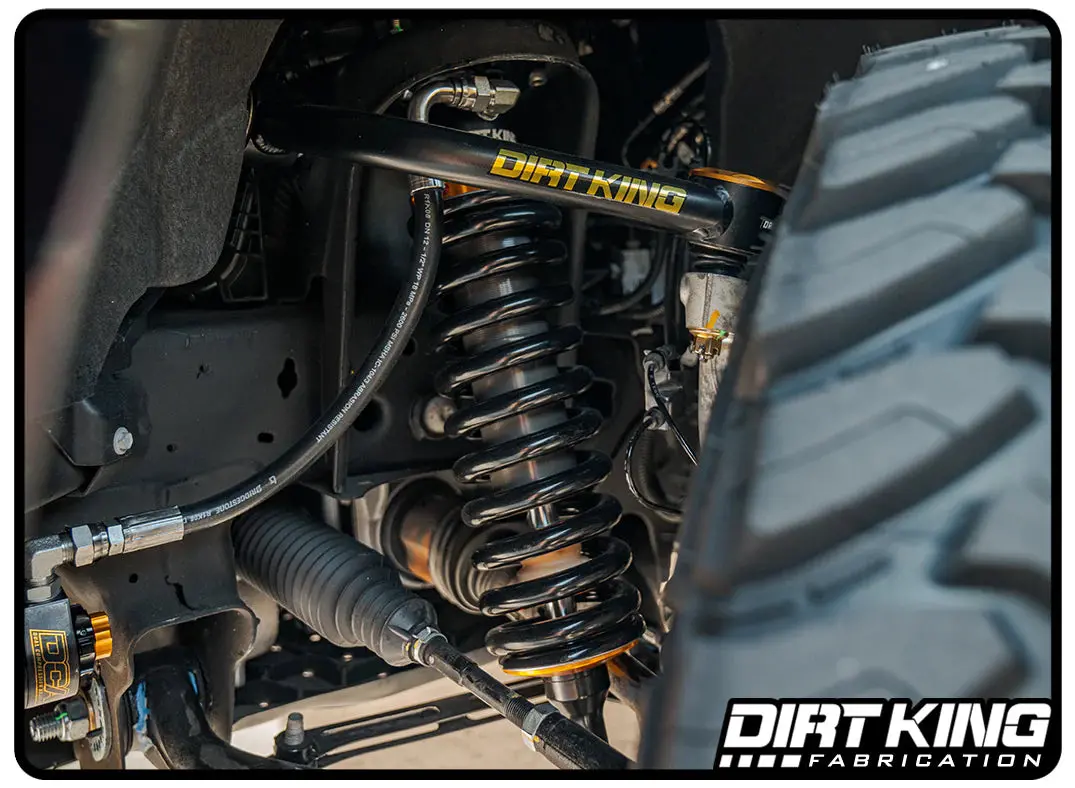

- Dirt King 2.5 DCA Front Coilovers

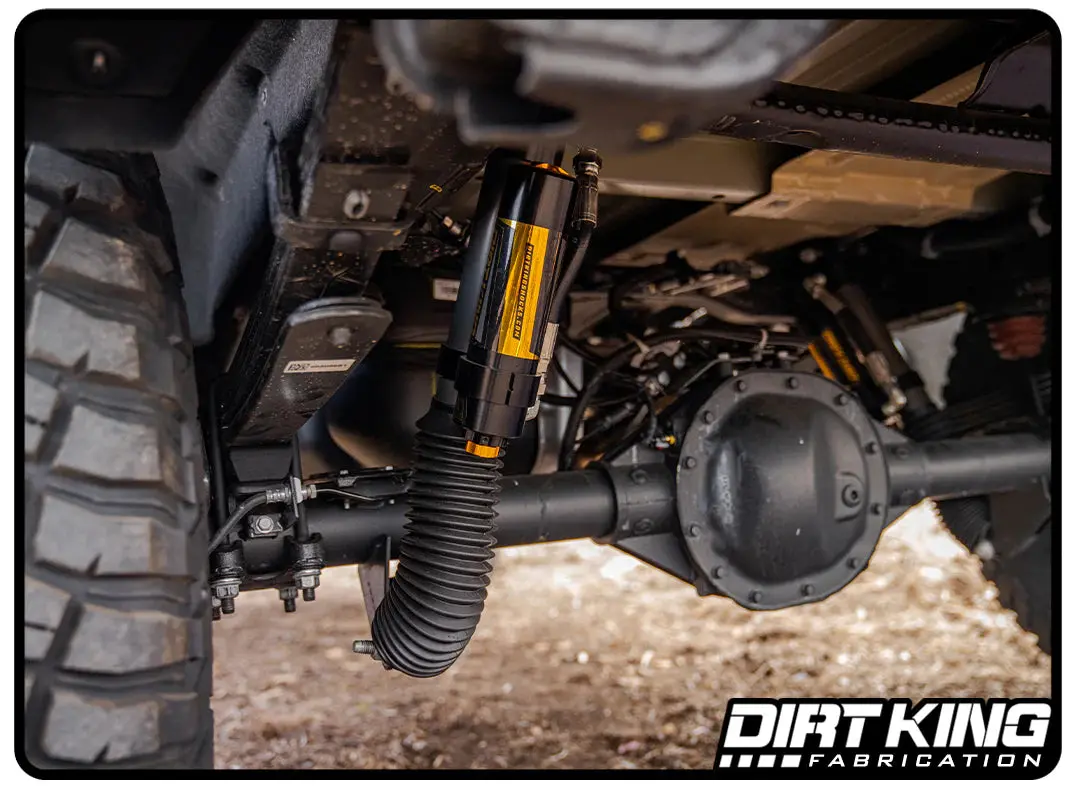

- Dirt King 2.5 DCA Rear Shocks
- All Necessary Mounting Hardware
- Dirt King Sticker Pack
- Installation Instructions
- Trail Boss / ZR2 / AT4 / AT4X models include 1.5″ rear lift blocks and u-bolts to replace the factory 2″ blocks.
Features:

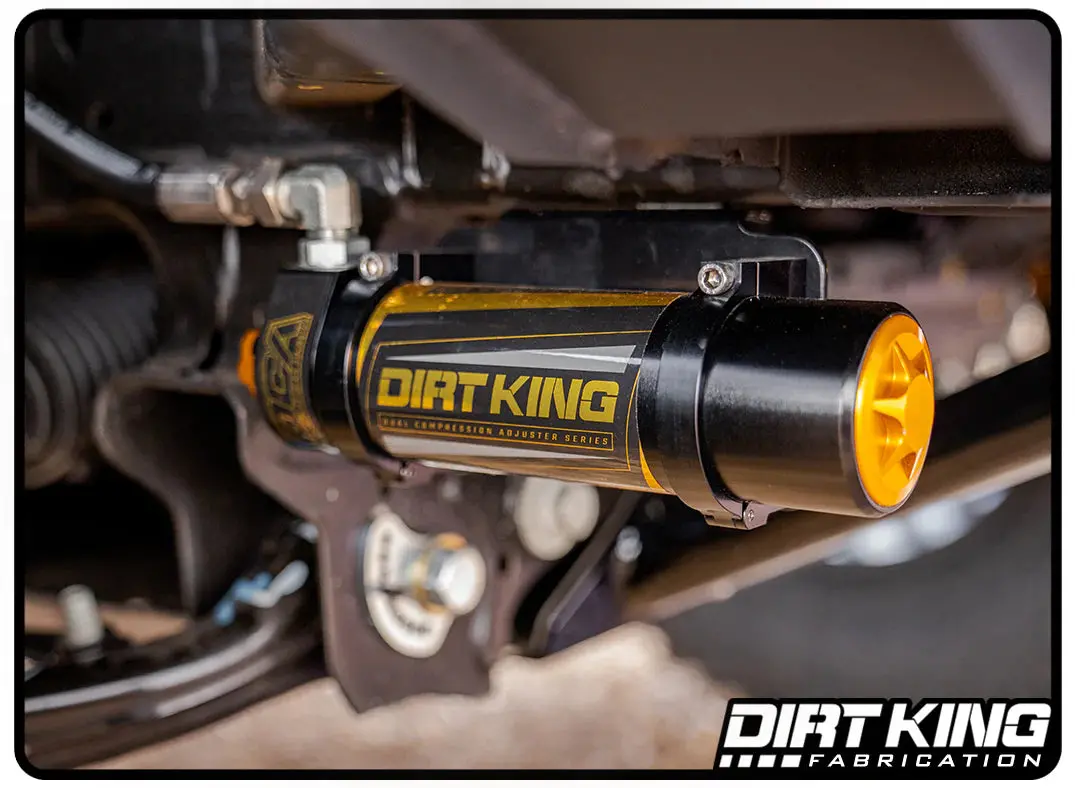

- DCA Remote Reservoirs: Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments.
- Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
- Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
- Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
- Durable Construction: The upper control arms are Precision-machined from 6061 aluminum for strength and durability.
- High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
- Maintenance-Free Bushings: Probearing SilentSpin bushings offer a free-spinning inner sleeve without the need for grease.
- Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
- Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.
