Description

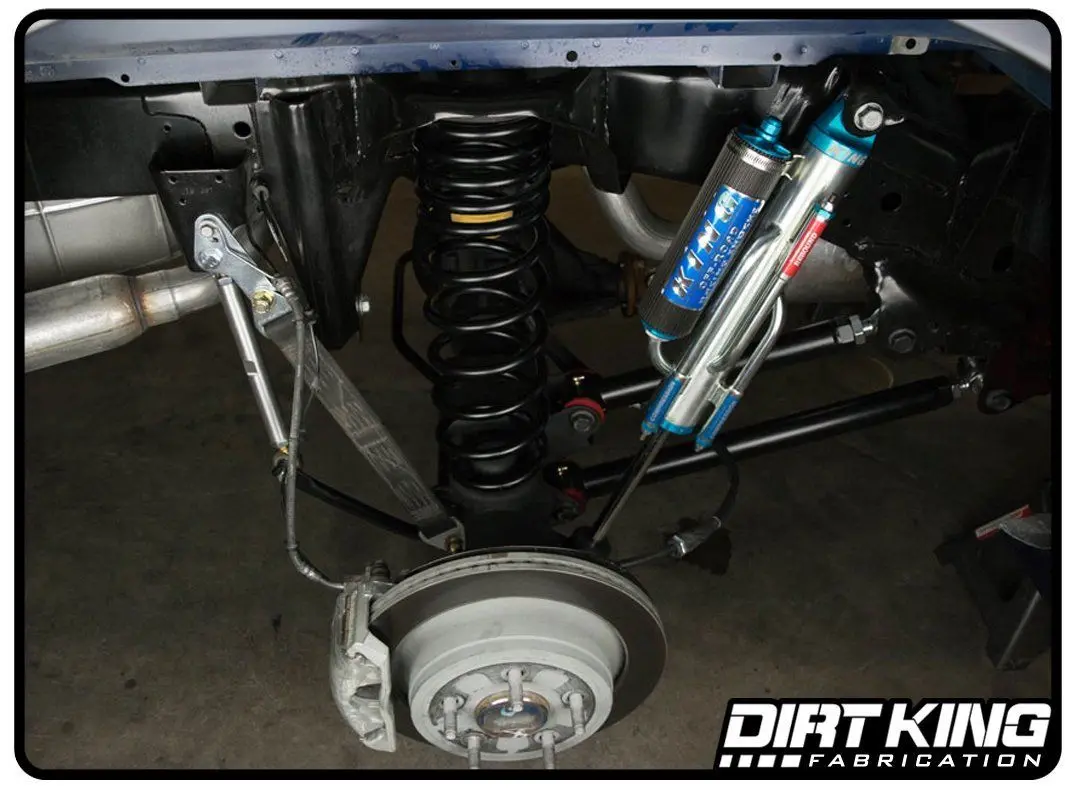

Dirt King Fabrication’s rear long travel kit for the 2009-2018 Ram 1500 was developed to be paired with Dirt King’s front long travel kit.
The kit was developed to achieve the same goal as the front suspension, drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This kit allows for 12.5” of travel when paired with the rear Dirt King spec shocks.
FITMENT:
2009-2018 Ram 1500 2WD / 4WD
KEY FEATURES:
- Complete bolt on application
- Utilizes American made FK bearings
- Heavy duty .188” wall tubing for the links
- Grease fittings for easy servicing
- 4130 chromoly track bar
- 6061 aluminum sway bar links
- Zinc plated tabbing for corrosion resistance
- 17-4 stainless steel spacers
SPECS:
- Wheel Travel: 12.5”
- Maximum Tire Size: 37”
- Maximum Back Spacing: 4.75”
- Minimum Rim Size: 17”
- Bypass Shock Size: Dirt King Spec Shocks
WHAT’S INCLUDED:
- Adjustable upper links
- Adjustable lower links
- Adjustable track bar
- Extended sway bar links
- Extended length multi-rate springs
- 16” quad wrapped limit straps
- Bolt on limit strap mounts
- Brake line relocation tabs
- Grade 8 and 12.9 mounting hardware
