Description
Key Features:
- 3D CAD designed from a 3D SCAN for a precise fit and finish
- Fits 2024+ Toyota Land Cruiser
- Fabricated from 11 GA and 13 GA sheet metal for durability

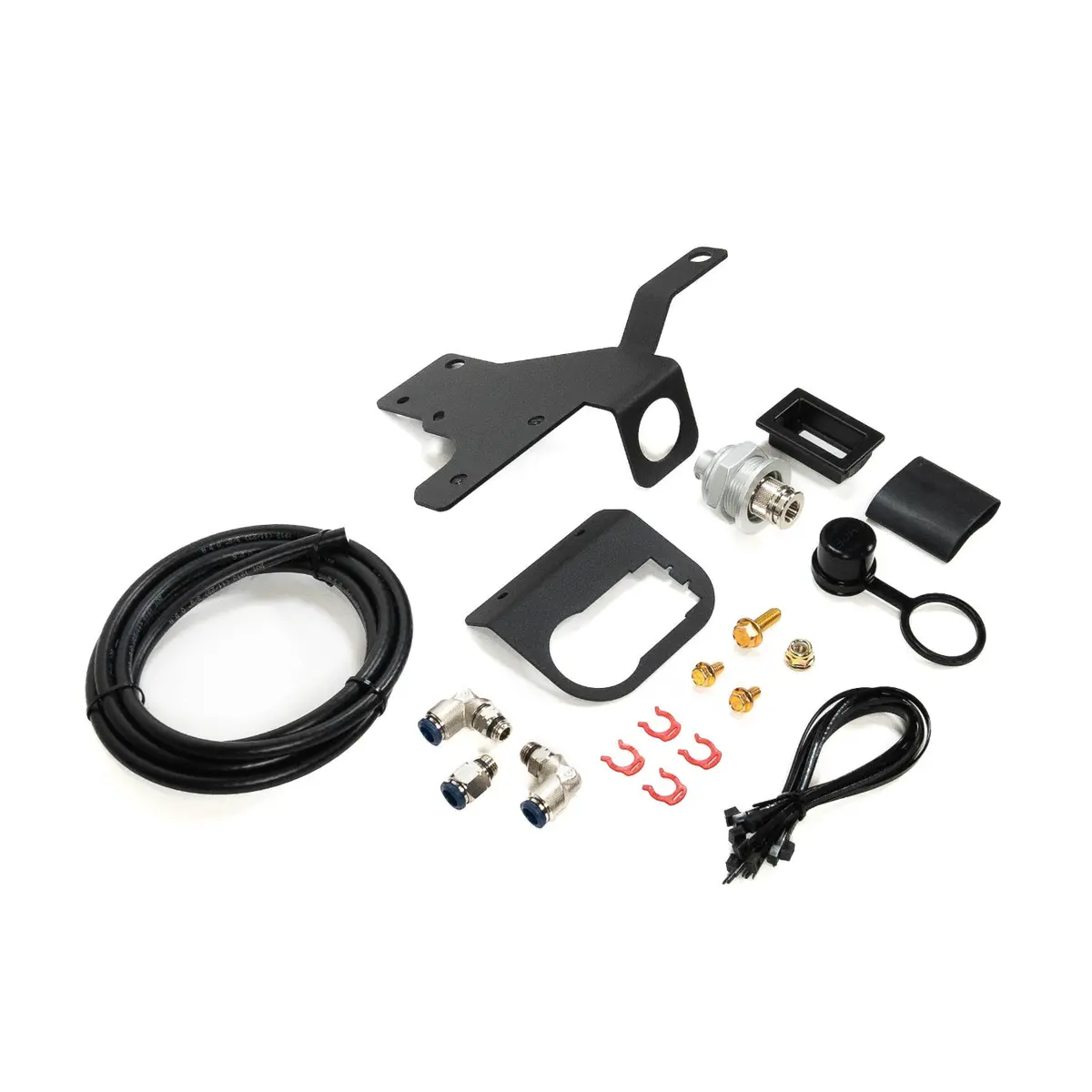

- Installs the Air Chuck next to trailer plug (replaces trailer plug bracket)
- Includes Recessed Air Chuck Bulkhead
- Keeps Quick Connect Air Chuck Sealed from environment
- Includes a Recessed Switch Mount and Template to locate the switch into the side plastic trim panel
- Ships powder coated black
- Difficulty of Installation: Easy
- Install Time: Approx. 1 Hour (not including wiring)
Air Line Tech Info:
- Premium Eaton Aeroquip Synflex Air Tubing
- Superior Abrasion Resistance
- Enhanced Flexibility and Extension
- Flow Performance
- UV Stabilized, Thermoformable
- 350 PSI Max Working Pressure, 1200 PSI Minimum Burst Pressure
- D.O.T. FMVSS 106,SAE J1131,SAE J2494-3,SAE J844 Type A
Push To Connect Tech Info:
- Premium AIGNEP SWIFTFIT Push-to-Connect Fittings
- Nickel Plated Brass Construction
- Fits: NPT/NPTF, BSPP, BSPT and BSP threads
- Reduced Overall Length
- 290 PSI Max Working Pressure
installation instructions
