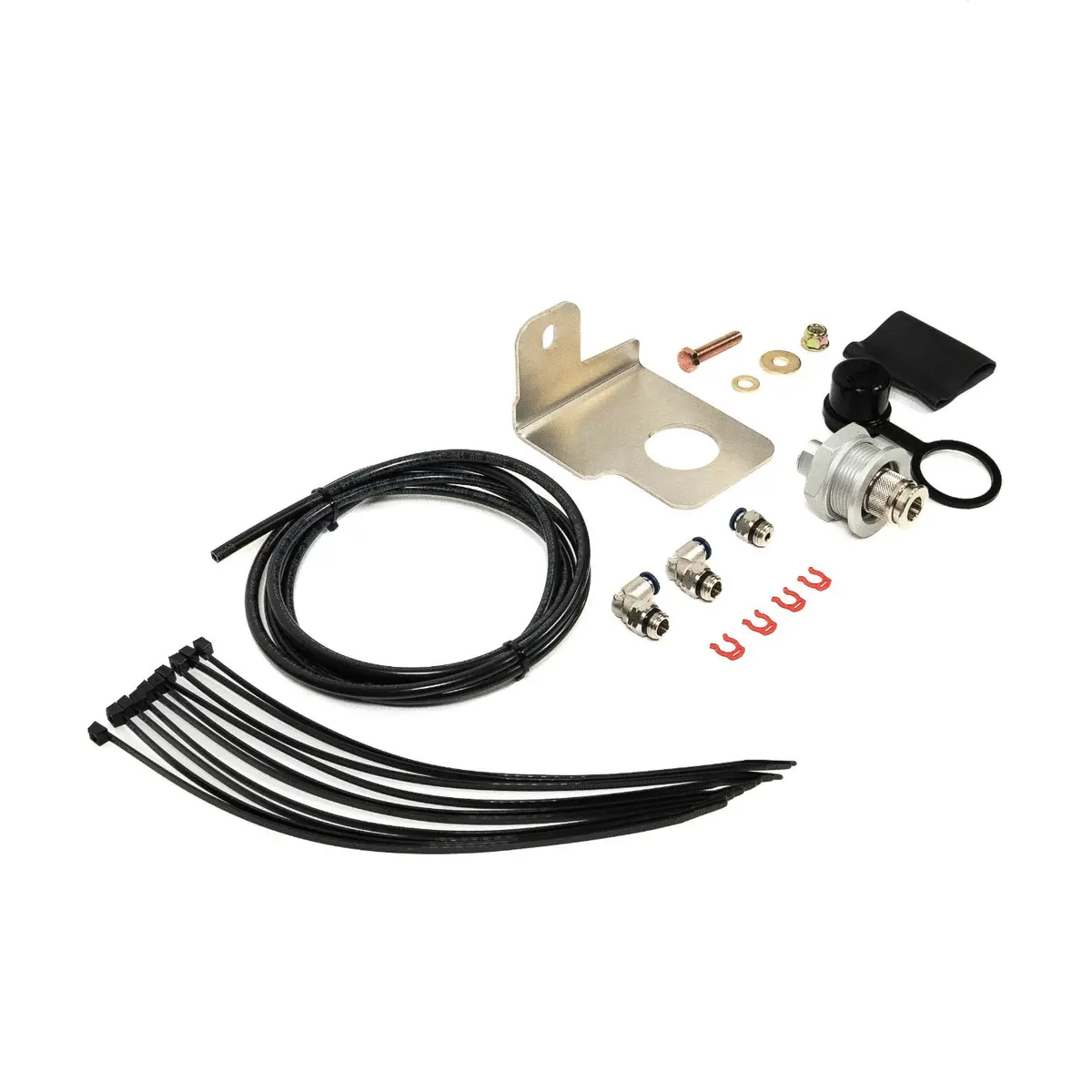

SDHQ ’24+ Ranger Raptor Air Chuck and Switch Mount Kit

Description

key features:

• • 3D CAD Designed for a OEM Quality Fit and Finish
  • Utilizes 11 Ga Stainless Steel for the mounting bracket
  • Includes Hardware to mount the support bracket to the vehicle
  • Locates the air chuck in the rear bumper and includes a cutting template for putting the ARB Switch into the inverter panel in the bedside
  • Ships Raw Stainless Steel
  • Difficulty of Installation: Easy
  • Approximate Install Time: 1 hour (not including wiring)

Air Line and Fitting Features:

• • Premium Eaton Aeroquip Synflex Air Tubing
    • • Superior Abrasion Resistance
      • Enhanced Flexibility and Extension
      • Flow Performance
      • UV Stabilized, Thermoformable
      • 350 PSI Max Working Pressure, 1200 PSI Minimum Burst Pressure
      • D.O.T. FMVSS 106,SAE J1131,SAE J2494-3,SAE J844 Type A
  • Premium AIGNEP SWIFTFIT Push-to-Connect Fittings
    • • Nickel-Plated Brass Construction
      • Fits: NPT/NPTF, BSPP, BSPT and BSP threads
      • Reduced Overall Length
      • 290 PSI Max Working Pressure

installation instructions
