SDHQ-built billet aluminum dual battery terminal kit for 2017–2019 Ford F-250, F-350, and F-450 Super Duty trucks

Description

video overview:

Upgrade your 2017-2019 Ford Super Duty (F250/F350/F450) OEM sheet metal battery terminals with our Billet 6061 Aluminum Battery Terminals. This simple upgrade allows you to run multiple off-road accessories from your main battery or secondary battery without splicing and cutting wires.

VEHICLE FITMENT:

• 2017-2019 Ford Super Duty (F250/F350/F450)
  If you have a 2020-Current Super Duty we have a Billet Battery Terminal Kit as well
  ’20-22 Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit
• This kit is designed for Super Duty owner with a dual battery set up.
  From Ford, there is the factory option to get dual battery in all Super Duty’s. This kit will not allow a customer to upgrade to a dual battery, this kit only includes the terminals and required hardware to use with dual batteries.
• If you have a single battery Ford click here for your single battery terminal upgrade kit
  Let’s go!

KEY FEATURES:

• 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
• Upgrades factory sheet metal terminals.
• Positive and Negative Billet 6061 Aluminum Terminals.
• Cutting the factory terminals off is required.
• 1-2 AWG Copper Compression Lugs included to replace terminals.
• (2) ⅜”, (1) 5/16” and (2) ¼” mounting options for accessories.
• Stainless Steel Hardware with included Anti-Seize Compound.
• Recommended for use with sealed batteries.
• Upgraded 16” Negative 6GA Battery to Body wire included.

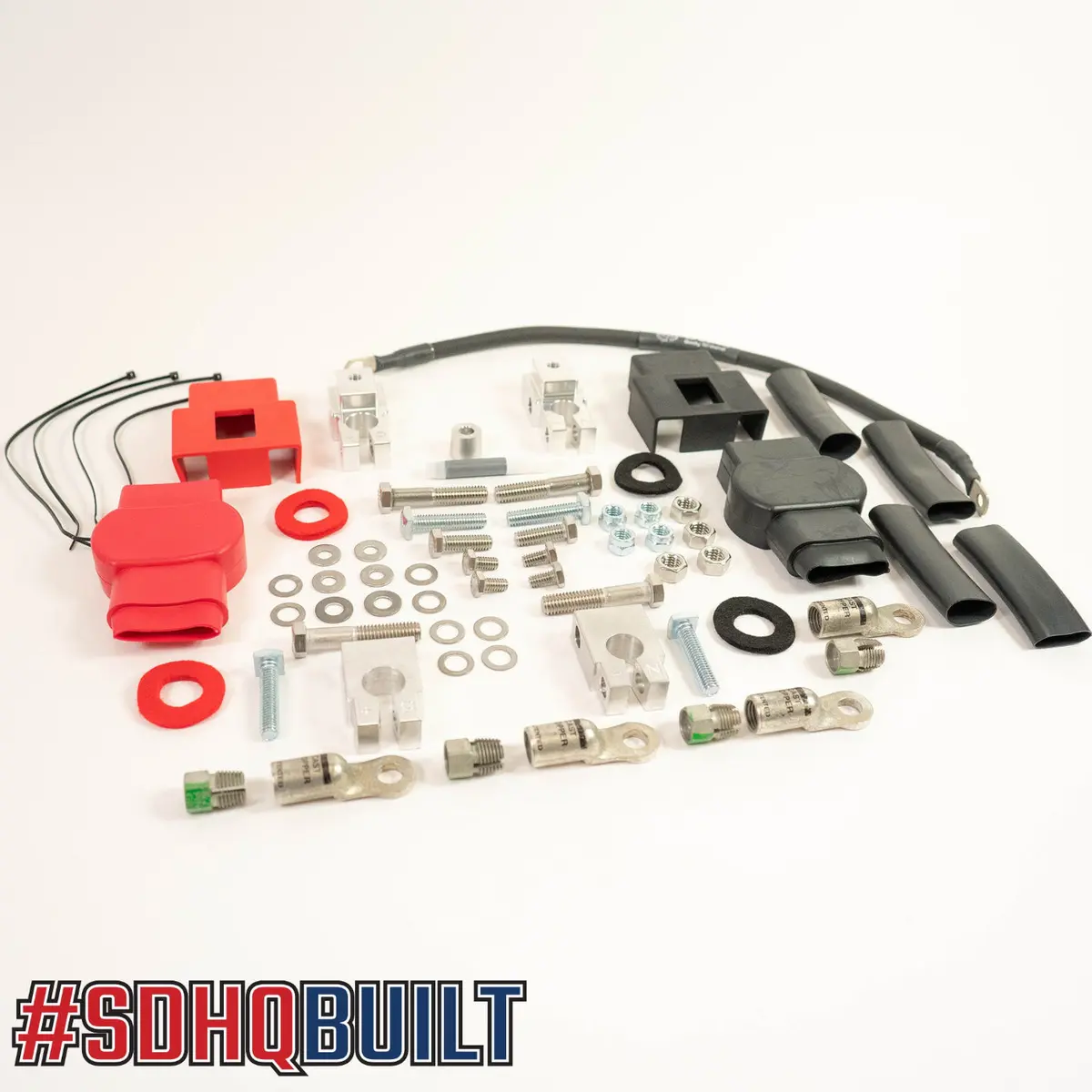

WHAT’S INCLUDED:

• SDHQ Built Complete Billet Battery Terminal Kit – SDHQ-02-3003-C2 (Main Battery)
• QTY 1. Billet Positive Battery Terminal
• QTY 1. SDHQ Billet Negative Battery Terminal
• QTY 1. SDHQ Negative Terminal Stud
• QTY 1. Hardware Kit
• QTY 1. Protective Positive Boot
• QTY 1. Protective Negative Boot
• QTY 1. Red Post Washer
• QTY 1. Black Post Washer

• SDHQ Built Billet Secondary Battery Terminal Kit – SDHQ-02-3003-C1 (Secondary Battery)
• QTY 1. Billet Positive Battery Terminal
• QTY 1. SDHQ Billet Negative Battery Terminal
• QTY 1. Protective Positive Boot
• QTY 1. Protective Negative Boot
• QTY 4. 1-2 Gauge Compression Lug Nut Kit
• QTY 1. 6GA Negative Battery to Body 16″ Ground Cable

Torque Specifications

• Torque ¼” – 20 Hardware to 4 ft-lb.
• Torque 5/16” – 18 Hardware to 8 ft-lb.
• Torque ⅜” – 16 Hardware to 18 ft-lb.

🔧 INSTALL INSTRUCTIONS 🔧
