SDHQ-Built Switch Pro Mounting Kit for 2021–2024 Ram TRX

Description

secure and easy-to-reach

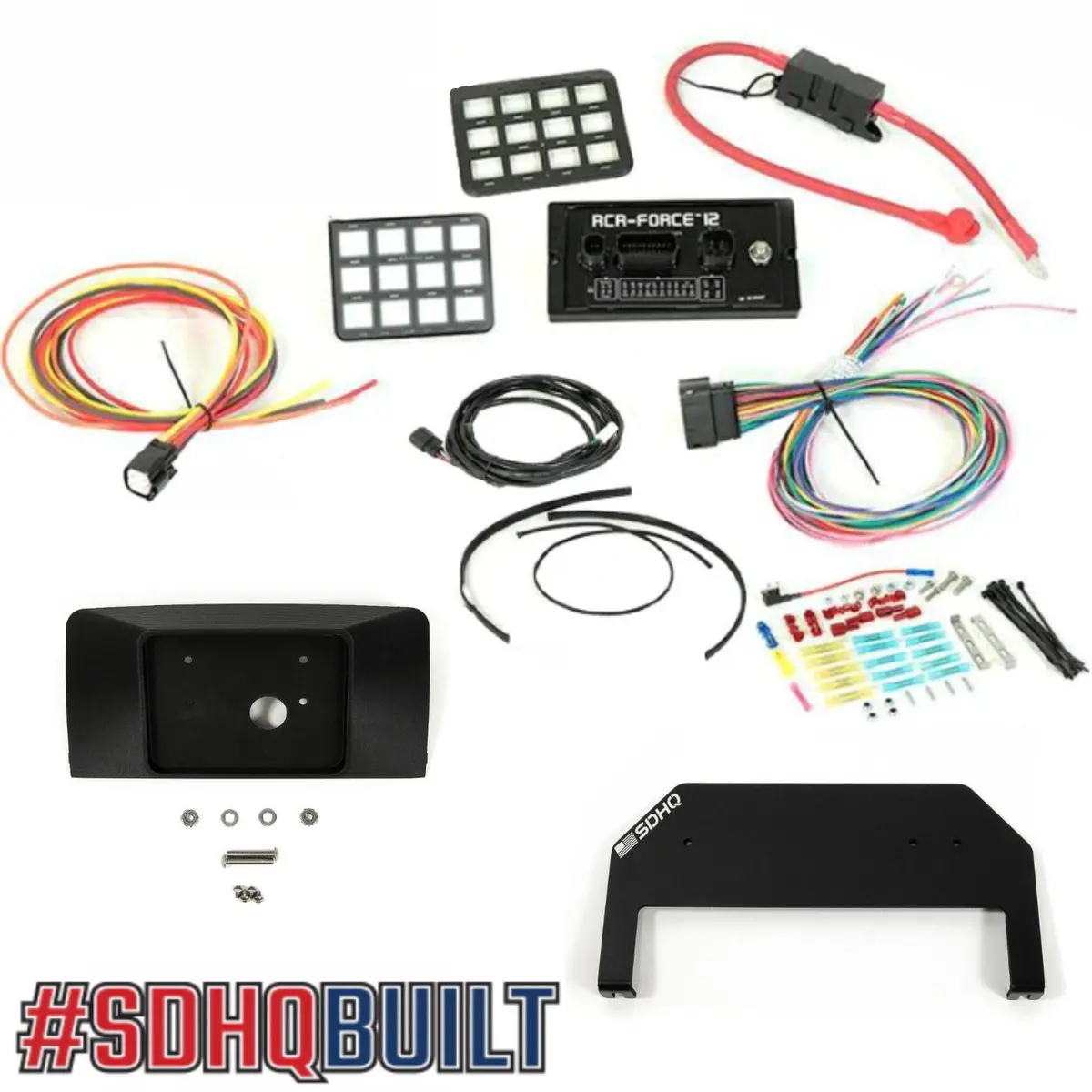

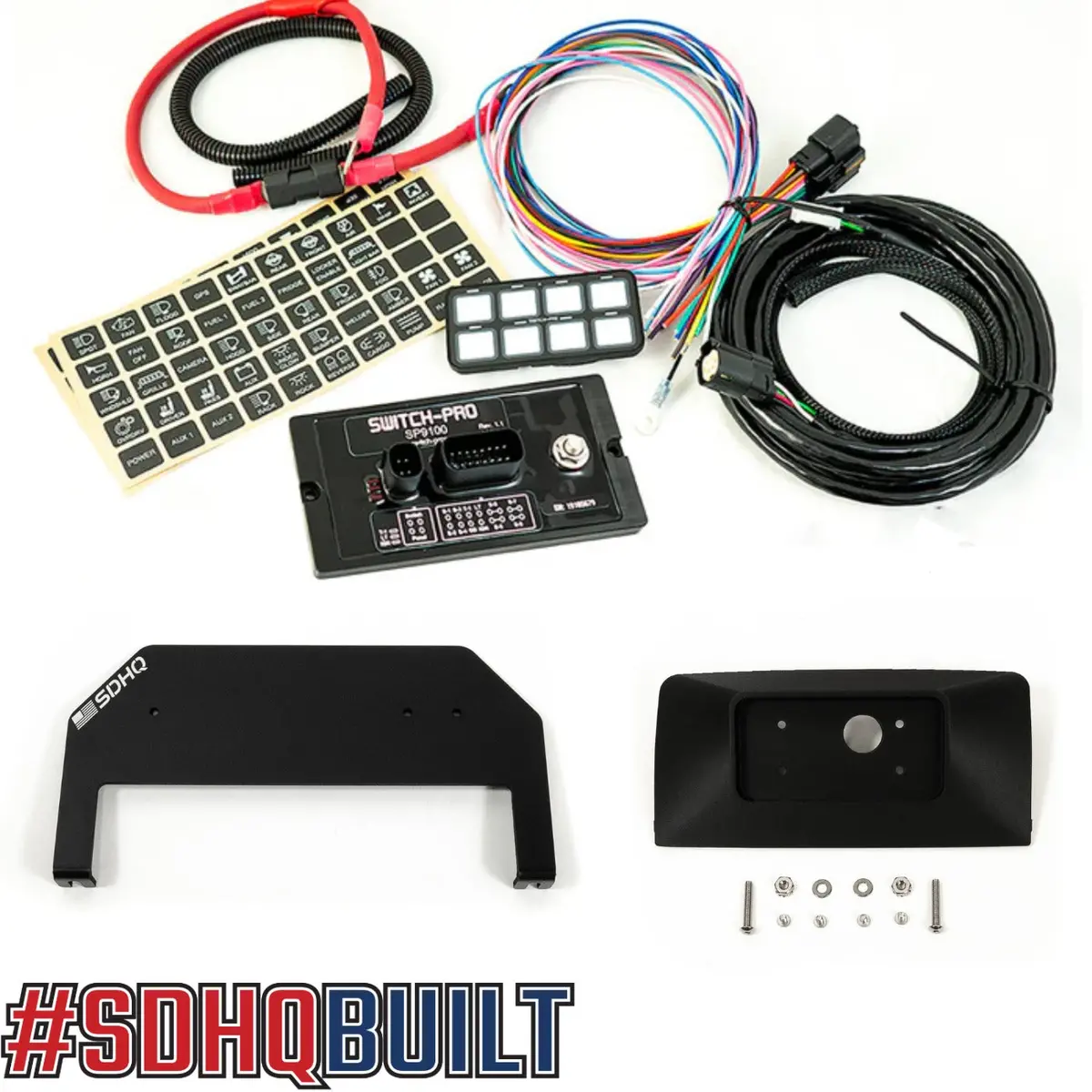

Our SDHQ Built Switch-Pros Keypad Conversion Mount for the Ram TRX allows you to convert the sunglass holder into a mount for the keypad component of the Switch-Pros SP-9100 or RCR-Force-12 in a secure and easy-to-reach location, allowing you to control your off-road lighting and accessories with ease.

This SDHQ Built keypad mount is 3D printed giving this keypad mount a direct from the factory level of fitment and quality. *Switch-Pros Not Included*

interior mount KEY FEATURES:

• 3D CAD Designed for a precise fit and finish.
• Fits both non-upfitters and upfitters  overhead consoles
• Fits: 2021-2024 Ram TRX
• Fitments allows for 9100 and RCR12
• Direct replacement of overhead sunglass holder.
• Drilling ¾” hole required to route switch pro wire

🔧 INSTALL INSTRUCTIONS 🔧

Under Hood Power Module Mount Key Features:

• 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
• Mounts to existing factory mounting points in the 2021-Current RAM 1500 TRX
• Simple and clean solution for mounting the Switch-Pro Power Module.
• Mounts close to battery for ease of wiring.
• Utilizes Switch Pro Hardware for mounting the Power Module.
• Laser cut from 1/8″ Aluminum
• Anodized Black.

🔧 INSTALL INSTRUCTIONS 🔧

Switch Pros SP9100 Features

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• LED Input Status Indicators for easy troubleshooting on power module

Specifications

• 125amp capacity with 8 outputs
• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H
• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module

What’s Included?

• Switch Panel and Power Module
• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse
• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 16-pin color coded output harness
• Detailed installation Guide

Switch Pros RCR Force 12 Features:

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• 6 Programmable LED Status indicators

Specifications

• 150amp capacity with 17 outputs
• 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
• 11 rated @ 15A, which can be combined for larger loads
• 1 Low Side driver switch, rated @ 2A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
• Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
• On-On-Off logic
• Touch Panel lockout
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Safety Lockout for specific switches
• Time Delay off
• No bulky relay box
• Up to 4 output wires can be assigned to 1 switch
• Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module
