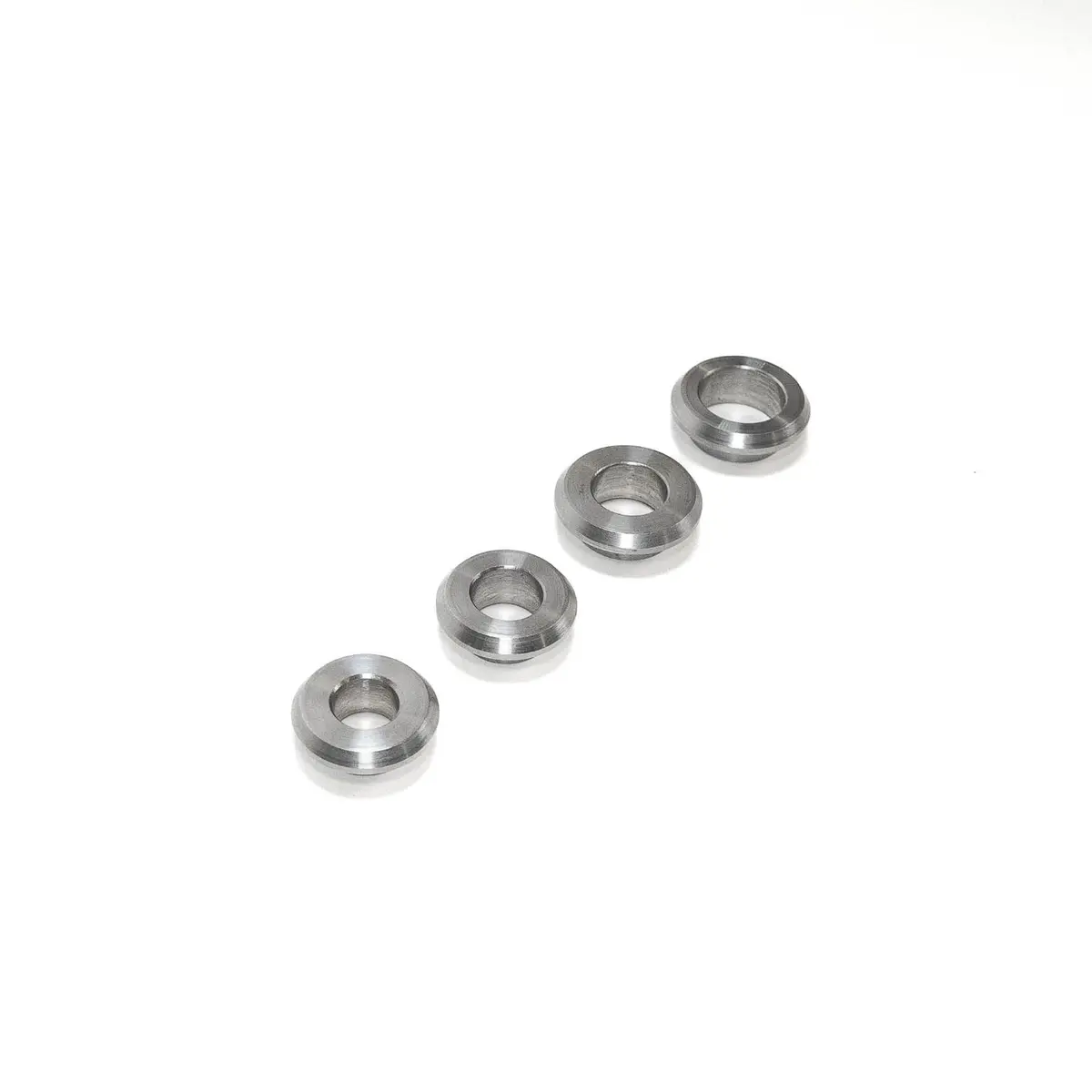

SDHQ Precision-Machined Stepped Weld Washers

Description

features:

• 3D CAD designed for ultimate precision and a perfect fit
• Machined from a solid piece of 4130 Chromoly

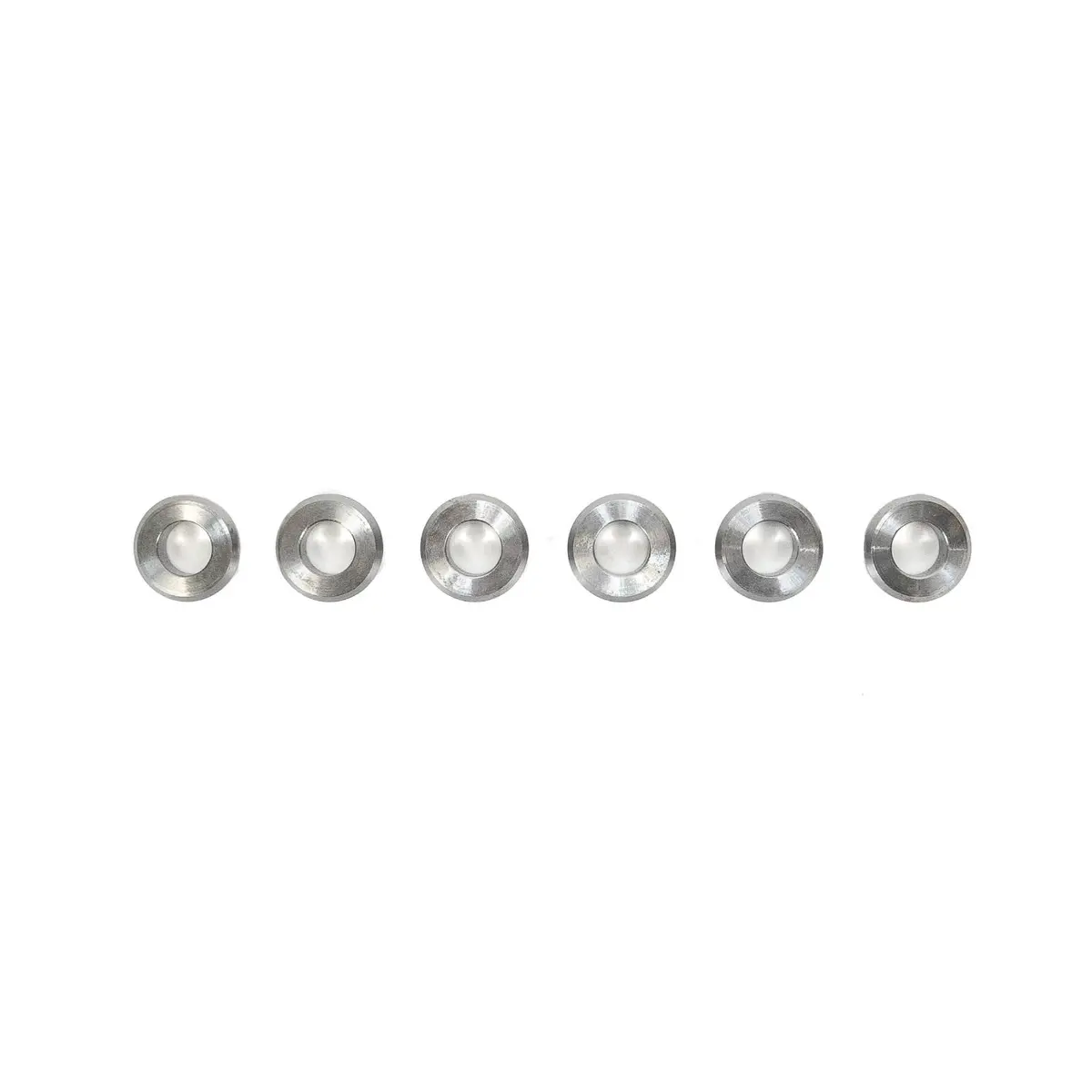

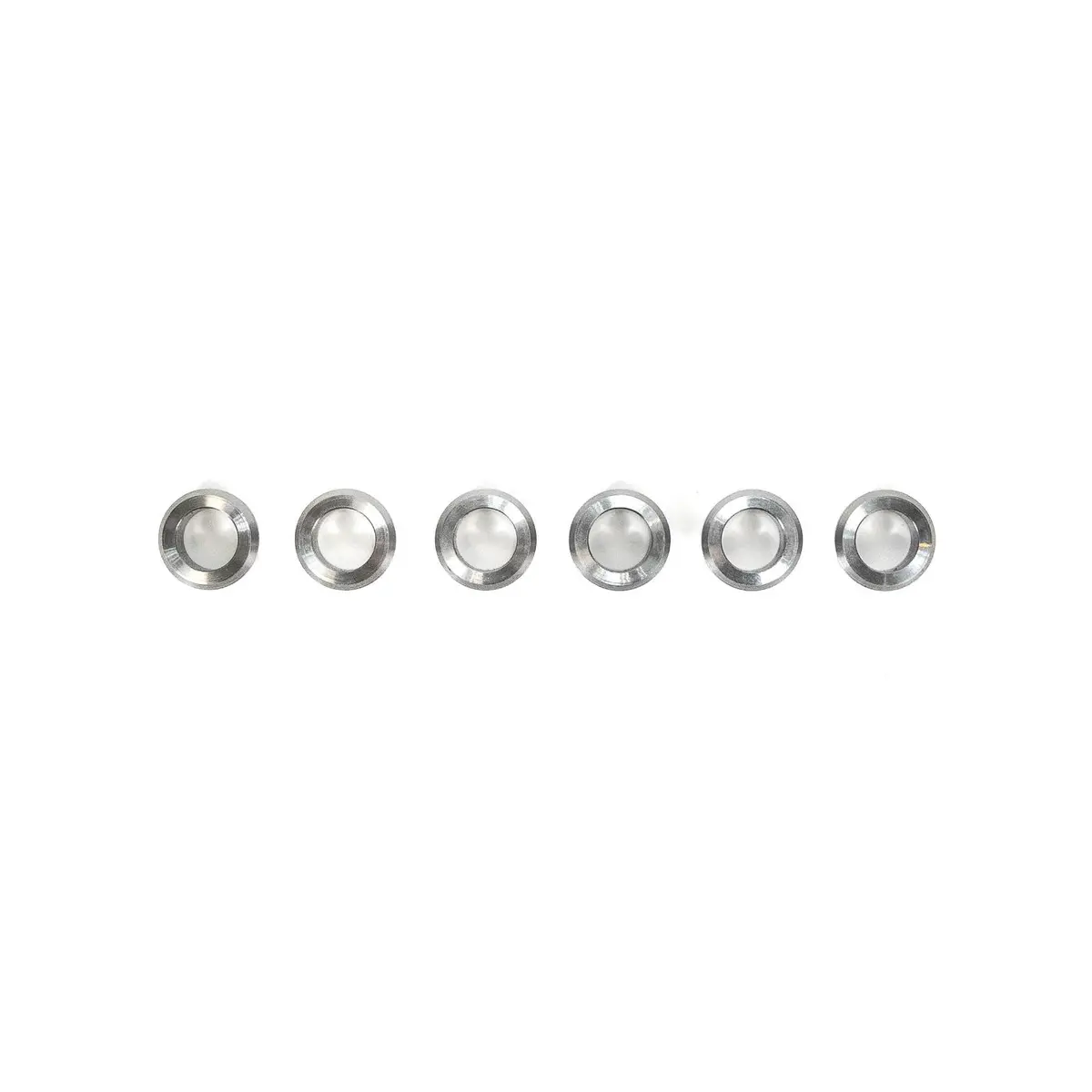

• Sold in packs of 6

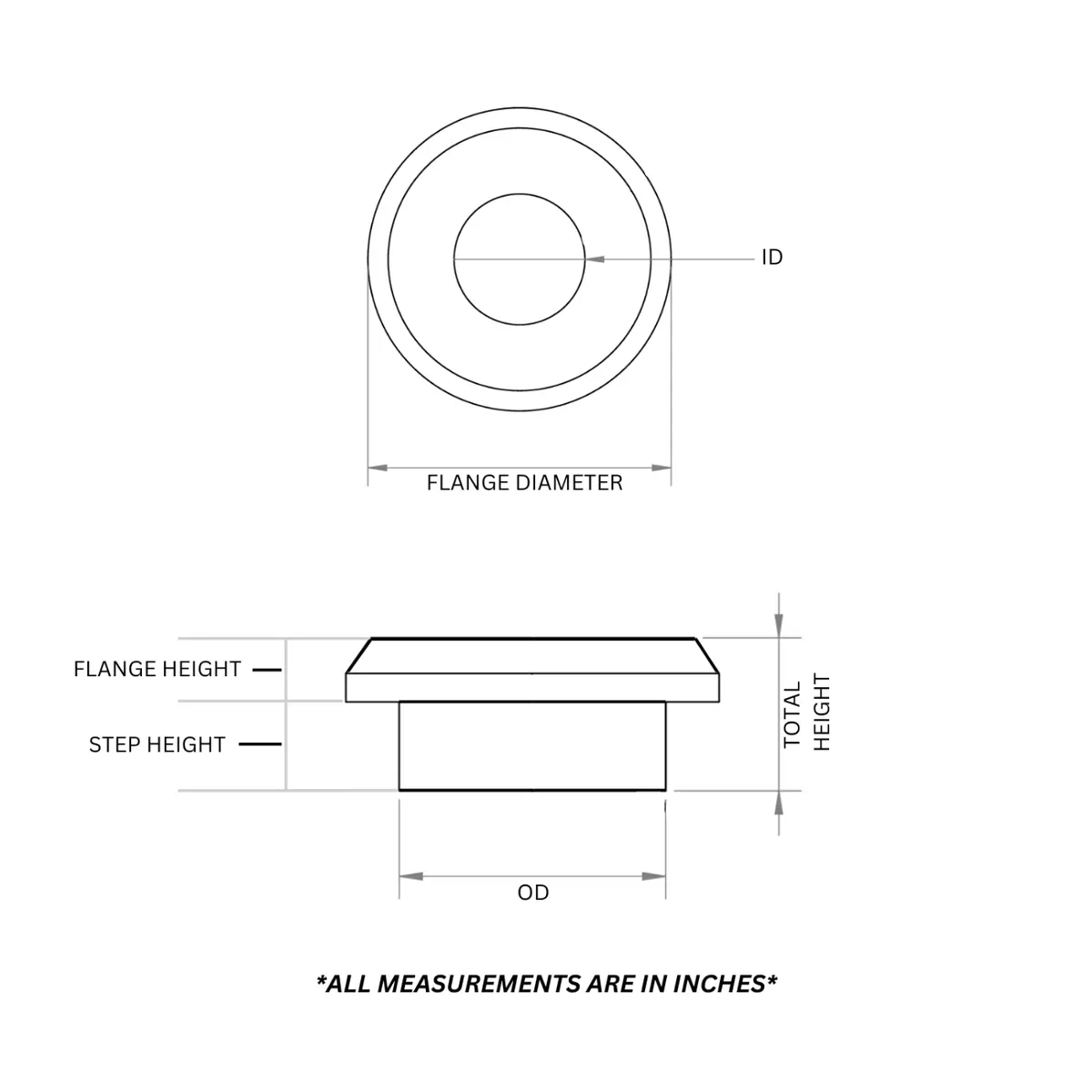

SPECS

• Part Number: SDHQ-WWS-12
  • • Inside Diameter (ID)/Bolt Hole: 0.500″ (1/2″)
    • Outside Diameter (OD): 0.750″
    • Flange Diameter: 1.125″
    • Flange Height: 0.180″
    • Step Height: 0.250″
    • Total Height: 0.430″

• Part Number: SDHQ-WWS-916
  • • Inside Diameter (ID)/Bolt Hole: 0.563″ (9/16″)
    • Outside Diameter (OD): 0.750″
    • Flange Diameter: 1.125″
    • Flange Height: 0.180″
    • Step Height: 0.250″
    • Total Height: 0.430″

• Part Number: SDHQ-WWS-58
  • • Inside Diameter (ID)/Bolt Hole: 0.625″ (5/8″)
    • Outside Diameter (OD): 0.875″
    • Flange Diameter: 1.250″
    • Flange Height: 0.180″
    • Step Height: 0.250″
    • Total Height: 0.430″

• Part Number: SDHQ-WWS-34
  • • Inside Diameter (ID)/Bolt Hole: 0.750″ (3/4″)
    • Outside Diameter (OD): 0.875″
    • Flange Diameter: 1.250″
    • Flange Height: 0.180″
    • Step Height: 0.250″
    • Total Height: 0.430″
