Stage 4 suspension system for 2021–2024 Ford F-150 4WD, offering a 3.5- to 4.5-inch lift with enhanced off-road performance and ride quality

Description

OVERVIEW

ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2021-24 Ford F150. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle’s performance, optimizing both normal driving conditions and more aggressive scenarios.

With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we’ve taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock’s compression damping performance over a wide range of driving scenarios.

KEY FEATURES:

• High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
• Adjustable coilovers offer 3.5-4.5″ of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
• 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8″ hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system – no cutting or welding necessary for install

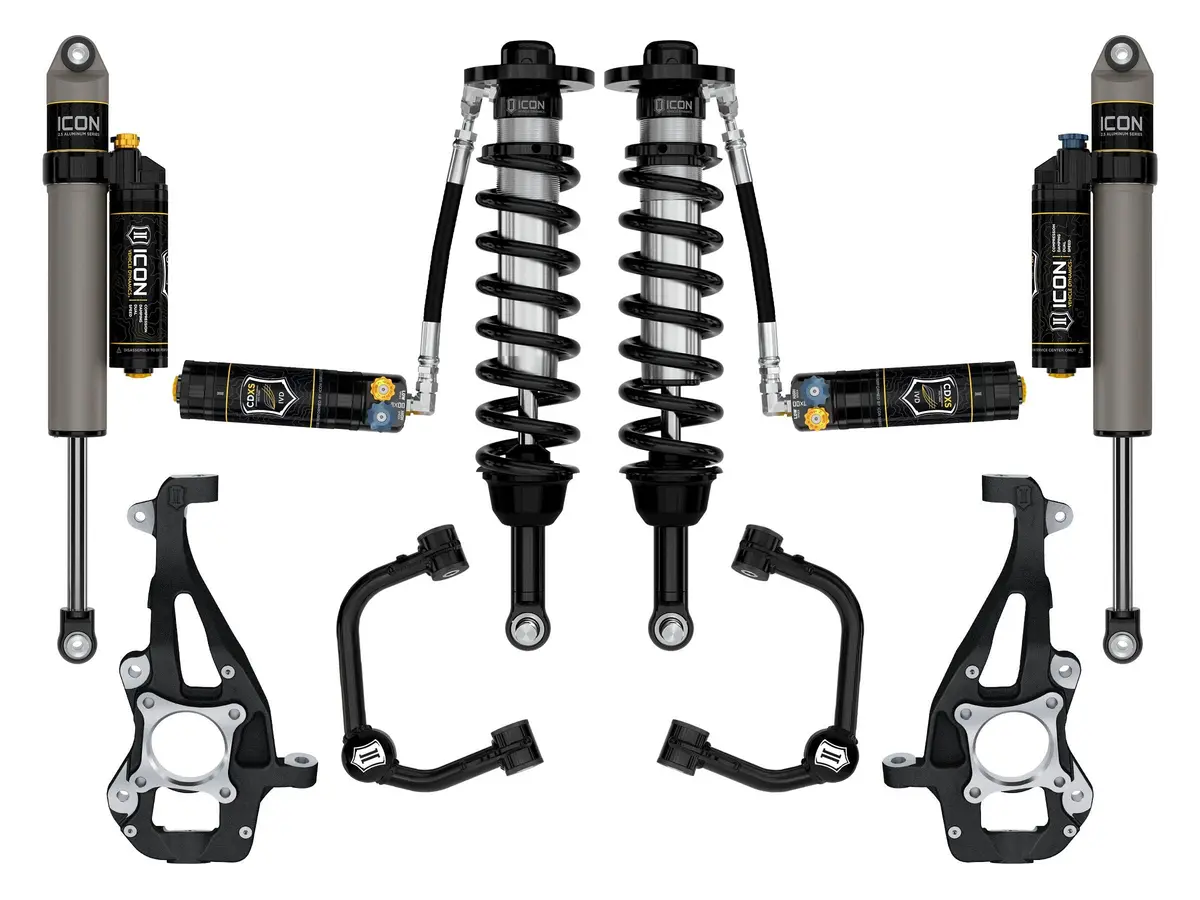

SYSTEMS INCLUDE

• 91824X: 21-24 F150 TREMOR 2.5-3″ 2.5 VS RR CDXS COILOVER KIT
• 98522DJ: 21-24 F150 TUBULAR UCA DJ PRO KIT
   or 98523DJ: 21-24 F150 BILLET UCA DJ PRO KIT
• 97721XP: 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR
• 94000: 21-24 F150 4WD FRONT KNUCKLE KIT
