Description
The Switch-Pros RCR-FORCE-12 includes twelve tactile switches, in a three-row configuration that is user-programmable, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.

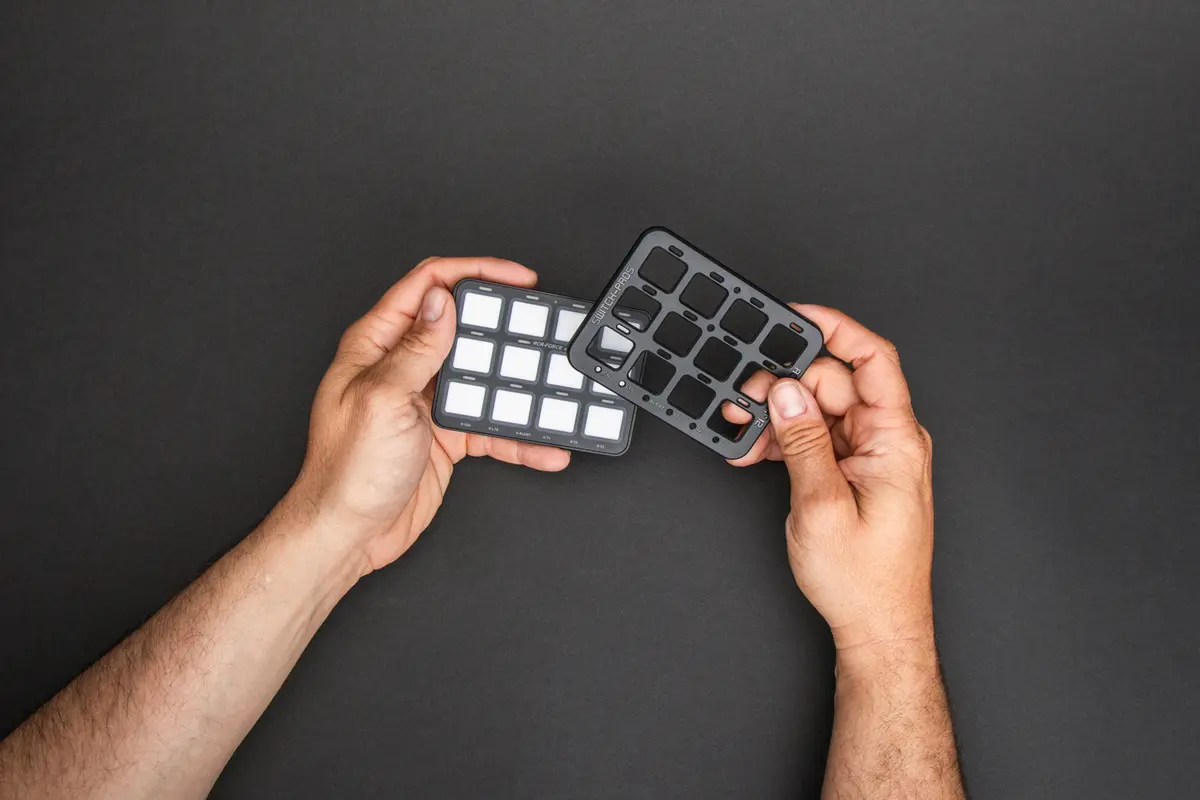

The RCR-FORCE-12 Kit includes everything required for installation, plus the all-new RCR-Touch snap on bezel, which will help the driver select switches with precision even while traveling rough terrain or wearing gloves.
Features
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- 6 Programmable LED Status indicators
Specifications
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
- 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
- Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
- No bulky relay box
- Up to 4 output wires can be assigned to 1 switch
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module
Proudly made in the USA!
