Viair 400C High-Performance 12V DC Portable Air Compressor

Description

overview

Ideal for industrial environments, VIAIR’s 400C compressor is the fastest-filling in its class. Capable of powering air horns, air suspension, and industrial pneumatic operations, the 400C flows fast and has a compact footprint for a wide range of personal and commercial applications.

FEATURES:

• 150 psi working pressure
• IP67 dust and waterproof
• Thermal Overload Protector
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

SPECS:

• CFM: 2.62 @ 0 PSI
• 12-Volt / 24-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. 12V Amp Draw: 30-Amps
• Max. 24V Amp Draw: 15 Amps
• Ingress Protection Rating: IP67
• Max Ambient Temp: +158°F
• Min Ambient Temp: -40°F

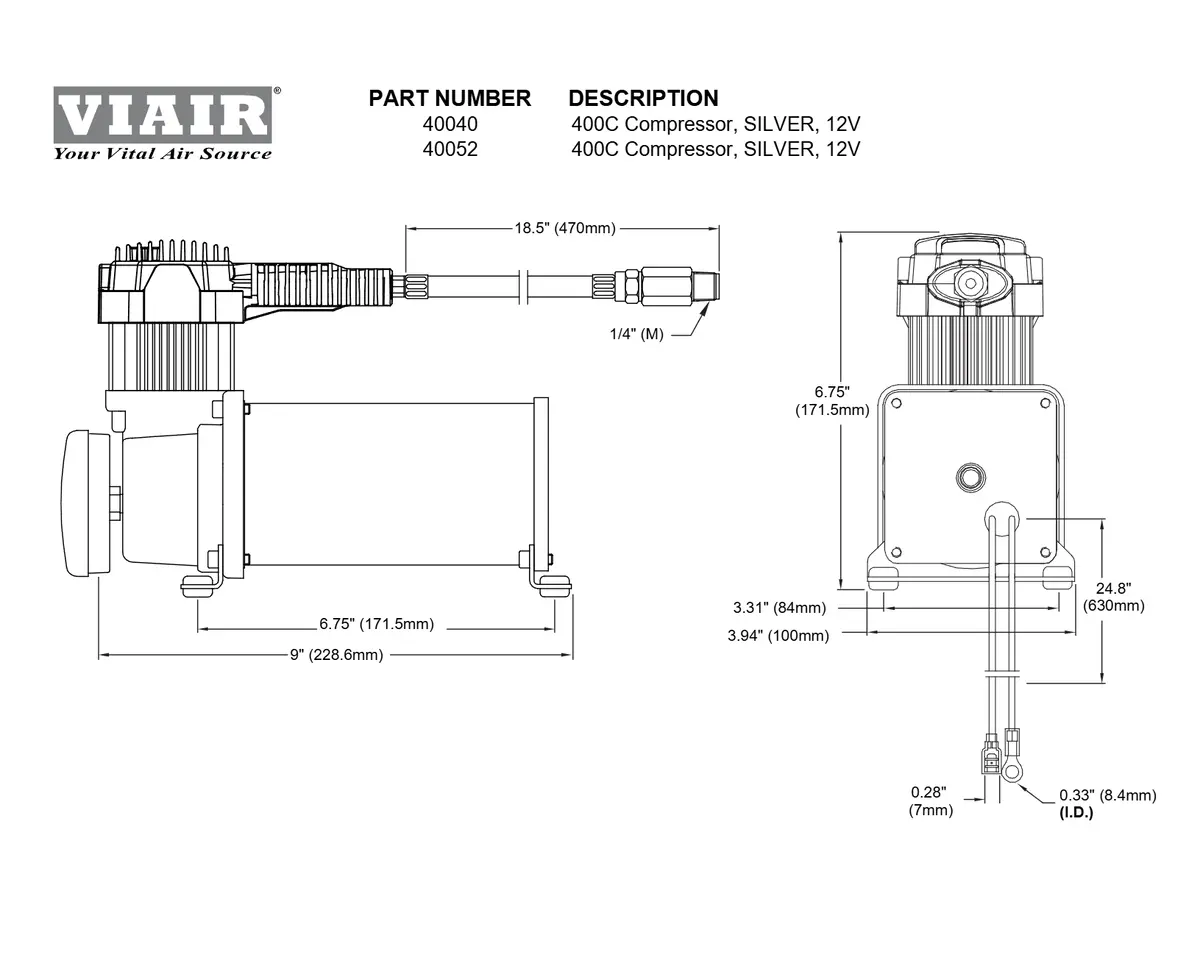

• Dimensions: 9″L x 4″W x 6.75″H
• Net Weight: 8.65 lbs.
• PN 40040: In Rush Current (A) @ 0 PSI = 84.8
• PN 40052: In Rush Current (A) @ 0 PSI = 72.8
• PN 40040: dB @ 0 PSI = 72.7
• PN 40052: dB @ 0 PSI = 72.2

PLEASE NOTE:

Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
