Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit — purpose-built for Husqvarna FE, FE-S, FE-W, and TE motorcycles. Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W — making it the ideal high-performance upgrade for riders who previously lacked a compatible premium option.
Paired with the signature XL Trail Lens, the XL40 produces both vertical and horizontal beam patterns with exceptional near-field and peripheral visibility. The Trail Lens redistributes center beam intensity to eliminate harsh hot spots — improving clarity through vertical transitions, quick elevation changes, and tight corners. The result is a smooth, evenly distributed field of light that inspires confidence in the most demanding terrain.

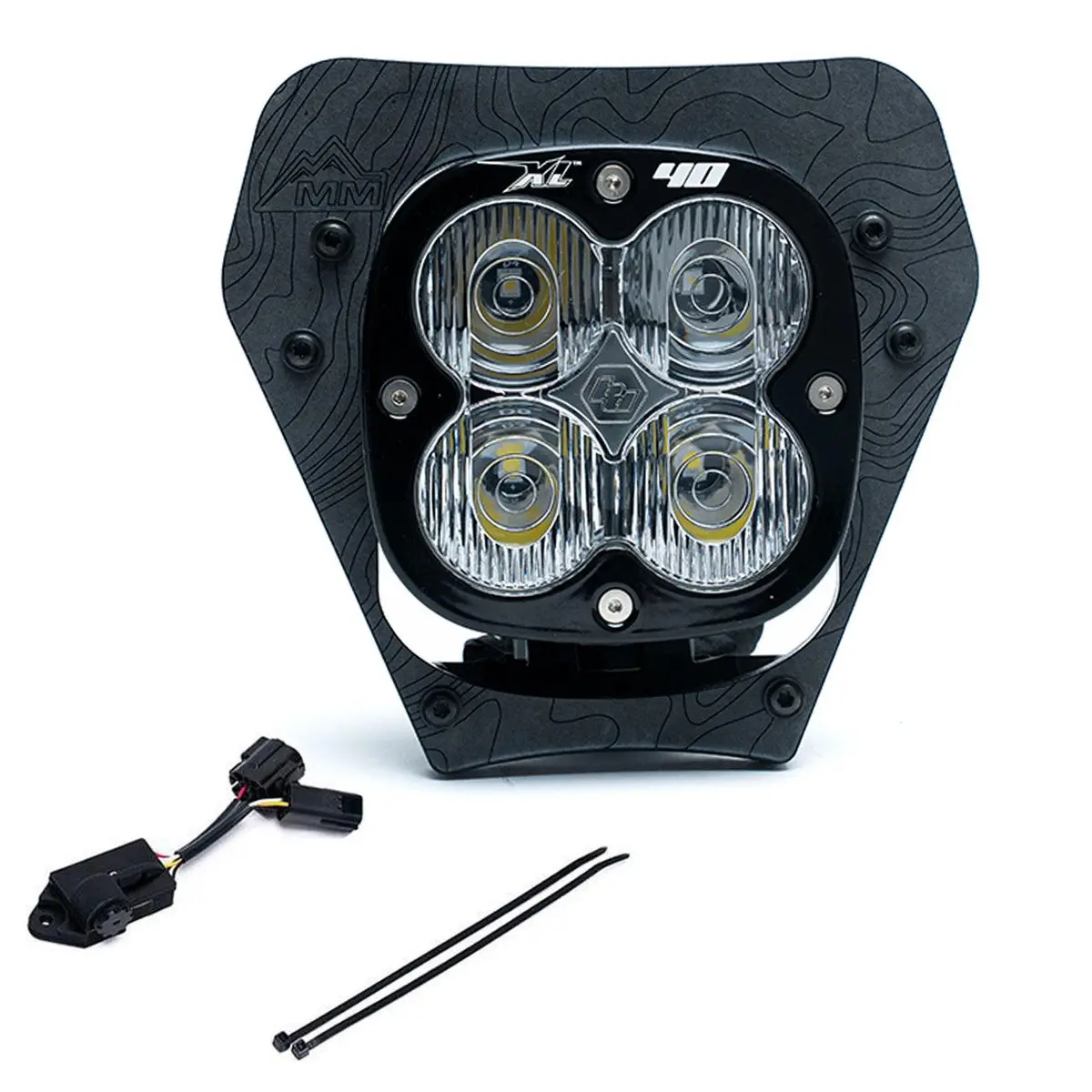

This kit replaces the OEM headlight unit and includes the Motominded mount for precise fitment and easy installation.
Kit Includes:
- (1x) XL40 – Trail Lens Clear w/ 2024+ OEM Connector
- (1x) Motominded XL Bracket
- All Necessary Mounting Hardware
XL40 Specifications (per light):
- Lumens: 5,224 (Hi)/ 1,435 (Low)
- Watts/Amps: 43.5W/3.4A @ 12.8V
XL40 ELS Score:
- XL40, Trail lens, high beam: 92°/5.9/226’/5224
- XL40 Trail lens, low beam: 74°/5.9/119’/1435
The Baja Designs Advantage
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Fits:
- Husqvarna FE501S 2024-2025
- Husqvarna FE501W 2024-2025
- Husqvarna TE150 2024-2025
- Husqvarna TE300 2024-2025
- Husqvarna FE350W 2024-2025
- Husqvarna TE250 2024-2025
Specs:
| Product Type | XL40 |
| Overvoltage Protection | Built-In |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Mounting Hardware Material | Stainless Steel |
| Universal or Specific | Universal |
| Wiring Harness Included | No |
| Wattage (W) | 43.5 |
| Housing Material | Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Trail; Clear |
| Brightness (Lumens) | 5,224 (Hi) / 1,435 (Low) |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Trail |
| Average Rated Life (hr.) | 49930 |
| Amperage Rating (A) | 3.4 |
| High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Weight (lbs.) | 2.45 |
| Length (in.) | 4.43 |
| Height (in.) | 4.43 |
| Depth (in.) | 3.65 |
