1996–2002 Toyota 4Runner Upper Control Arm Kit

Description

PRODUCT OVERVIEW:

Total Chaos Fabrication’s upper control arms for the 1996-2002 Toyota 4Runner are constructed out of 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.

KEY FEATURES:

• TC upper control arms combined with extended length coil over shocks will allow for up to 1” of additional wheel travel.
• Designed to maintain factory alignment specs on vehicles with 1.5″-3″ lift kits.
• 1″ I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.
• CNC machined slug adapters press into the spindle and convert the factory ball joint to a 1″ uniball for added strength and wheel travel
• Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.
• Urethane bushings reduce deflection compared to stock rubber bushings.
• Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
• 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Complete grade 8 hardware kit is included.
• * Not compatible with Tuff Country lift kit.

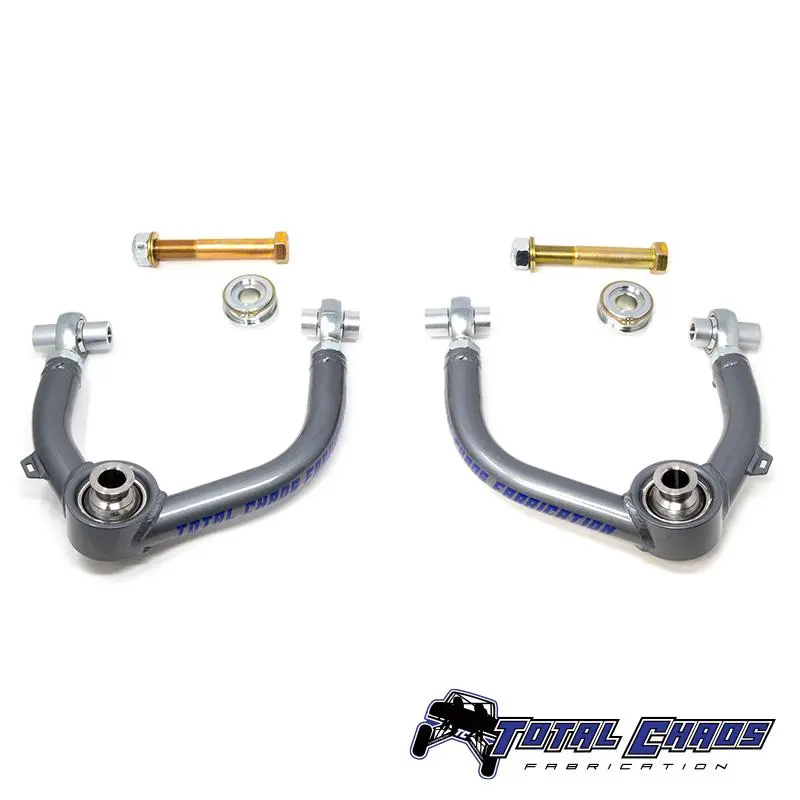

OPTIONAL HEIM PIVOT UPGRADE:

• TC includes 3/4″ chromoly heim joints for the pivots.
• Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber. Shipped preset to O.E. location.
• Designed for vehicles with a 6″ or higher drop bracket lift kit.
