Description
PRODUCT OVERVIEW:

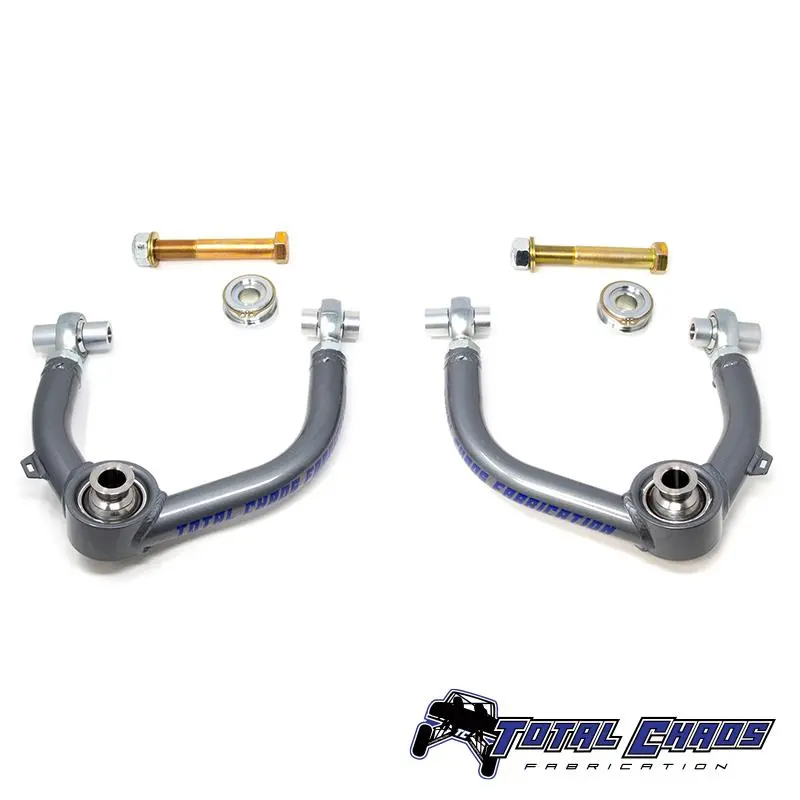

Total Chaos Fabrication’s upper control arms for the 1996-2004 Toyota Tacoma are designed to maintain factory alignment specs on vehicles with 1.5″-3″ lift kits.
KEY FEATURES:
- TC upper control arms combined with extended length coil over shocks will allow for up to 1” of additional wheel travel.
- 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
- 1″ I.D. uniballs feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise and reduce maintenance.
- CNC machined slug adapters press into the spindle and convert the factory ball joint to a 1″ uniball for added strength and wheel travel
- Custom profile upper and lower hi-misalignment spacers are machined from 17-4 stainless-steel to maximize strength and wheel travel.
- Urethane bushings reduce deflection compared to stock rubber bushings.
- Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly.
- 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
- Complete grade 8 hardware kit is included.
- * Not compatible with Tuff Country lift kit.
OPTIONAL HEIM PIVOT UPGRADE:
- TC includes 3/4″ chromoly heim joints for the pivots.
- Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber. Shipped preset to O.E. location.
- Designed for vehicles with a 6″ or higher drop bracket lift kit.
- * Not compatible with Tuff Country lift kit.
