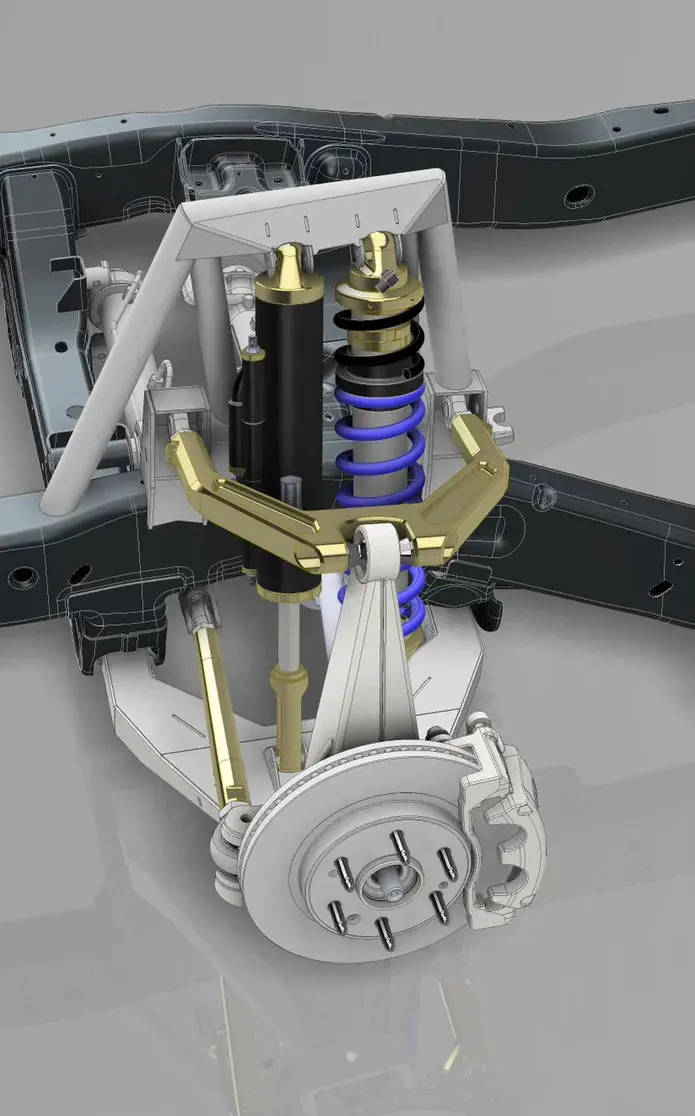

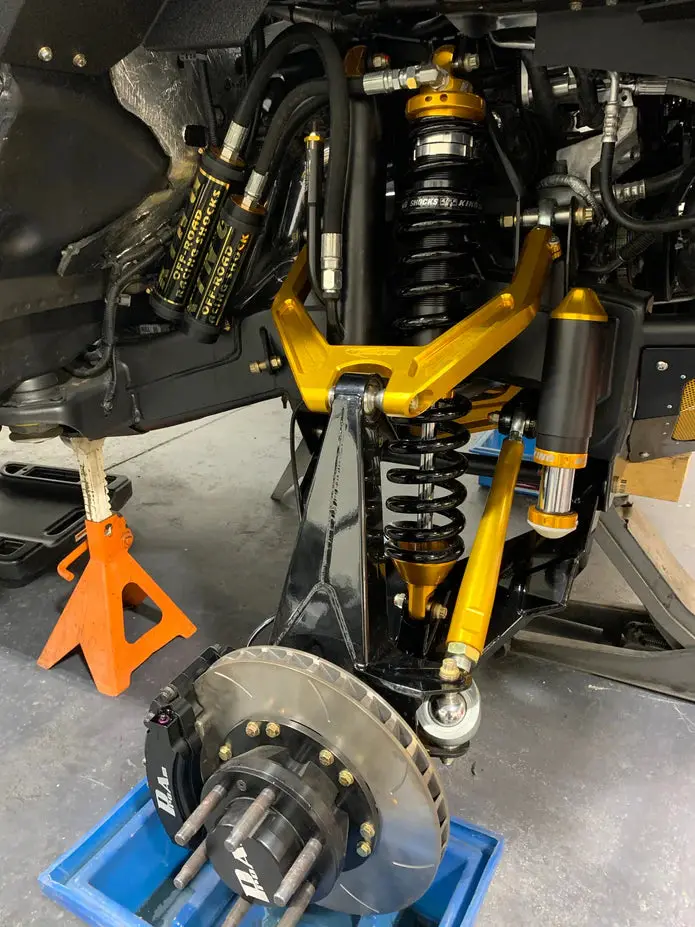

Chevrolet and GMC 1500 4WD Long-Travel Suspension Kit (2007–2018)

Description

Details:

• Fits 2007-2018 Silverado/Sierra 1500 4WD trucks
• Retains 4WD
• Includes extended axles
• 4130 TIG welded trophy truck quality lower arms
• 4130 TIG welded trophy truck quality spindles
• CNC machined billet upper arms
• CNC Machined billet tie rods
• CNC machined inner steering clevis
• Includes 4130 TIG welded shock mount options for 8” stroke or 10” stroke shocks
• Does NOT include shocks as there are many options to choose from
• Fits 3.0” coilover and 4.0” bypass
• 2.5” bump stop hits off upper arm
• Includes limit straps
• Includes lower pivot doubler plates
• 10” shock- shock mount requires moving of oem brake booster and everything above the wheel wells
• Up to 40” tire with a lot of work
• Clears 37” tire with minimal work
• Requires fiberglass fenders
• About 92” wide track width
• 10” shock kit will pull 17” travel
• 8” shock kit will pull 14” travel
• Kit utilizes oem hubs and brakes
• Also available is splined sway bar upgrade
• Does NOT include anything for the rear
• Email us about shock size options that will best suit your needs
