Heavy-Duty 4WD Long-Travel Suspension Upgrade for Chevrolet Colorado, GMC Canyon, and ZR2 Models (2015–2022)

Description

ALL NEW DESIGN!

• CNC Machined Billet upper arms
• CNC Machined Billet tie rods
• Fabricated 4130 tig welded lower a arms
• Fabricated 4130 tig welded and machined uprights
• Fabricated 4130 tig welded upper arm mounts
• Includes all uniballs, heim joints and spacers
• Includes custom front axles
• Now includes all 12 point aircraft hardware
• Now includes x4 Kibbetech limit straps
• Now includes 4130 Tig welded weld on shock mount for 8” coilover and bypass (2.5” coilover and up to 3.5” bypass fit with ease)
• Minimum 4.5” backspace wheels
• 35” or bigger tires with modifications
• Requires fiberglass fenders
• Select “KIT ONLY” for no shocks
• Select “WITH SHOCKS” for standard Blue king shocks 2.5” coilover and 3.0” bypass and 2.0” bumpstop
• Select “WITH CUSTOM SHOCKS” for 2.5” coilover and 3.0” bypass and 2.0” bumpstop in custom black and gold colors, compression adjusters on coilover resis, all 4 finned reservoirs, black coil springs, black resi hoses

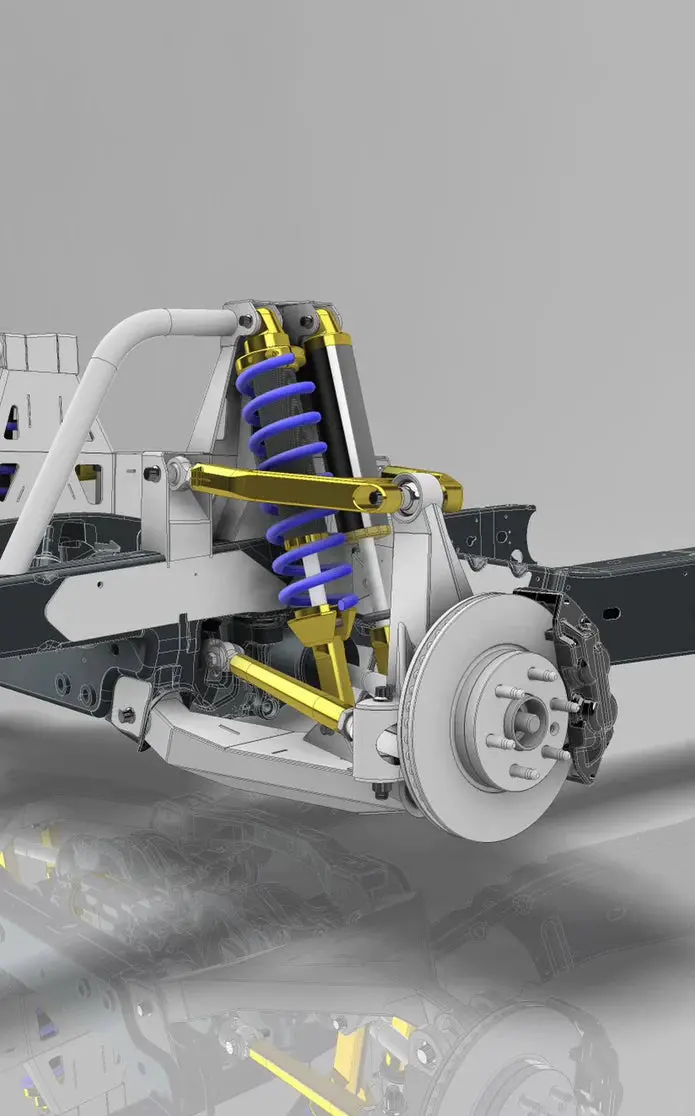

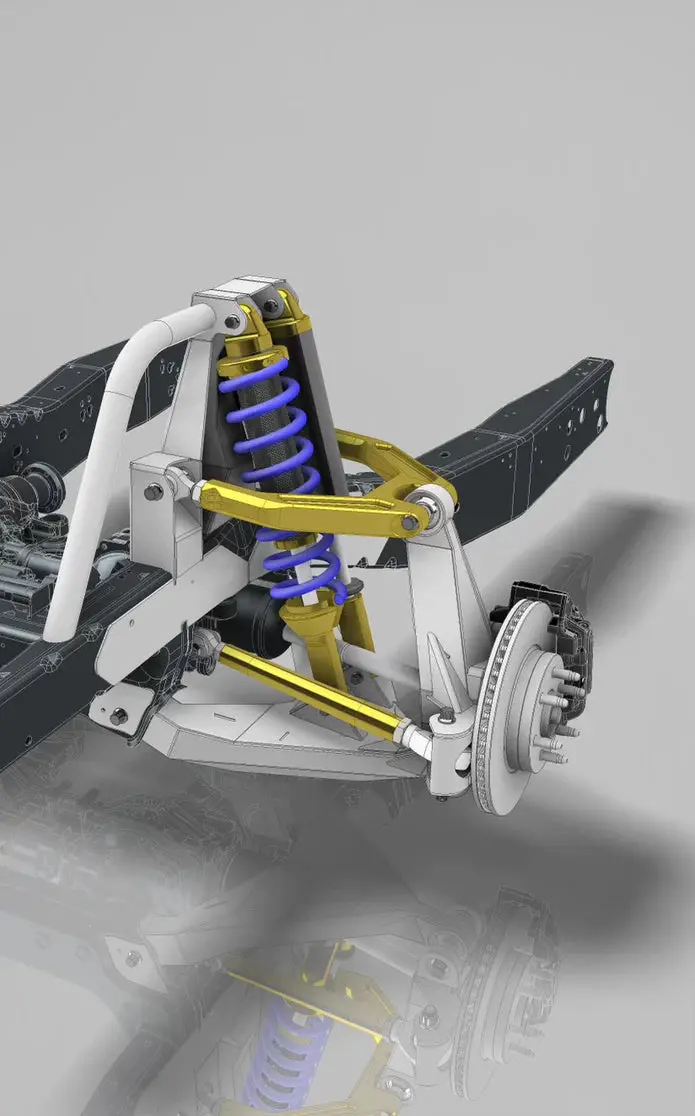

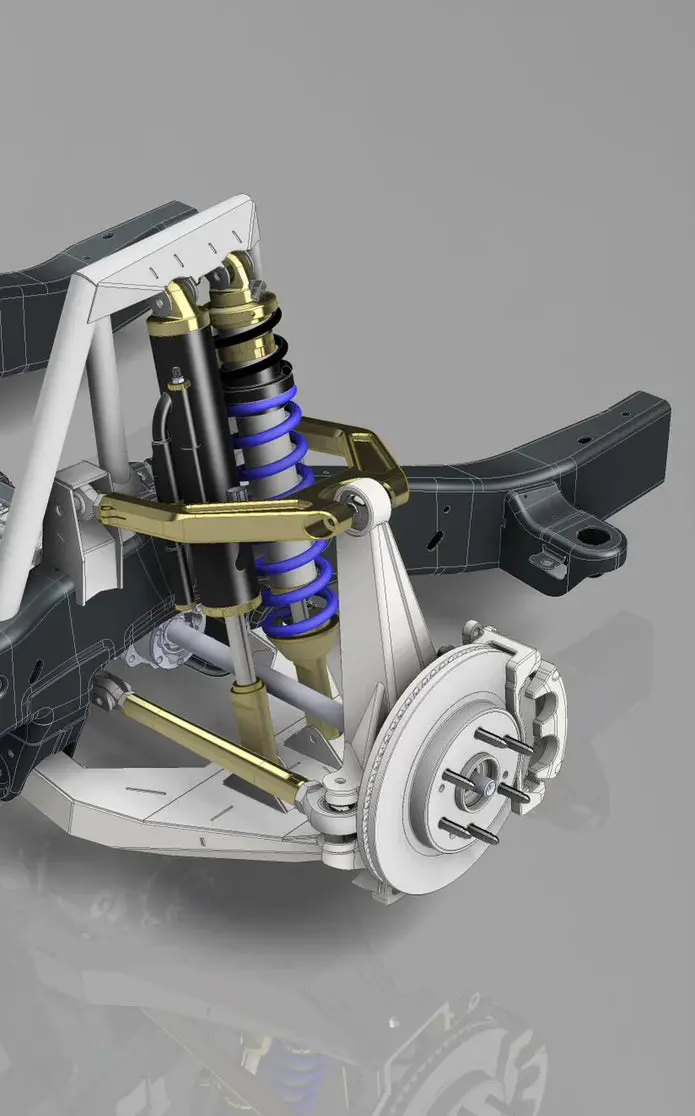

• Blue ZR2 in pictures has the old style kit, new style kit is the CAD model pictures
