CST Adjustable Lift Spindle Kit – 3.5 to 5.5 Inches, Compatible with 2014–2018 Chevrolet and GMC 1500 2WD Trucks, Constructed from Stamped Steel and Cast Aluminum

Description

Description:

2014-18 2WD / 1500 PICK UP & S.U.V. / CSS-C1-13

(Cast-Aluminum OR Stamped Steel O.E. suspensions only)

THIS LIFT SPINDLE KIT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5 INCHES OF LIFT TO THE FRONT OF THE 2014-18 GM/CHEVY 1500 2WD SILVERADO AND SIERRA PICKUPS WITH STEEL O.E. SUSPENSION! WILL ALSO WORK ON 1500 6 LUG SUV w/ STAMPED STEEL OR CAST-ALUM. LCA.

*REAR LIFT & SHOCKS SOLD SEPARATE*

THIS KIT ALLOWS THE INSTALLER THREE HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5” SPINDLES ONLY, SPINDLES AND 1” COILOVER SPACERS FOR A 4.5” LIFT TO CLEAR 33” TIRES OR SPINDLES AND TWO SPACERS FOR A 5.5” LIFT TO CLEAR 35” TIRES! (ON 8-8.5″ WIDE WHEELS)

Kit Features:

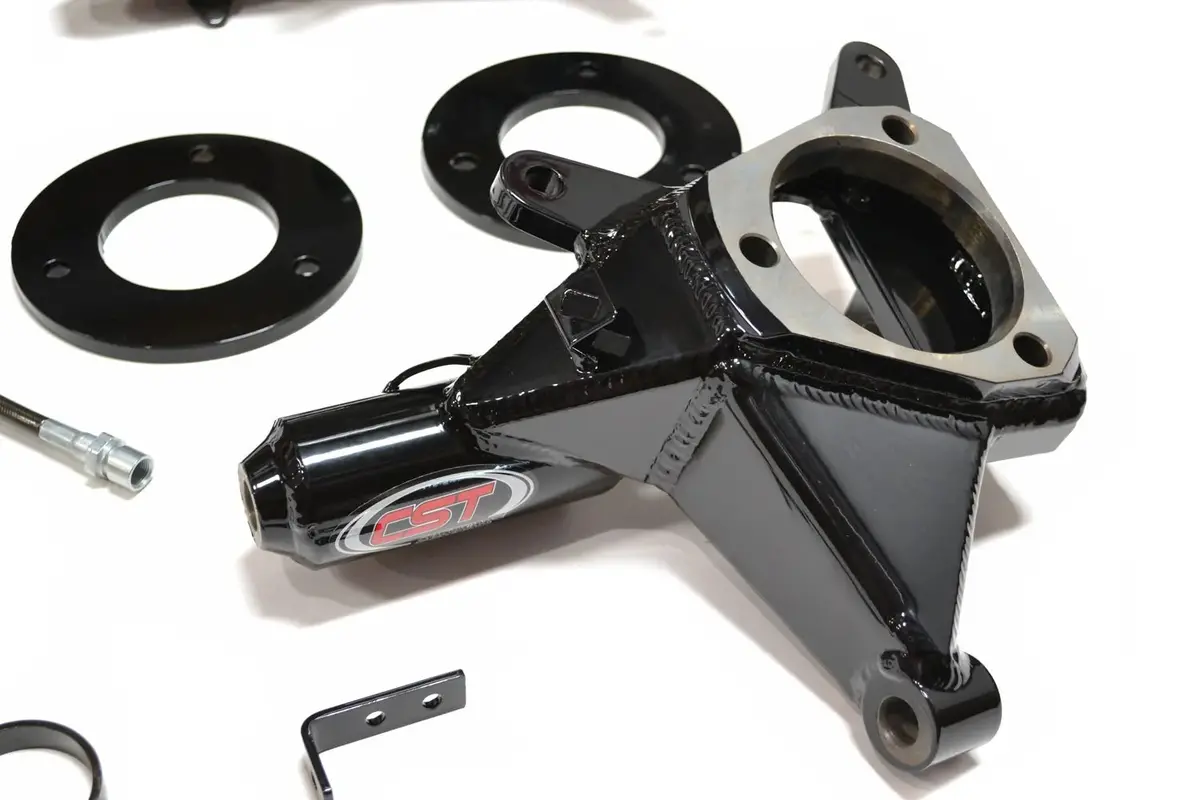

• LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
• ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
• 2 PAIRS OF SPACERS INCLUDED IN THE KIT TO PROVIDE SEVERAL LIFT HEIGHT OPTIONS.
• STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN KIT.
• O.E.M. HANDLING & RIDE QUALITY.
• MINIMAL TRACK-WIDTH CHANGES.
• HIGH GROUND CLEARANCE.
• SELF CONTAINED FRONT KIT.
• ALL 100% MADE IN THE UNITED STATES!
• WILL NOT CAUSE STEERING ISSUES LIKE INFERIOR CHINA-MADE COPIES!

CSS-C1-13 INCLUDES FABRICATED 3.5″ LIFT SPINDLES, 2 SETS OF SPACERS, STEEL BRAIDED BRAKELINES AND NECCESSARY INSTALL HARDWARE. THE CSS-C1-13 SPINDLE LIFT KIT WILL LIFT THE FRONT END ONLY.

ADDITIONAL OPTIONS:

• CSB-C14-3 | 3″ FABRICATED LIFT BLOCKS (PICKUP REAR)
• CSU-C15-10.5 | 10.5″ U-BOLTS (PICKUP REAR)
• CSA-3500 | 2-3″ CST DIRT SERIES 2.5 EXTENDED TRAVEL COIL-OVERS
• CSA-5530 | CST DIRT-SERIES 2.0 REAR SHOCK
• CSA-6530 | CST DIRT-SERIES 2.0 REAR SHOCK w/ RES.
• ADD CST, FOX or KING COILOVERS FOR ADDITIONAL TRAVEL & HEIGHT (see below)

SUGGESTED WHEEL & TIRE SIZES:

• 32” x12.5” OR SIMILAR ON 8” WIDE WHEELS (3.5” LIFT)
• 33” x12.5” OR SIMILAR ON 8-9” WIDE WHEELS (4.5” LIFT)
• 315 / 70 / 17 ON 8 OR 9” WIDE WHEELS (5.5” OF LIFT)
• 35” X12.5” ON 8” WIDE WHEELS (TRIMMING REQUIRED / 5.5” LIFT)
• ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
• MAXIMUM BACKSPACING IS 5”
