CST Stage 1 Suspension Kit for 2007–2018 GM 1500 2WD — 3.5 to 5.5 Inch Lift, Cast Steel Construction

Description

Description:

PART# CSK-G1-1 IS A HIGH-CLEARANCE SPINDLE LIFT KIT THAT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5 INCHES OF LIFT TO THE FRONT & 3 INCHES IN THE REAR. DESIGNED FOR THE 07-18 GM/CHEVY 1500 2WD PICKUP, WITH THE STEEL O.E. SUSPENSION.

*REAR SHOCKS SOLD SEPARATE* (see below)

THIS KIT ALLOWS THE INSTALLER THREE HEIGHT OPTIONS FOR ONE ECONOMIC PRICE. 3.5” SPINDLES ONLY, SPINDLES AND 1” SPACERS FOR A 4.5” LIFT TO CLEAR 33” TIRES OR SPINDLES AND TWO SPACERS FOR A 5.5” LIFT TO CLEAR 35” TIRES! (ON 8.5″ WIDE WHEELS)

CSK-G1-1 KIT FEATURES:

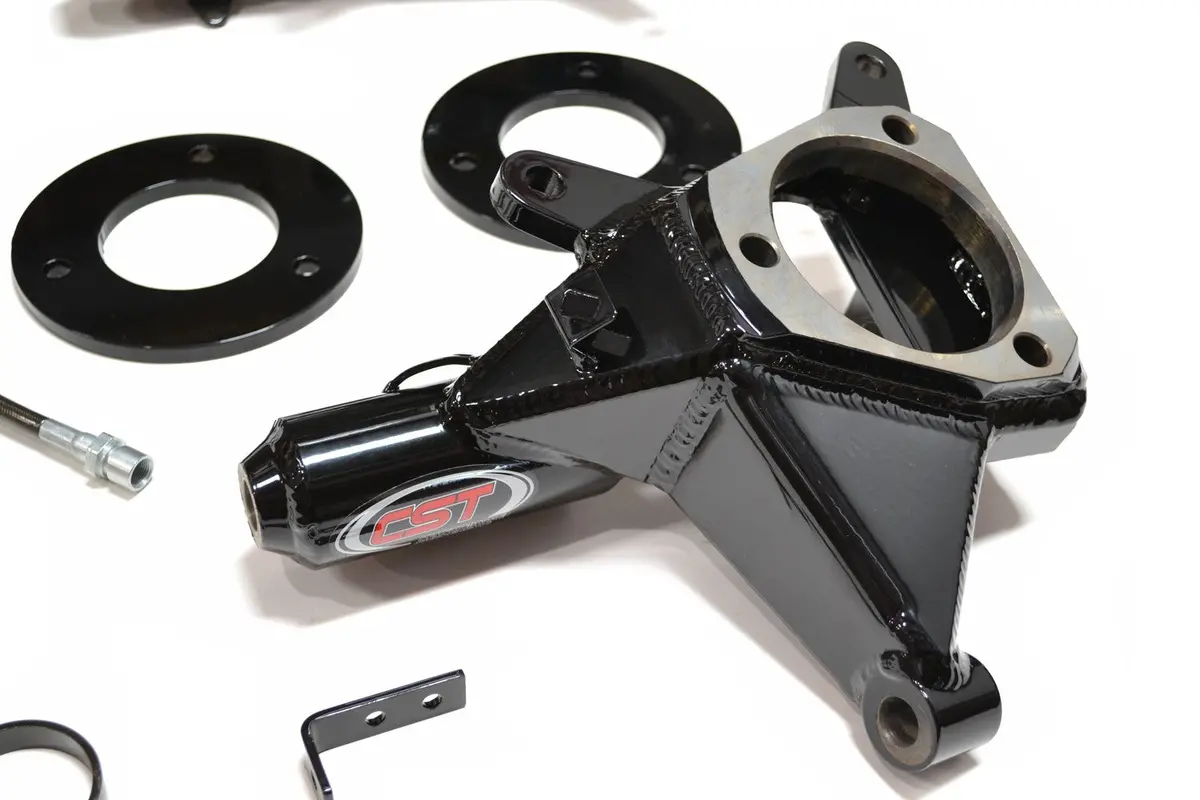

• FABRICATED LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ (& THICKER) STEEL
• CNC MACHINED BALL JOINT TAPERS
• COMPLETELY MIG WELDED.
• ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
• 2 PAIRS OF SPACERS INCLUDED IN THIS KIT TO PROVIDE THREE LIFT HEIGHT OPTIONS.
• STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN THE KIT.
• O.E.M. HANDLING & RIDE QUALITY.
• MINIMAL TRAC-WIDTH CHANGES.
• HIGH GROUND CLEARANCE.
• SELF CONTAINED KIT INCLUDES EVERYTHING NEEDED FOR 3.5-5.5″ LIFT. (SHOCKS SOLD SEPARATE)
• ALL MADE IN THE U.S.A.
• WILL NOT CAUSE STEERING ISSUES LIKE INFERIOR CHINA-MADE COPIES.

SUGGESTED WHEEL & TIRE SIZES:

2007-18 CHEVY / GMC1500

• 32” x12.5” OR SIMILAR ON 8” WIDE WHEELS (3.5” LIFT)
• 33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (4.5” LIFT)
• 315 / 70 / 17 ON 8 OR 9” WIDE WHEELS (5.5” LIFT)
• 35” X12.5” ON 8” WIDE WHEELS (TRIMMING REQUIRED & 5.5” LIFT)
• ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
• MAXIMUM BACKSPACING IS 5”
