KC HiLiTES 6-Inch Daylighter LED Light Bar with Gravity G6 Technology (Single Unit)

Description

Overview:

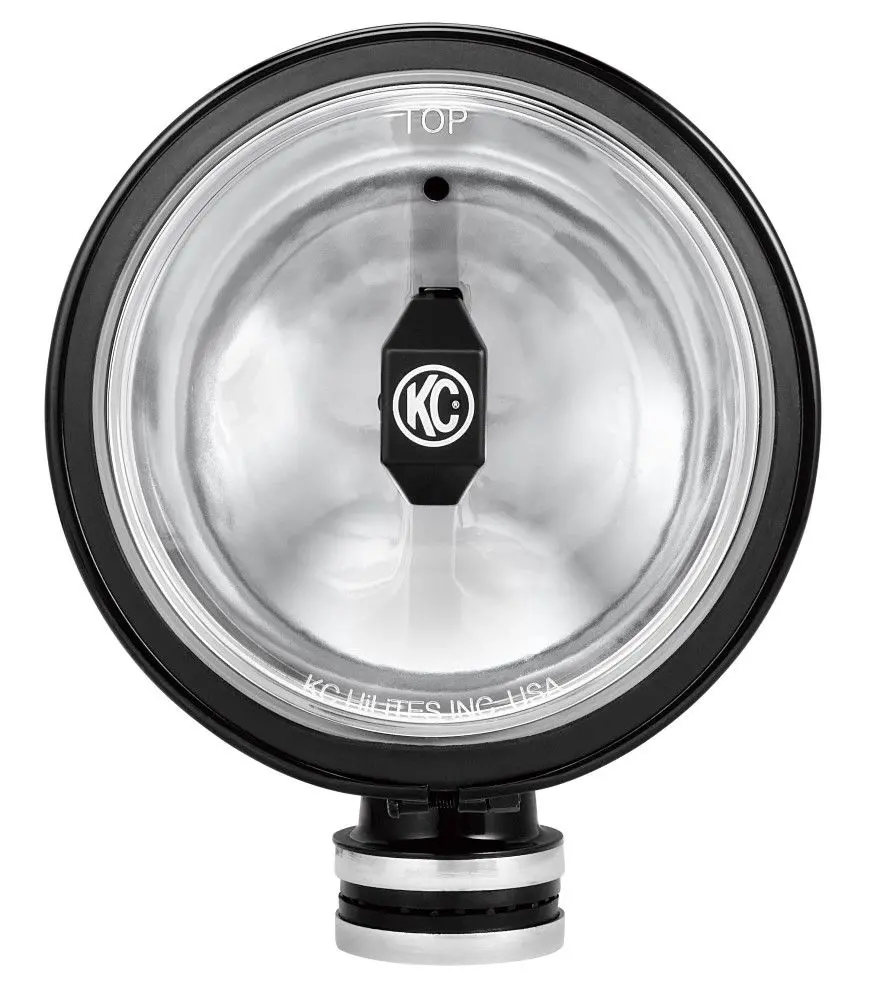

KC Hilites 6″ Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with flexible base for accurate aiming.

Features:

• 20W Gravity® LED G6 optical insert
• Black Powder Coated Steel housing
• Hard Coated Polycarbonate Lens
• Driving Beam Pattern

NOTE: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

Harness & Wiring: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

LIGHT PERFORMANCE (PER LIGHT):

• Raw Lumens: 2,300 lm
• Lux @ 10 Meters: 1,310 lx
• Candela: 131,000 cd
• Beam Distance (Meters): 724m

SPECIFICATIONS (PER LIGHT):

• Wattage: 20W
• LED Source: CREE XPL HD LED
• Amp Draw: 1.63A
• Voltage: 9V-32V
• IP Rating: IP67
• Product Dimensions: W – 6.22″ x H – 8.42″ x D – 5.38″

GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY:

Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Different beam patterns offer advantages depending on your specific lighting needs.
Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION:

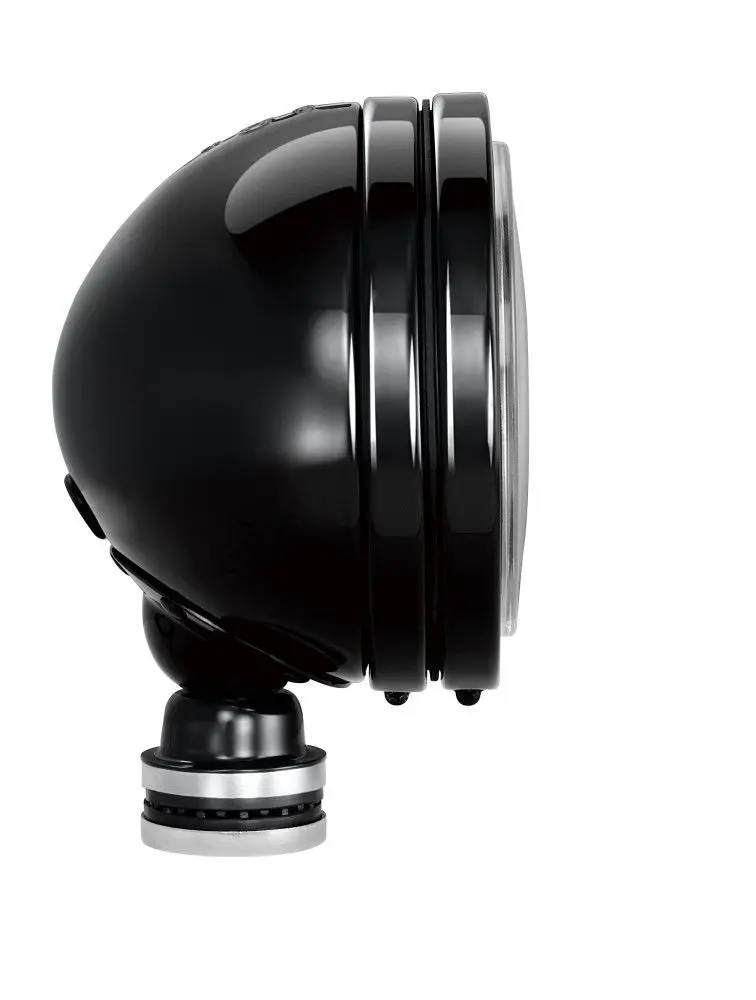

Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY:

The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

Specs:

• Compliance DOT/SAE/ECE: SAE J581, ECE R112 (Driving)
• Light Technology: LED
• Location on Vehicle: A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
• Lumens: 2,300 lm
• Beam Distance: 724 m (Driving) 972m (Spot)
• Total Wattage: 20W
• Voltage: 9V-32V
• Amp Draw: 1.67 a
• Beam Pattern: Driving
• DOT Compliant: No
• SAE/ECE: Yes
• Lens Color: Clear
• Light Color: White
• Product Dimensions: W – 6.22″ x H – 8.42″ x D – 5.38″
• Material: Stainless Steel
• Finish: Black
• Color: Black
• In The Box: Gravity™ LED Daylighter(Black Steel) SAE/ECE Driving Beam Light, 6″ Protective KC Daylighter light Guard, Mounting Hardware
• IP rating: IP67
• Prop 65: No
• Size: 6″
