Description
Overview:

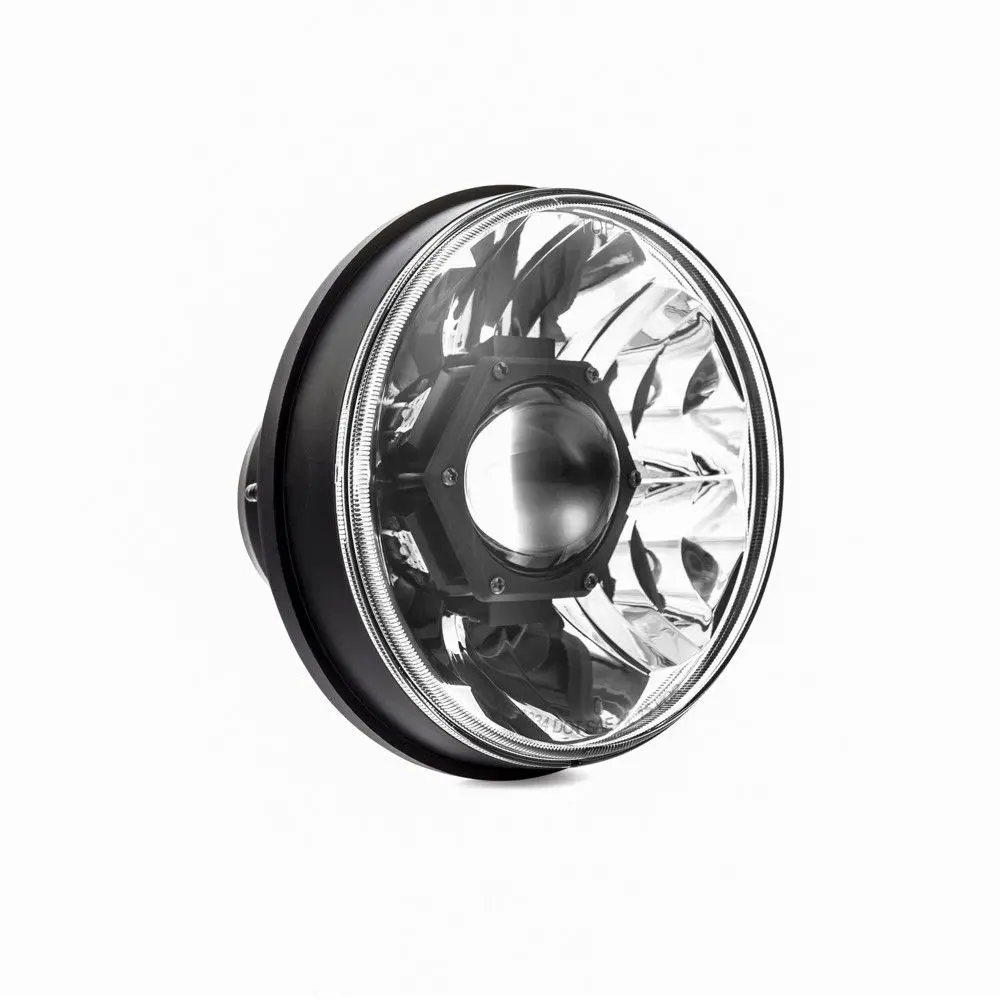

KC’s Gravity LED Pro 7″ Headlight is a DOT compliant Jeep Wrangler JK replacement
Features:
- 40W Patented Gravity Projector Optics (GPO)
- DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
- Hard Coated Polycarbonate Lens
- Precision Die-Cast Aluminum Housing
- Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights
- These lights are sold individually
Note: Lens depth will not fit in certain aftermarket grilles, such as the “Angry Eye”
Harness & Wiring: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.
LIGHT PERFORMANCE:
- Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
- Lux @ 10 Meters: Low- 400 lx, High- 700 lx
- Candela: Low- 40,000 cd, High- 70,000 cd
- Beam Distance: Low- 400m, High- 529m
SPECIFICATIONS:
- Wattage: Low- 20W, High- 30W, DRL- 1.35W
- LED Bulb: CREE: XP HI/XPG2
- Color Temp: 5000K
- Amp Draw: 1.88A
- Voltage: 9V-18V
- IP Rating: IP68
- Product Dimensions: W – 6.96″ x D – 5.098″
GRAVITY LED EXTREME OUTPUT AND EFFICIENCY:
The Gravity LED Pro 7″ headlight uses KC’s newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.
HIGH-PERFORMANCE LED OPTICS:
The Gravity LED Pro 7″ Headlight features KC’s patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.
HIGH/LOW/DRL FUNCTIONS:
High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.
DESIGNED FOR DURABILITY:
Surrounding our high-performance Pro 7″ Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.
Specs:
- Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
- Light Technology: LED
- Location on Vehicle: Headlight
- Lumens: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
- Beam Distance: 529 m
- Total Wattage: 40W
- Voltage: 9V-18V
- Amp Draw: 3.3 a
- Beam Pattern: Driving
- DOT Compliant: Yes
- SAE/ECE: Yes
- Lens Color: Clear
- Light Color: White
- Product Dimensions: W – 6.96″ x D – 5.098″
- Material: Aluminum Alloy
- Finish: Black
- In The Box: Gravity® LED Pro 7″ DOT Jeep JK 07-18 Headlight
- Prop 65: No
- Size: 7″
